Semiconductor manufacturing is one of the most demanding industries in the world. Whether it’s wafer fabrication, thin-film deposition, plasma etching, or ion implantation, every process relies on an extremely controlled environment.

At the center of many semiconductor systems is the vacuum chamber.

A vacuum chamber may look like a simple metal enclosure, but from a manufacturing perspective, it is one of the most challenging components to machine. Even a minor dimensional deviation, surface defect, or contamination issue can compromise vacuum integrity and affect equipment performance.

We’ve seen projects where a microscopic sealing surface defect caused vacuum leakage during testing, resulting in expensive rework and delivery delays. In semiconductor manufacturing, precision is not just about dimensions—it directly affects process stability, yield, and equipment reliability.

In this guide, we’ll explore how semiconductor vacuum chambers are CNC machined, the materials commonly used, key manufacturing challenges, and what equipment manufacturers should look for when selecting a machining supplier.

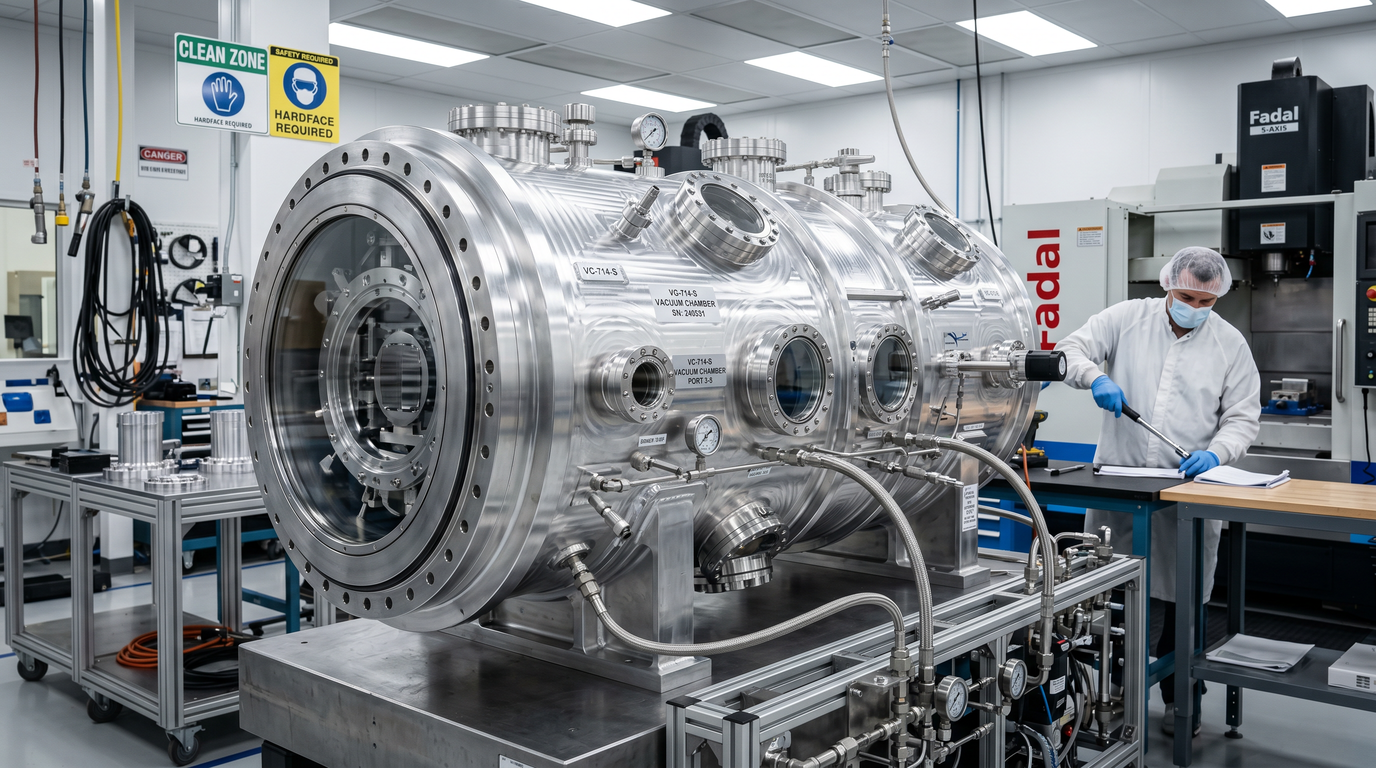

What Is a Semiconductor Vacuum Chamber?

A semiconductor vacuum chamber is a sealed enclosure designed to create and maintain a controlled vacuum environment for semiconductor manufacturing processes.

These chambers isolate wafers and process equipment from atmospheric contamination while enabling precise control of pressure, temperature, and gas composition.

Role in Semiconductor Manufacturing

Vacuum chambers are essential for many semiconductor production processes, including:

• Thin-film deposition
• Plasma etching
• Wafer cleaning
• Ion implantation
• Surface treatment
• Process monitoring

Without a stable vacuum environment, process consistency and wafer quality can be severely affected.

Common Semiconductor Processes

Different types of vacuum chambers are used throughout semiconductor manufacturing.

Each process places different demands on chamber design, surface finish, and material selection.

Why Vacuum Integrity Matters

Vacuum integrity is critical because even minor leakage can introduce contaminants, moisture, or unwanted gases into the process environment.

Potential consequences include:

• Reduced process stability
• Particle contamination
• Equipment downtime
• Yield loss
• Increased maintenance costs

For this reason, semiconductor vacuum chambers require significantly tighter manufacturing standards than conventional industrial components.

Materials Commonly Used for Vacuum Chambers

Material selection directly affects vacuum performance, corrosion resistance, thermal stability, and manufacturing cost.

Aluminum 6061-T6

Aluminum 6061-T6 is one of the most commonly used materials for semiconductor vacuum chambers.

Advantages include:

• Excellent machinability
• Lightweight structure
• Good corrosion resistance
• Competitive material cost
• High dimensional stability

Many medium-sized vacuum chambers are manufactured from 6061-T6 aluminum.

Aluminum 5083

Aluminum 5083 is often selected when lower porosity and improved vacuum performance are required.

Benefits include:

• Better weldability
• Reduced internal porosity
• Improved vacuum compatibility
• Good corrosion resistance

It is frequently used for larger welded vacuum chamber assemblies.

Stainless Steel 304

Stainless Steel 304 offers excellent durability and chemical resistance.

Applications include:

• Process chambers
• Chemical handling equipment
• High-temperature environments

Stainless Steel 316L

316L stainless steel is preferred for more demanding environments where corrosion resistance and cleanliness are critical.

Its low carbon content also improves weld quality and reduces contamination risks.

Titanium

Titanium is generally reserved for specialized semiconductor applications where exceptional corrosion resistance and high strength-to-weight ratios are required.

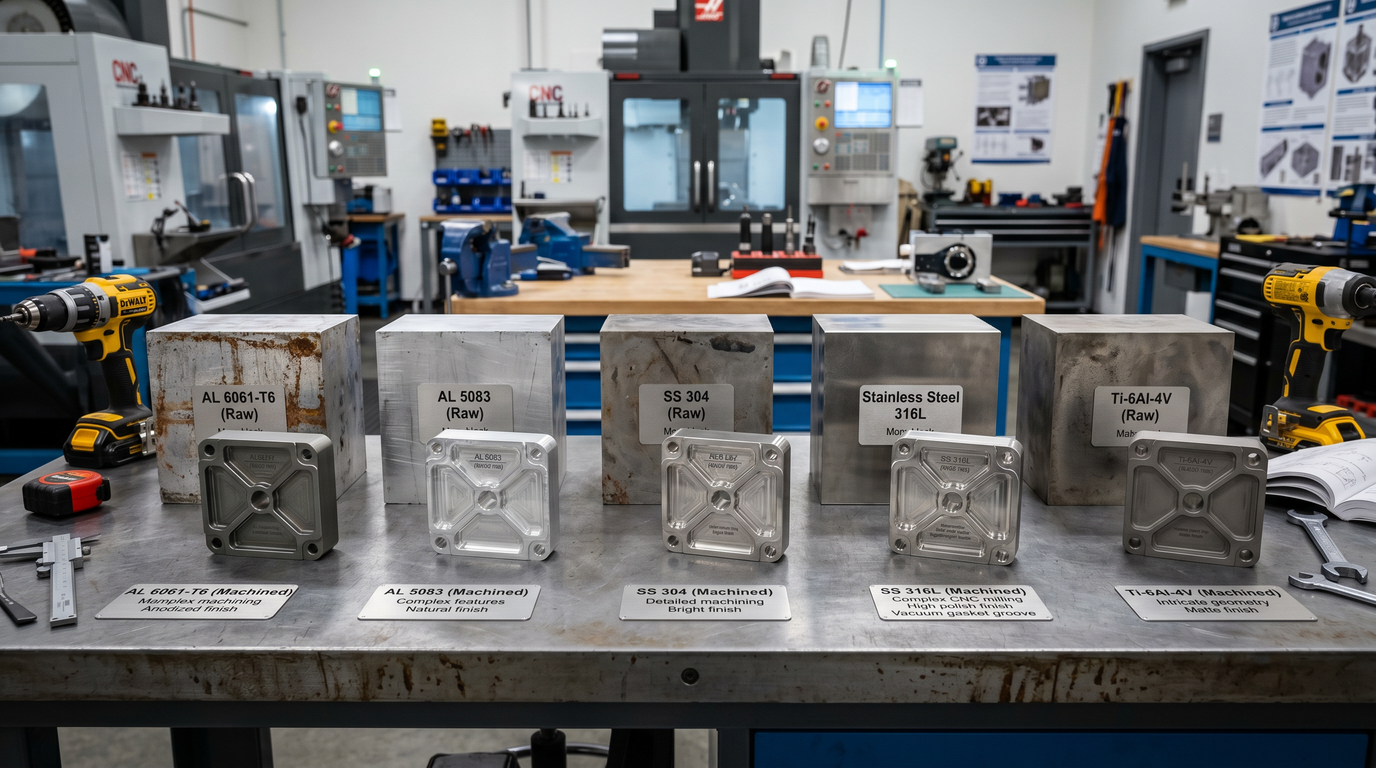

Common Vacuum Chamber Materials Comparison

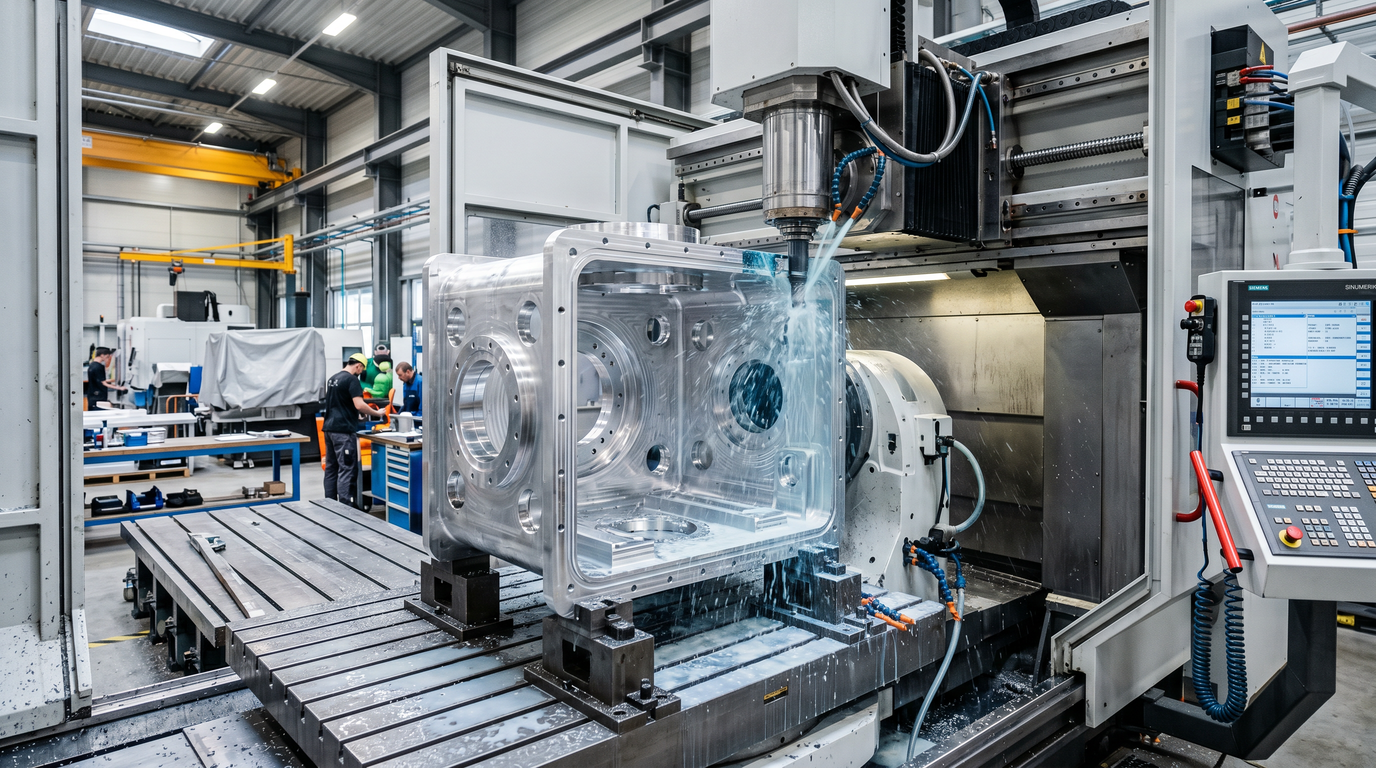

Key CNC Machining Requirements for Vacuum Chambers

Vacuum chamber machining demands far more than simply meeting dimensional tolerances.

Tight Dimensional Tolerances

Critical chamber features often require tolerances ranging from:

• ±0.05 mm
• ±0.02 mm
• ±0.01 mm

depending on sealing requirements and assembly complexity.

Mating surfaces, flange locations, and critical interfaces must be machined with exceptional precision.

Flatness Control

Sealing surfaces represent one of the most critical features of a vacuum chamber.

Even small flatness deviations can compromise sealing effectiveness.

Large vacuum chamber flanges often require carefully controlled machining strategies to maintain flatness across the entire surface.

Concentricity Requirements

Ports, openings, and mating features frequently require tight concentricity control to ensure proper alignment during assembly.

Poor concentricity may result in:

• Assembly issues
• Seal failures
• Increased stress concentrations

Surface Finish Requirements

Surface quality plays a major role in vacuum performance.

Rough surfaces can:

• Trap contaminants
• Increase outgassing
• Complicate cleaning procedures

For many semiconductor applications, smooth and consistent surfaces are required throughout the chamber interior.

Particle-Free Machining

One of the biggest challenges in semiconductor component manufacturing is minimizing particle generation.

Machining processes must be carefully controlled to reduce:

• Burr formation
• Embedded particles
• Surface contamination
• Residual machining debris

Surface Finish Requirements in Semiconductor Applications

Surface finish directly influences vacuum performance and cleanliness.

Standard Machined Finish

A standard machined finish may be acceptable for non-critical external surfaces.

Typical roughness:

Ra 3.2 μm

Fine Machined Surface

Many vacuum-contact surfaces require finer machining.

Typical roughness:

Ra 1.6 μm

or better.

Electropolishing

Electropolishing is commonly used for stainless steel vacuum chambers.

Benefits include:

• Reduced surface roughness
• Improved cleanliness
• Better corrosion resistance

Anodizing

Aluminum vacuum chamber components are often anodized to improve:

• Corrosion resistance
• Wear resistance
• Surface durability

Surface Finish Comparison

How Vacuum Leaks Can Be Caused by Poor Machining

Surface Defects

Scratches, dents, and machining marks can compromise sealing surfaces.

Even minor imperfections may become leak paths under vacuum conditions.

Porosity Issues

Material porosity can allow gases to permeate through chamber walls.

This issue is particularly important when selecting aluminum materials.

Improper Sealing Surfaces

Poor flatness control can prevent proper gasket compression and lead to leakage.

Welding Distortion

Large vacuum chambers often contain welded structures.

Improper welding procedures may introduce distortion that affects sealing surfaces.

Contamination Risks

Machining residues left inside the chamber can contaminate semiconductor processes and affect yield.

Quality Control for Semiconductor Vacuum Chambers

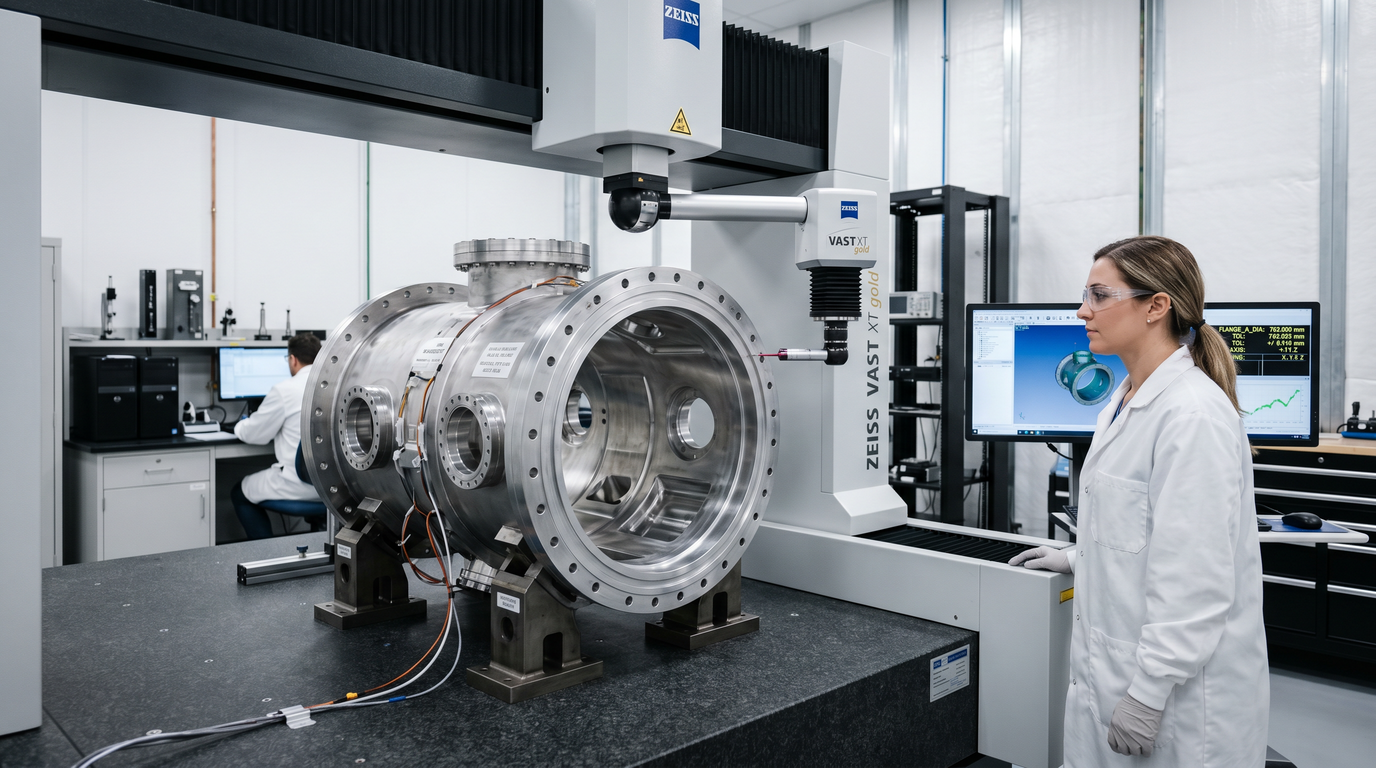

CMM Inspection

Coordinate Measuring Machines (CMMs) verify:

• Critical dimensions
• Flatness
• Position tolerances
• Geometric features

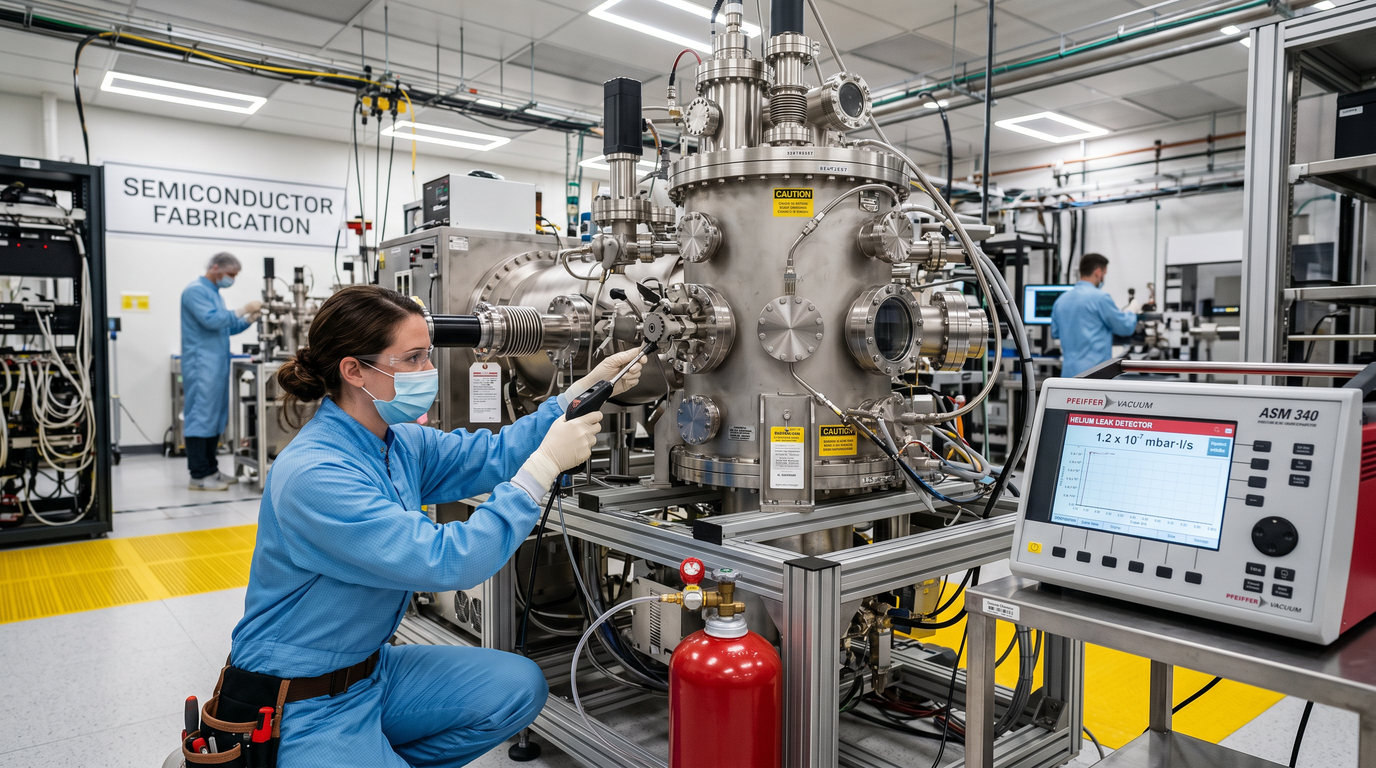

Leak Testing

Vacuum chambers frequently undergo leak testing to verify sealing performance.

Depending on the application, testing methods may include:

• Pressure testing
• Vacuum hold testing
• Helium leak detection

Material Certification

Material certificates confirm:

• Chemical composition
• Mechanical properties
• Traceability

Surface Roughness Measurement

Surface roughness testers verify compliance with specified finish requirements.

Cleaning Procedures

Final cleaning processes are often required before shipment to remove contaminants and machining residues.

Inspection Methods Used for Vacuum Chambers

Challenges in Machining Large Vacuum Chambers

Part Distortion

Material stress can cause dimensional changes during machining.

Thermal Stability

Large components may experience thermal expansion during extended machining cycles.

Machining Time

Large chambers often require:

• Multiple setups
• Extended cycle times
• Large-capacity equipment

Multi-Side Machining

Complex chamber geometries frequently require machining from multiple orientations, increasing setup complexity and inspection requirements.

China vs USA Vacuum Chamber Manufacturing

Cost Comparison

Chinese manufacturers often provide lower overall production costs while maintaining competitive precision capabilities.

Lead Time

Lead times depend on project complexity, but many Chinese suppliers operate highly efficient production systems capable of supporting both prototype and production requirements.

Precision Capability

Modern CNC facilities in China commonly operate:

• 3-axis machining centers
• 4-axis machining centers
• 5-axis machining centers
• Advanced inspection systems

capable of meeting demanding semiconductor requirements.

Engineering Support

The best suppliers provide engineering reviews, DFM recommendations, and manufacturing optimization before production begins.

How to Select a CNC Supplier for Semiconductor Vacuum Chambers

Vacuum Industry Experience

Look for suppliers with experience supporting semiconductor and vacuum equipment manufacturers.

Material Expertise

The supplier should understand the machining behavior of:

• Aluminum 6061
• Aluminum 5083
• Stainless Steel 304
• Stainless Steel 316L
• Titanium

Inspection Capability

Evaluate available inspection equipment and quality systems.

Clean Manufacturing Environment

Clean production practices help reduce contamination risks.

Leak-Test Support

Suppliers capable of supporting leak testing can simplify project management and improve quality assurance.

How Kachi Supports Semiconductor Equipment Manufacturers

At Kachi Precision Manufacturing, we support semiconductor equipment manufacturers with precision CNC machining solutions for complex vacuum chamber components and related assemblies.

Precision CNC Milling

We manufacture high-precision aluminum and stainless steel components with tight dimensional control.

Vacuum Chamber Components

Our team supports the machining of chamber bodies, flanges, mounting structures, and custom vacuum system parts.

Tight Tolerance Machining

We routinely machine precision components requiring strict dimensional and geometric control.

Inspection & Documentation

Comprehensive inspection processes and documentation help ensure consistency throughout production.

Conclusion

Semiconductor vacuum chambers represent some of the most demanding CNC machining projects in modern manufacturing.

Success depends on far more than simply machining a part to print. Material selection, dimensional accuracy, surface finish quality, contamination control, and vacuum integrity all play critical roles in final performance.

For semiconductor equipment manufacturers, choosing a machining partner with strong engineering capabilities, precision inspection systems, and experience with vacuum applications can significantly reduce project risk and improve long-term reliability.

FAQ

What material is best for semiconductor vacuum chambers?

Aluminum 6061-T6, Aluminum 5083, Stainless Steel 304, and Stainless Steel 316L are among the most commonly used materials, depending on vacuum requirements and process conditions.

Why is surface finish important in vacuum chambers?

Surface finish affects cleanliness, outgassing behavior, contamination control, and sealing performance.

What tolerance is required for vacuum chamber machining?

Many critical features require tolerances between ±0.05 mm and ±0.01 mm, depending on application requirements.

How are vacuum chambers leak tested?

Common methods include vacuum hold testing, pressure testing, and helium leak detection.

Can CNC-machined aluminum chambers achieve ultra-high vacuum performance?

Yes. Proper material selection, precision machining, surface treatment, cleaning, and leak testing can enable aluminum chambers to meet demanding vacuum requirements.
