CNC Machining Terms & Definitions Explained (2026 Guide)

Whether you’re an engineer, buyer, product designer, or sourcing manager, CNC machining involves a wide range of technical terms that can sometimes be confusing. Misunderstanding a single term on a drawing, quotation, or inspection report can lead to costly delays, manufacturing errors, and communication issues with suppliers.

If you’ve ever wondered about the difference between CNC milling and turning, what GD&T actually means, or why suppliers keep asking for a STEP file instead of a PDF, this guide is for you.

In this article, we’ll explain the most common CNC machining terms and definitions used throughout the manufacturing process. Understanding these terms will help you communicate more effectively with suppliers, prepare better RFQs, and make more informed engineering decisions.

Basic CNC Machining Terms

CNC (Computer Numerical Control)

CNC stands for Computer Numerical Control. It refers to the use of computer-programmed machine tools to automatically remove material and produce precision parts. CNC technology enables consistent quality, repeatability, and high manufacturing accuracy.

Machining

Machining is a subtractive manufacturing process that removes material from a workpiece using cutting tools. Common machining processes include milling, turning, drilling, and grinding.

Workpiece

A workpiece is the raw material or semi-finished component being machined. It can be made from metal, plastic, or composite materials.

Cutting Tool

A cutting tool is the device that removes material from the workpiece. Examples include end mills, drills, reamers, taps, and inserts.

Toolpath

A toolpath is the programmed route that the cutting tool follows during machining. Toolpath optimization directly affects machining efficiency, cycle time, and surface finish quality.

Fixture

A fixture is a device used to securely hold the workpiece during machining operations. Proper fixturing improves accuracy and repeatability.

Common CNC Machining Processes

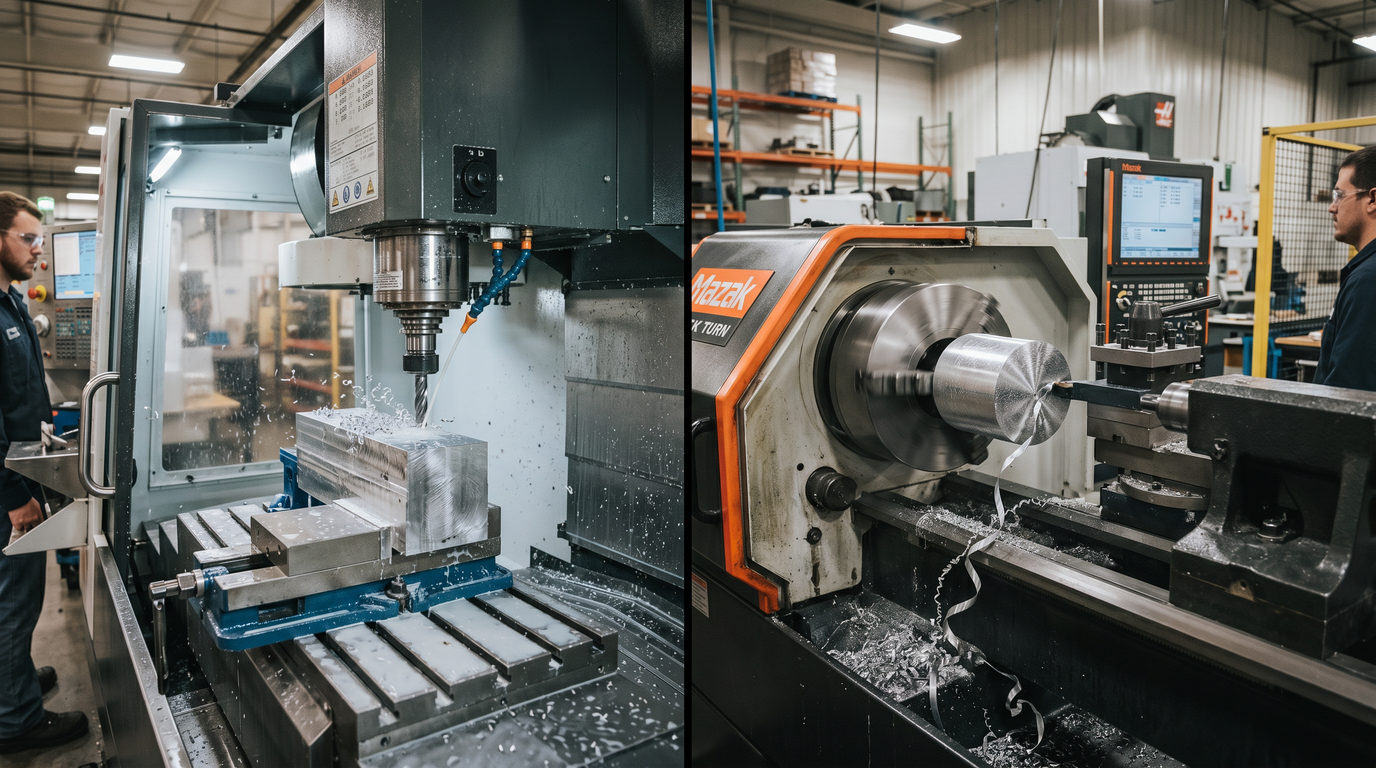

CNC Milling

CNC milling uses rotating cutting tools to remove material from a stationary workpiece. It is one of the most versatile machining processes and is commonly used to produce complex geometries, pockets, slots, and contours.

CNC Turning

CNC turning rotates the workpiece while a cutting tool removes material. This process is ideal for cylindrical or round components such as shafts, bushings, and fittings.

Drilling

Drilling creates round holes using a rotating drill bit. It is often one of the first machining operations performed on a part.

Tapping

Tapping is the process of creating internal threads inside a hole, allowing screws and fasteners to be installed.

Grinding

Grinding uses abrasive wheels to achieve tight tolerances and fine surface finishes. It is commonly used for precision components requiring exceptional dimensional accuracy.

EDM (Electrical Discharge Machining)

EDM removes material using electrical sparks rather than traditional cutting tools. It is especially useful for hard materials and complex internal geometries.

Engineering Drawing Terms

2D Drawing

A 2D drawing contains dimensions, tolerances, notes, and manufacturing requirements for a part. It remains one of the most important documents in CNC machining.

3D CAD Model

A 3D CAD model provides a digital representation of a part’s geometry. Common formats include STEP, IGES, and Parasolid files.

Revision

A revision identifies changes made to a drawing or design file. Proper revision control prevents manufacturing errors and confusion between suppliers and customers.

Bill of Materials (BOM)

A BOM is a detailed list of materials, components, and assemblies required to manufacture a product.

Engineering Change Notice (ECN)

An ECN is a formal document used to communicate design changes during product development or production.

Tolerance & Measurement Terms

Tolerance

Tolerance refers to the allowable variation from a specified dimension. Every manufactured part contains some variation, and tolerance defines the acceptable range.

For example:

50.00 mm ±0.05 mm

means the actual dimension may vary between 49.95 mm and 50.05 mm.

Dimensional Tolerance

Dimensional tolerance controls the size of features such as holes, lengths, diameters, and thicknesses.

Geometric Tolerance

Geometric tolerance controls the shape, orientation, and position of features rather than their size.

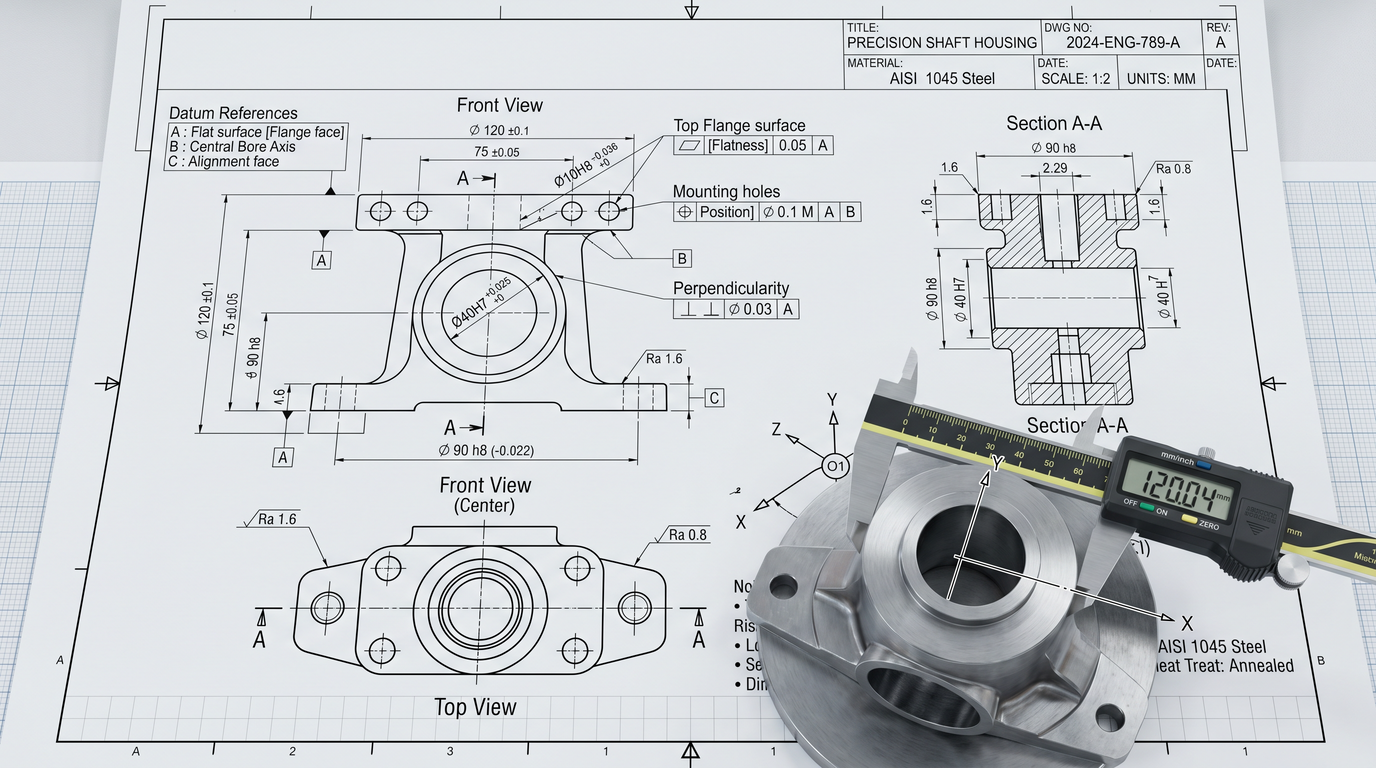

GD&T (Geometric Dimensioning and Tolerancing)

GD&T is an engineering language that uses symbols to define allowable variation in form, orientation, location, and runout. It helps improve design clarity and manufacturing consistency.

Flatness

Flatness controls how much a surface can deviate from a perfectly flat plane.

Parallelism

Parallelism defines how closely one surface or axis must remain parallel to another reference feature.

Position Tolerance

Position tolerance controls the exact location of holes, slots, and other features relative to reference datums.

Runout

Runout measures how much a rotating feature deviates from its intended axis of rotation.

Surface Finish Terms

Surface Roughness

Surface roughness describes the microscopic texture of a machined surface. It directly affects appearance, wear resistance, sealing performance, and functionality.

Ra Value

Ra is the most commonly used surface roughness measurement. Lower Ra values indicate smoother surfaces.

Typical examples include:

• Ra 3.2 μm: Standard machined finish
• Ra 1.6 μm: Fine machining
• Ra 0.8 μm: Precision finish

As-Machined Finish

An as-machined finish refers to a surface condition immediately after machining without additional finishing processes.

Polishing

Polishing improves surface smoothness and appearance by removing fine surface imperfections.

Bead Blasting

Bead blasting creates a uniform matte surface finish using small abrasive media.

Anodizing

Anodizing is an electrochemical process commonly applied to aluminum parts to improve corrosion resistance and appearance.

Material-Related Terms

Aluminum 6061

6061 aluminum is one of the most commonly machined materials due to its excellent machinability, corrosion resistance, and cost-effectiveness.

Stainless Steel 304

304 stainless steel offers excellent corrosion resistance and is widely used in industrial, medical, and food-processing applications.

Titanium

Titanium provides exceptional strength-to-weight performance and corrosion resistance, making it popular in aerospace and medical industries.

Engineering Plastics

Engineering plastics such as POM, PEEK, Nylon, and PTFE are commonly used for lightweight and wear-resistant components.

Material Certification

A material certification verifies the chemical composition and mechanical properties of a material, ensuring compliance with project requirements.

Production & Cost Terms

Prototype

A prototype is an early version of a part used for testing, validation, and design verification.

Low-Volume Production

Low-volume production typically refers to manufacturing quantities ranging from tens to several thousand parts.

Mass Production

Mass production involves manufacturing large quantities of parts using optimized processes to reduce cost per unit.

Lead Time

Lead time refers to the total time required to manufacture and deliver a part after an order is placed.

MOQ (Minimum Order Quantity)

MOQ is the minimum number of units a supplier is willing to produce in a single order.

Cost Per Part

Cost per part represents the total manufacturing cost divided by the quantity produced.

Quality Control Terms

IQC (Incoming Quality Control)

IQC involves inspecting raw materials and purchased components before they enter production.

IPQC (In-Process Quality Control)

IPQC inspections occur during manufacturing to identify and correct issues before production continues.

FQC (Final Quality Control)

FQC verifies finished products before packaging and shipment.

OQC (Outgoing Quality Control)

OQC is the final inspection conducted before products leave the factory.

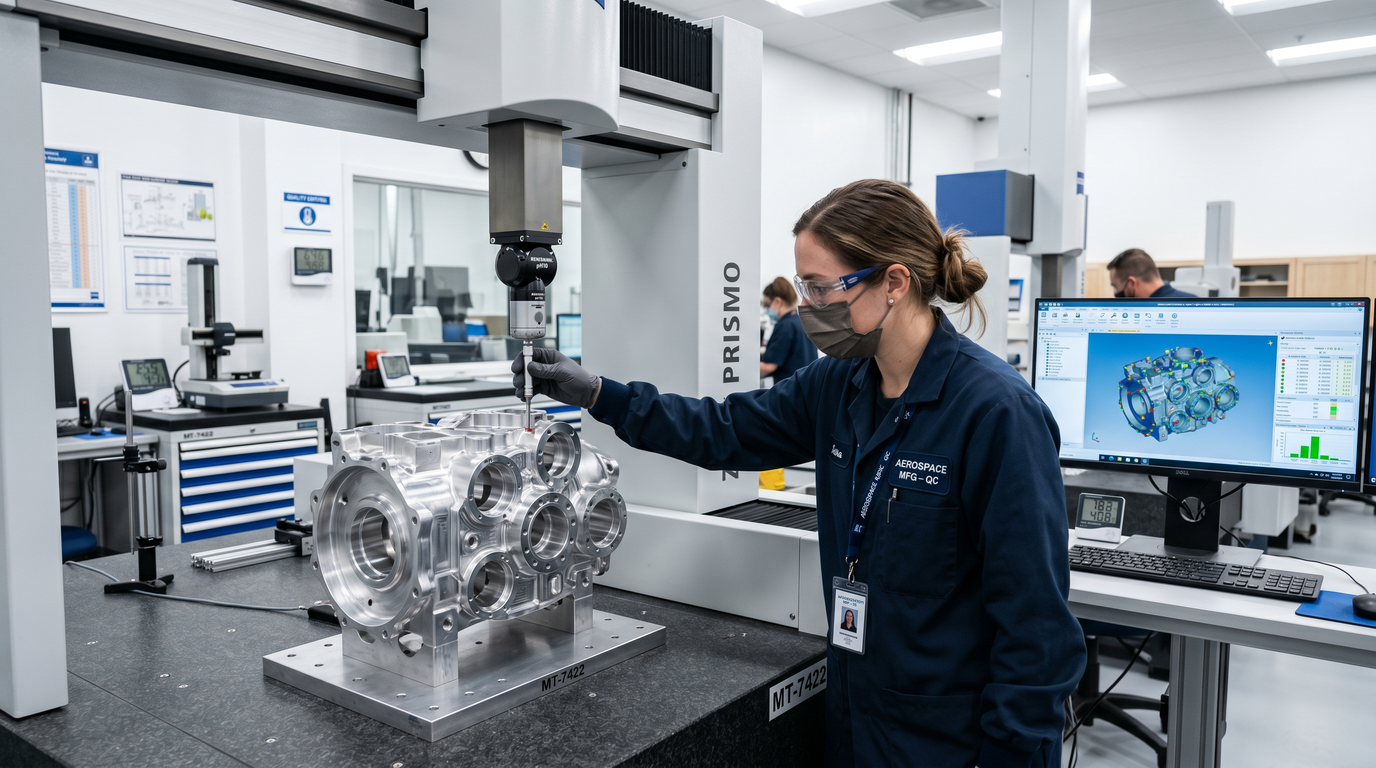

CMM Inspection

A Coordinate Measuring Machine (CMM) uses precision probes to verify critical dimensions and geometric tolerances.

First Article Inspection (FAI)

FAI is a comprehensive inspection of the first manufactured part to confirm compliance with design specifications before full production begins.

RFQ & Supplier Terms

RFQ (Request for Quotation)

An RFQ is a formal request sent to suppliers asking for pricing, lead time, and manufacturing information.

DFM (Design for Manufacturability)

DFM is the process of optimizing a design to reduce manufacturing complexity, cost, and production risk.

NDA (Non-Disclosure Agreement)

An NDA is a legal agreement that protects confidential information shared between customers and suppliers.

OEM (Original Equipment Manufacturer)

An OEM designs and sells products that may be manufactured internally or outsourced to suppliers.

Contract Manufacturing

Contract manufacturing refers to outsourcing production to a third-party manufacturer.

Most Common CNC Machining Acronyms

Why Understanding CNC Terms Matters

Better RFQs

Understanding CNC terminology allows buyers to provide clearer requirements and receive more accurate quotations.

Fewer Communication Errors

Misunderstood technical terms often lead to costly production delays and quality issues.

Faster Quoting

When drawings, tolerances, and requirements are clearly communicated, suppliers can provide faster and more accurate quotes.

Lower Manufacturing Risks

A strong understanding of manufacturing terminology helps reduce design mistakes and sourcing risks.

Conclusion

CNC machining terminology can seem overwhelming at first, but understanding these terms creates a stronger foundation for successful manufacturing projects. Whether you’re sourcing prototype parts, managing production programs, or communicating with suppliers, knowing the language of CNC machining helps improve efficiency, reduce misunderstandings, and achieve better results.

As manufacturing technologies continue to evolve, buyers and engineers who understand machining terminology will be better equipped to make informed decisions and build stronger supplier relationships.

FAQ

What is the most important CNC machining term to understand?

Tolerance is one of the most important concepts because it directly affects manufacturing cost, quality, and functionality.

What does GD&T mean in machining?

GD&T stands for Geometric Dimensioning and Tolerancing, a system used to define allowable variation in part geometry.

What is the difference between CNC milling and turning?

Milling rotates the cutting tool while the workpiece remains stationary. Turning rotates the workpiece while the cutting tool remains relatively fixed.

What is surface roughness?

Surface roughness describes the microscopic texture of a machined surface and is commonly measured using Ra values.

Why do CNC suppliers use so many acronyms?

Manufacturing involves complex technical processes, and acronyms help engineers communicate information quickly and consistently.
