A CNC machining project can fail long before the machine starts cutting material.

In many cases, the problem begins with the CAD file itself.

Engineers often focus heavily on tolerances, materials, and geometry while overlooking something much simpler: file format compatibility. But in real manufacturing environments, the wrong CAD format can create translation errors, missing surfaces, broken geometry, delayed quotations, and even machining defects.

This becomes especially critical when projects move between different CAD and CAM systems.

A design created in SolidWorks may eventually be opened in Mastercam, Fusion 360, Siemens NX, HyperMill, or another CAM platform. If the file format does not transfer cleanly, the machinist may spend hours repairing surfaces or rebuilding geometry before programming can even begin.

That is why experienced engineering teams treat CAD file preparation as part of the manufacturing process — not just a design task.

In 2026, global CNC workflows are becoming more connected, more automated, and more dependent on clean digital manufacturing data. Choosing the right CAD format now directly affects:

• Quotation speed
• CAM programming efficiency
• Machining accuracy
• Lead time stability
• Manufacturing cost

This guide explains which CAD file formats work best for CNC machining, why some formats create production risks, and how engineers can prepare cleaner RFQ packages for suppliers.

Why CAD File Formats Matter in CNC Machining

CAD Files Are the Starting Point of Manufacturing

Before a CNC machine generates toolpaths, every project begins with digital geometry.

The CAD file defines:

• Part dimensions
• Surface geometry
• Hole locations
• Edge conditions
• Assemblies
• Manufacturing intent

If geometry transfers incorrectly between software platforms, downstream problems appear quickly.

A small surface gap or corrupted feature may cause:

• CAM import failures
• Broken toolpaths
• Incorrect machining geometry
• Reprogramming delays
• Scrap risk

For precision machining projects, even minor translation issues can create major production problems.

Different CAD Systems Do Not Always Communicate Perfectly

Modern manufacturing involves many different software ecosystems.

A customer may design a part in:

• SolidWorks
• CATIA
• Creo
• Fusion 360
• Siemens NX
• Inventor

But the machining supplier may use entirely different CAM software.

Neutral file formats exist because native CAD files are not always universally compatible.

Without proper file conversion, important data may be lost during transfer, including:

• Solid body integrity
• Surface continuity
• PMI data
• GD&T information
• Assembly references

This is one reason why experienced CNC suppliers often request STEP files even when native files are available.

Best CAD File Formats for CNC Machining

STEP (.STEP / .STP)

STEP is widely considered the industry standard for CNC machining.

Most professional CNC suppliers prefer STEP because it preserves solid geometry accurately while maintaining compatibility across nearly all CAD and CAM systems.

STEP files are especially effective for:

• Precision CNC machining
• Multi-axis machining
• Assembly transfer
• Cross-platform manufacturing workflows

Advantages of STEP:

• Excellent geometry accuracy
• High compatibility
• Stable solid model transfer
• Supports complex surfaces
• Reduces translation errors

STEP AP242 versions also support PMI and model-based definition workflows in advanced manufacturing environments.

For most RFQs, STEP should be the default export format.

IGES (.IGS / .IGES)

IGES is older than STEP but still commonly used in machining workflows.

It performs reasonably well for:

• Surface models
• Legacy CAM systems
• Simpler geometry exchange

However, IGES often creates more geometry repair work compared to STEP.

Common issues include:

• Open surfaces
• Missing topology
• Surface stitching problems
• Loss of assembly structure

Today, IGES is usually treated as a backup format rather than the preferred choice.

Parasolid (.X_T / .X_B)

Parasolid formats are highly accurate because many CAD systems use the Parasolid kernel internally.

These files often transfer geometry exceptionally well between compatible systems.

Advantages include:

• Excellent solid integrity
• High precision
• Minimal translation loss

However, compatibility is not as universal as STEP.

Some suppliers strongly prefer Parasolid files for complex machining projects involving advanced surfacing.

Native CAD Files

Native CAD formats preserve the highest level of design intelligence, including:

• Parametric history
• Feature trees
• Configurations
• Metadata

However, native files are software-dependent.

If the supplier uses different CAD software, compatibility issues may appear quickly.

This is why most OEMs still include neutral formats alongside native files.

DXF & DWG

DXF and DWG are mainly used for:

• 2D machining
• Laser cutting
• Waterjet cutting
• Sheet metal profiles
• Router operations

These formats work well for flat geometry but are usually insufficient for complex 3D CNC machining.

STL Files

STL is commonly associated with 3D printing rather than CNC machining.

STL files represent geometry using triangular meshes instead of true solid surfaces.

This creates several problems for precision machining:

• Faceted geometry
• Poor edge definition
• No parametric information
• Difficult feature recognition

Many machinists consider STL unsuitable for precision CNC work unless no other geometry exists.

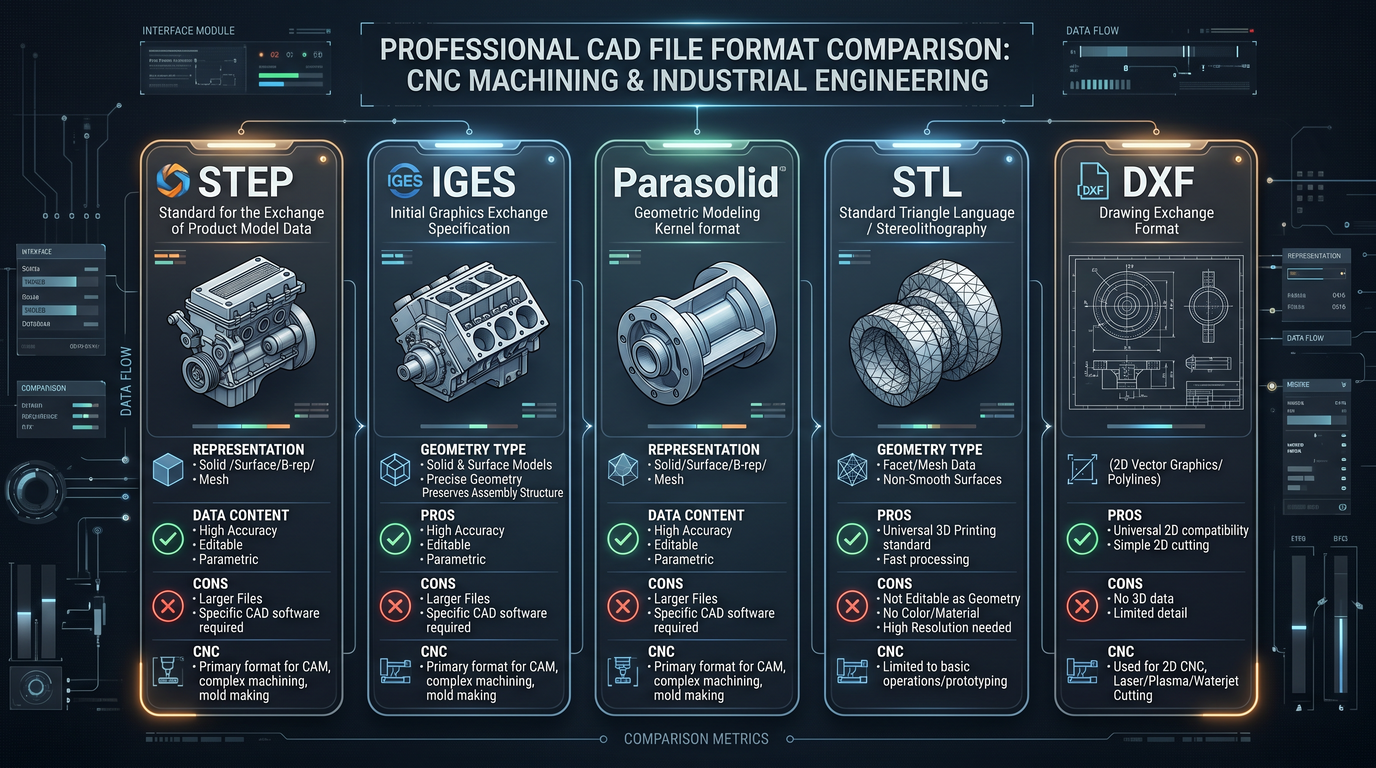

CAD File Format Comparison Chart

Why STEP Files Are Preferred by CNC Suppliers

Better CAM Compatibility

Most modern CAM systems import STEP reliably.

This reduces:

• Import failures
• Geometry repair work
• Programming delays
• Toolpath instability

Cleaner Solid Models

STEP preserves solid body integrity much better than mesh-based formats.

For machinists, clean solids mean:

• Faster programming
• Better toolpath generation
• Lower machining risk

Reduced RFQ Delays

Many quotation delays happen because suppliers must request new files.

Poor geometry often forces engineering teams to resend:

• Repaired models
• Alternate formats
• Missing drawings

Sending STEP files initially usually speeds up quotation significantly.

Common CAD File Mistakes in CNC RFQs

Sending STL Instead of Solid Models

This is one of the most common RFQ mistakes.

Mesh files may look visually correct but create major CAM programming problems.

Missing 2D Drawings

A 3D model alone is often insufficient.

Critical information may still require 2D documentation, including:

• Tolerances
• Surface finish
• Thread specifications
• GD&T callouts
• Material notes

Broken or Open Surfaces

Corrupted geometry can prevent successful CAM import.

Suppliers may need to manually repair models before machining begins.

Incorrect Units

Metric-to-inch conversion mistakes still happen frequently.

Always verify export units before sending files.

What Engineers Should Include in a CNC RFQ Package

How CAD File Quality Affects CNC Machining Cost

Poor Files Increase Engineering Time

Suppliers often spend significant engineering hours repairing customer models.

This increases:

• Quotation lead time
• CAM programming time
• Manufacturing overhead

Geometry Errors Increase Machining Risk

Broken geometry increases the risk of:

• Incorrect toolpaths
• Surface mismatch
• Feature errors
• Scrap parts

Complex repairs may also reduce machining efficiency.

Clean Models Improve Production Speed

Well-prepared CAD data allows suppliers to:

• Program faster
• Validate geometry faster
• Reduce setup time
• Improve scheduling efficiency

In production manufacturing, cleaner digital workflows often translate directly into lower total cost.

Future Trends in CNC CAD Data Exchange

The manufacturing industry is gradually moving toward model-based manufacturing systems.

New workflows increasingly integrate:

• PMI data
• Embedded GD&T
• Digital inspection
• Automated CAM programming
• Smart manufacturing systems

STEP AP242 is becoming more important because it supports richer manufacturing data exchange beyond simple geometry.

As digital manufacturing evolves, clean CAD data will become even more critical.

Conclusion

The best CAD file format for CNC machining is usually STEP.

It offers the best balance of:

• Geometry accuracy
• CAM compatibility
• Manufacturing reliability
• Cross-platform stability

However, successful machining depends on more than file extension alone.

Clean geometry, complete RFQ documentation, correct tolerances, and strong communication all play major roles in production success.

Experienced engineering teams understand that CAD preparation is not just a design activity.

It is part of manufacturing itself.
