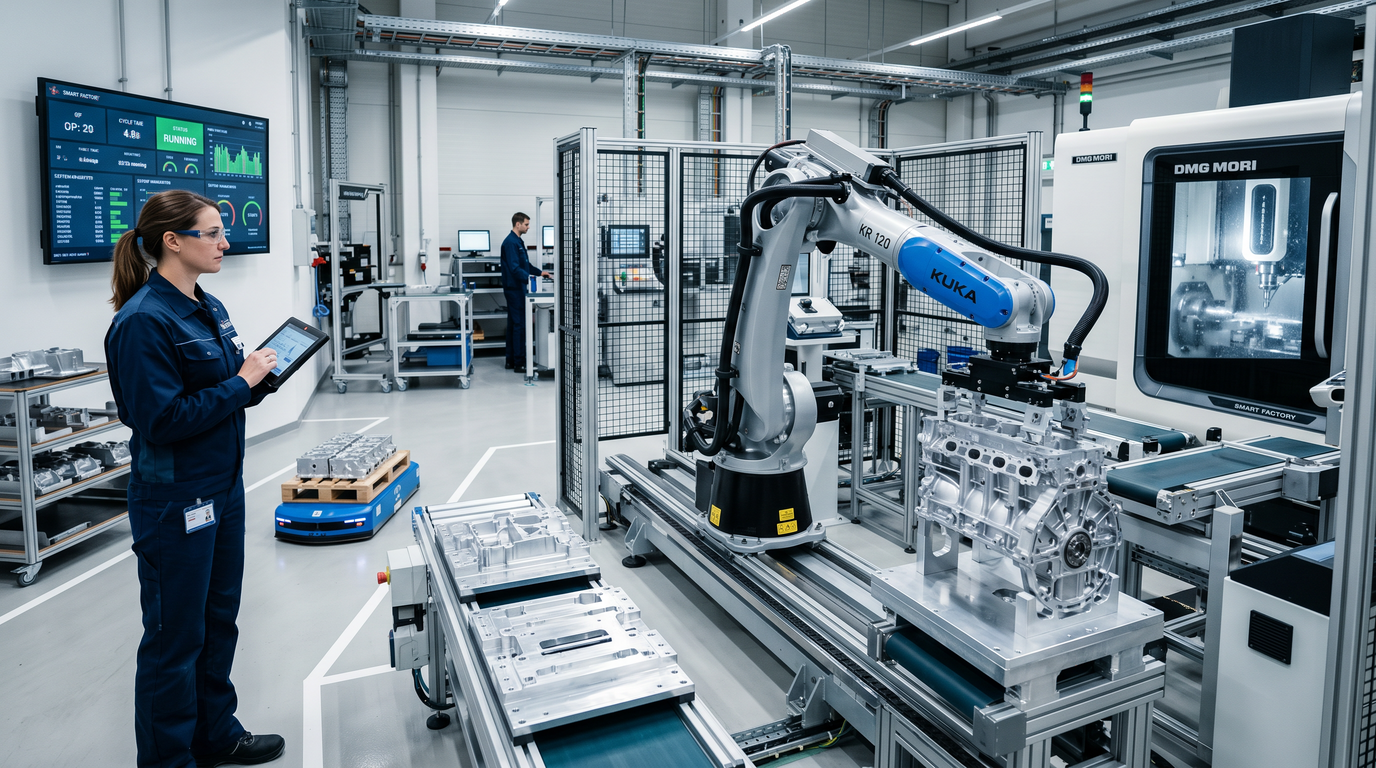

The rapid growth of Industry 4.0, smart manufacturing, and factory automation has significantly increased global demand for robotic arms and industrial automation systems. From collaborative robots (cobots) and automated assembly lines to semiconductor equipment and intelligent production cells, precision mechanical components remain the foundation of reliable automation.
Behind every robotic system are numerous high-precision parts that must operate continuously with exceptional accuracy, repeatability, and durability. Even minor dimensional deviations can lead to positioning errors, vibration, premature wear, or complete system failure.
This is why CNC machining for robotic arms and automation systems has become an essential manufacturing process across modern industries.
At Kachi Precision Manufacturing, we support customers in robotics, industrial automation, semiconductor equipment, and intelligent manufacturing with precision CNC machining solutions from prototype development to full production.
In this guide, we’ll explore how CNC machining supports robotic manufacturing, common robotic components, material selection, tolerance requirements, and how to choose the right CNC machining supplier for automation projects.
Why CNC Machining Is Critical for Robotics Manufacturing
Industrial robots and automation equipment require components that combine precision, strength, durability, and repeatability. CNC machining remains one of the few manufacturing processes capable of consistently meeting these demanding requirements.
High Precision and Repeatability
Robotic systems rely heavily on precise motion control.
Joint assemblies, servo systems, and linear motion components must repeatedly position themselves with minimal deviation. A small dimensional error in a gearbox housing or motor mount can negatively affect the entire system’s performance.
Precision CNC machining for robotic arms enables manufacturers to achieve tolerances as tight as:
±0.01 mm
±0.02 mm
±0.005 mm for critical features
Consistent dimensional accuracy ensures smooth movement, precise positioning, and long-term operational stability.
Complex Geometries
Modern robotic components often feature complex geometries that cannot be efficiently produced using traditional manufacturing methods.
Examples include:
Lightweight structural pockets
Multi-surface mounting interfaces
Integrated cable routing channels
Precision bearing seats
Complex sensor mounting features
Advanced 3-axis, 4-axis, and 5-axis CNC machining technologies allow these features to be manufactured with high precision while minimizing setups.
Lightweight Yet Strong Components
Weight reduction is a critical design objective in robotics.
Lighter robotic arms consume less energy, move faster, and improve payload efficiency.
CNC machining allows engineers to remove unnecessary material while maintaining structural rigidity through optimized designs.

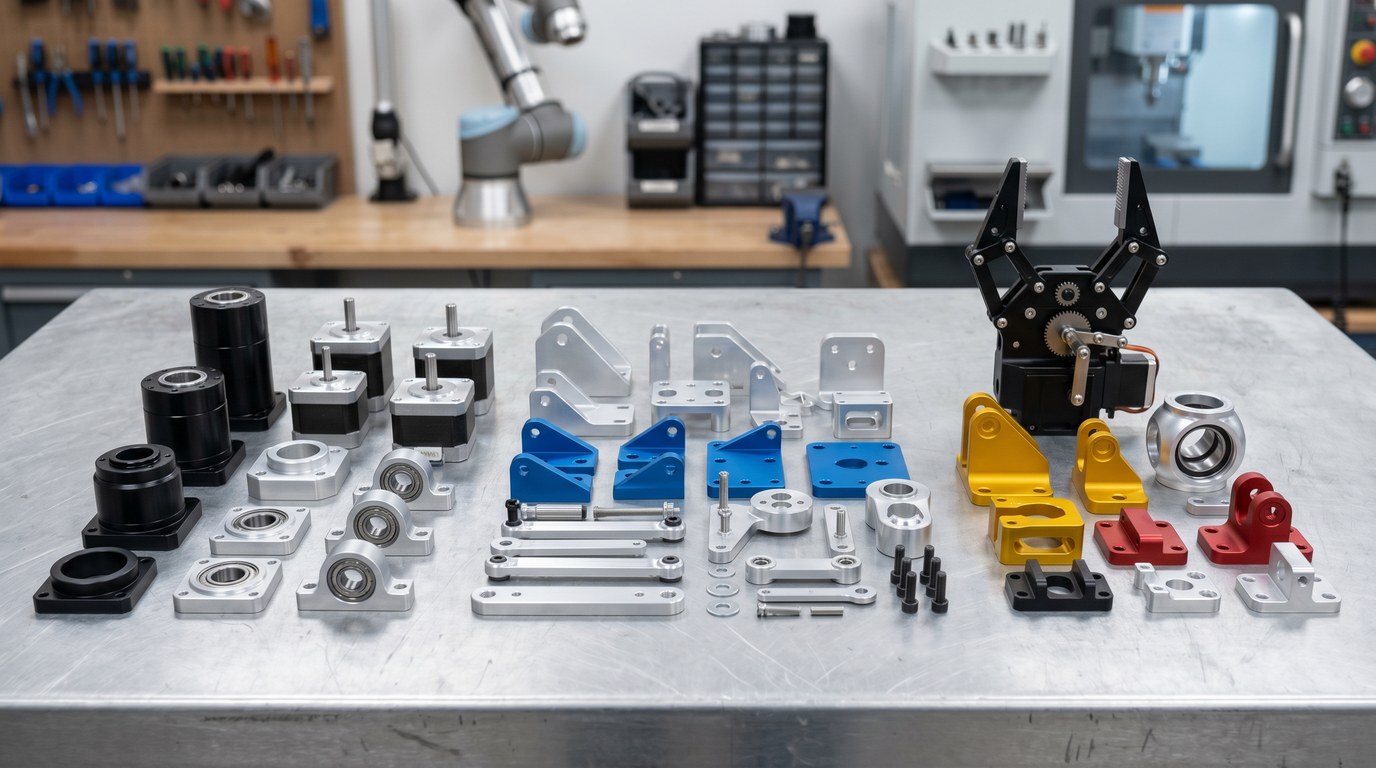

Common CNC Machined Parts in Robotic Arms
Robotic systems contain numerous precision-machined components.
The following table summarizes the most common CNC machined parts for robotic arms.
| Component | Primary Function |
|---|---|
| Joint Housings | Support rotational movement |
| Servo Motor Mounts | Secure servo motors |
| End Effectors | Interact with workpieces |
| Gearbox Components | Transfer motion and torque |
| Bearing Seats | Ensure rotational accuracy |
| Linear Motion Components | Guide precise movement |
| Sensor Brackets | Mount sensors and cameras |
| Base Structures | Support the entire robot |

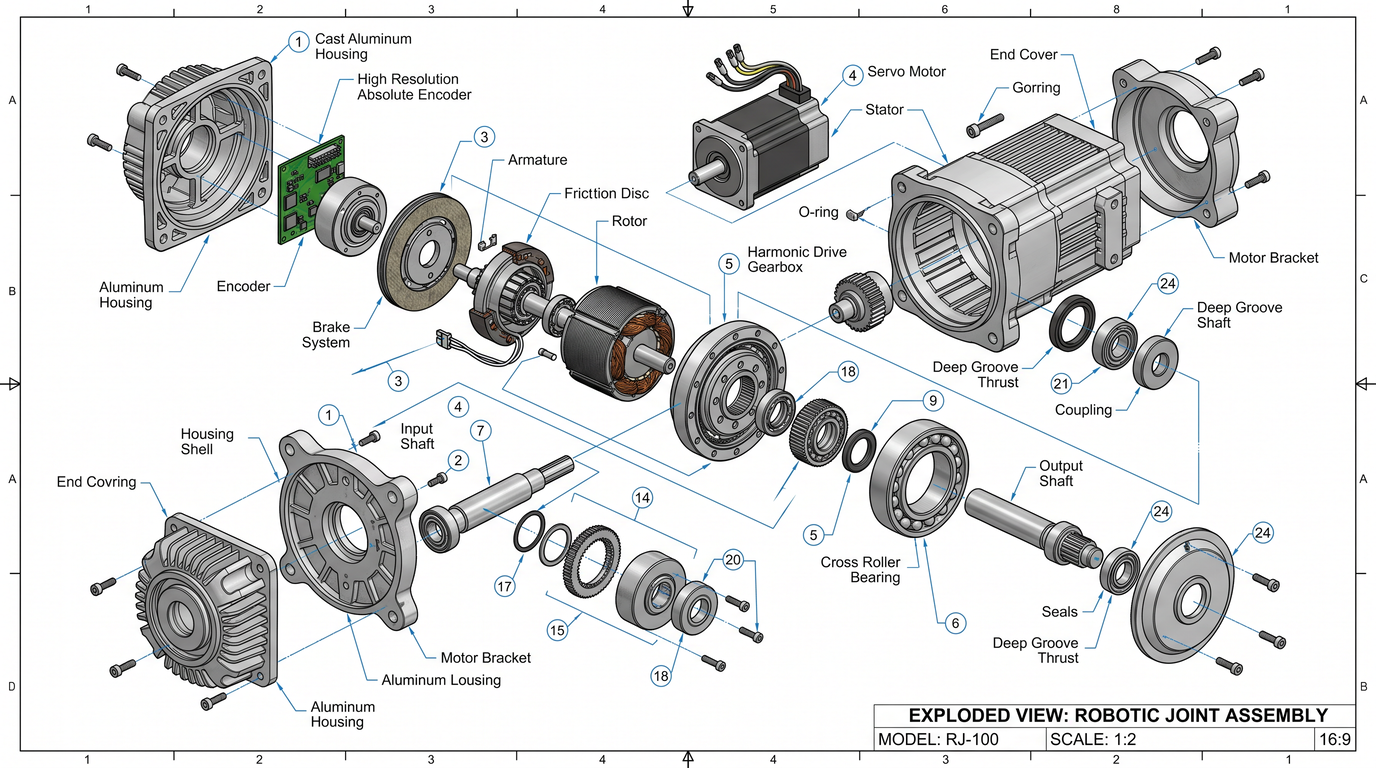

Joint Housings
Joint housings are among the most critical robotic components.
They must maintain precise alignment between bearings, gears, shafts, and servo motors while resisting deformation during continuous operation.
Joint housings are commonly manufactured from:
Aluminum 6061
Aluminum 7075
Stainless steel
Servo Motor Mounts
Servo motor mounts connect motion systems to robotic structures.
These components require:
Accurate hole positioning
Tight flatness control
Excellent rigidity
CNC machining ensures precise motor alignment and efficient power transmission.
End Effectors
End effectors include:
Grippers
Vacuum tools
Welding heads
Inspection tools
Many end effectors require customized geometries, making CNC machining an ideal manufacturing solution.
Gearbox Components
Precision gearboxes are essential in robotic motion systems.
Common CNC machined gearbox components include:
Gearbox housings
Output shafts
Flanges
Bearing carriers
These parts often require high dimensional accuracy and tight concentricity.
Linear Motion Components
Automation systems frequently utilize:
Linear guides
Sliding blocks
Precision rails
Ball screw supports
These components directly influence positioning accuracy and repeatability.
CNC Components Used in Automation Systems
Industrial automation equipment contains many CNC machined components beyond robotic arms.
| Automation Component | Typical Application |
|---|---|
| Fixture Plates | Automated assembly |
| Machine Frames | Equipment structure |
| Conveyor Components | Material handling |
| Actuator Housings | Motion control |
| Precision Brackets | Sensor mounting |
| Vision System Mounts | Machine vision |
| Pneumatic Manifolds | Air distribution |
| Custom Tooling | Automated production |
Because automation systems often operate continuously, component reliability is extremely important.
Materials Commonly Used for Robotic Components
Material selection directly affects robotic performance, weight, cost, and durability.
Aluminum 6061
Aluminum 6061 is one of the most widely used materials in robotics.
Advantages include:
Lightweight
Excellent machinability
Good corrosion resistance
Cost-effective
Typical applications:
Structural frames
Mounting brackets
Housings
Aluminum 7075
Aluminum 7075 provides significantly higher strength than 6061.
It is commonly used for:
High-load robotic arms
Precision structural components
Dynamic motion systems
Stainless Steel
Stainless steel is frequently selected when:
Corrosion resistance is required
High strength is needed
Wash-down environments exist
Common grades include:
SUS304
SUS316
Titanium
Titanium offers:
Exceptional strength-to-weight ratio
Outstanding corrosion resistance
Excellent fatigue performance
Titanium components are often found in:
Aerospace robotics
Medical robots
High-performance automation systems
Engineering Plastics
Engineering plastics are widely used in automation systems.
Examples include:
POM
PEEK
Nylon
PTFE
These materials provide:
Reduced weight
Electrical insulation
Low friction
Wear resistance

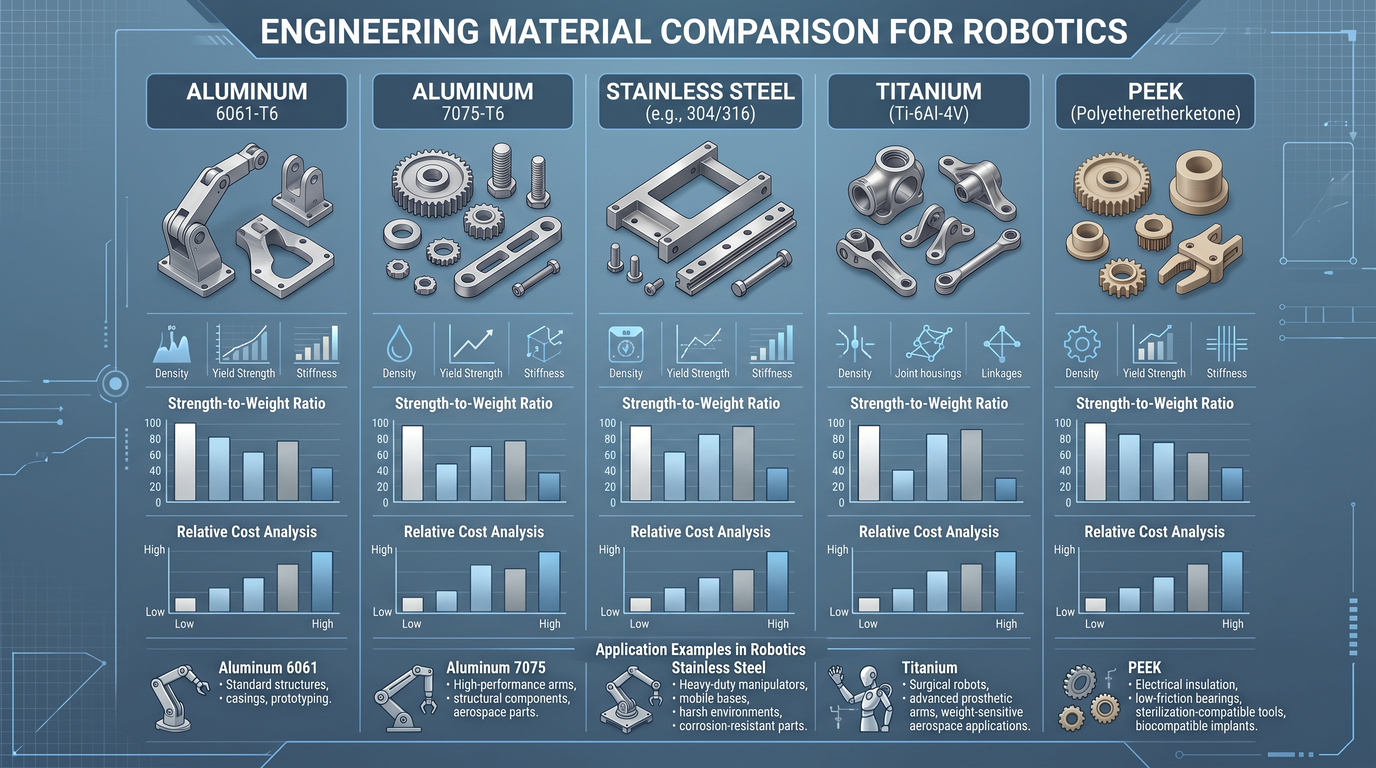

Material Comparison Table
| Material | Advantages | Typical Application |
|---|---|---|
| Aluminum 6061 | Lightweight, economical | Frames, housings |
| Aluminum 7075 | High strength | Robotic arms |
| Stainless Steel | Corrosion resistant | Precision assemblies |
| Titanium | High strength-to-weight ratio | Advanced robotics |
| POM | Wear resistant | Sliding components |
| PEEK | High temperature resistance | Semiconductor automation |
Typical Tolerances Required in Robotics CNC Machining
Robotic systems demand precise component interaction.
| Component | Typical Tolerance |
|---|---|
| Structural Frames | ±0.05 mm |
| Bearing Seats | ±0.01 mm |
| Gearbox Components | ±0.01 mm |
| Motor Mounting Features | ±0.02 mm |
| Precision Fixtures | ±0.01 mm |
| Alignment Features | ±0.005 mm |
Critical mating features frequently require precision inspection using Coordinate Measuring Machines (CMMs).
Challenges in Machining Robotic Components
Although robotic parts offer excellent opportunities for CNC manufacturers, they also present significant manufacturing challenges.
Maintaining Tight Tolerances
Precision robotic assemblies often require extremely tight dimensional control across multiple mating surfaces.
Maintaining these tolerances consistently throughout production requires:
Stable machining processes
High-quality equipment
Skilled operators
Comprehensive inspection procedures
Multi-Axis Machining Requirements
Many robotic components feature complex geometries requiring:
4-axis machining
5-axis machining
Multi-axis machining reduces setup errors while improving dimensional accuracy.
Surface Finish Consistency
Poor surface quality can negatively affect:
Bearing performance
Sliding motion
Assembly precision
Cosmetic appearance
Assembly Accuracy
Robotic systems involve numerous interacting components.
Small dimensional deviations across multiple parts can accumulate and affect overall system performance.

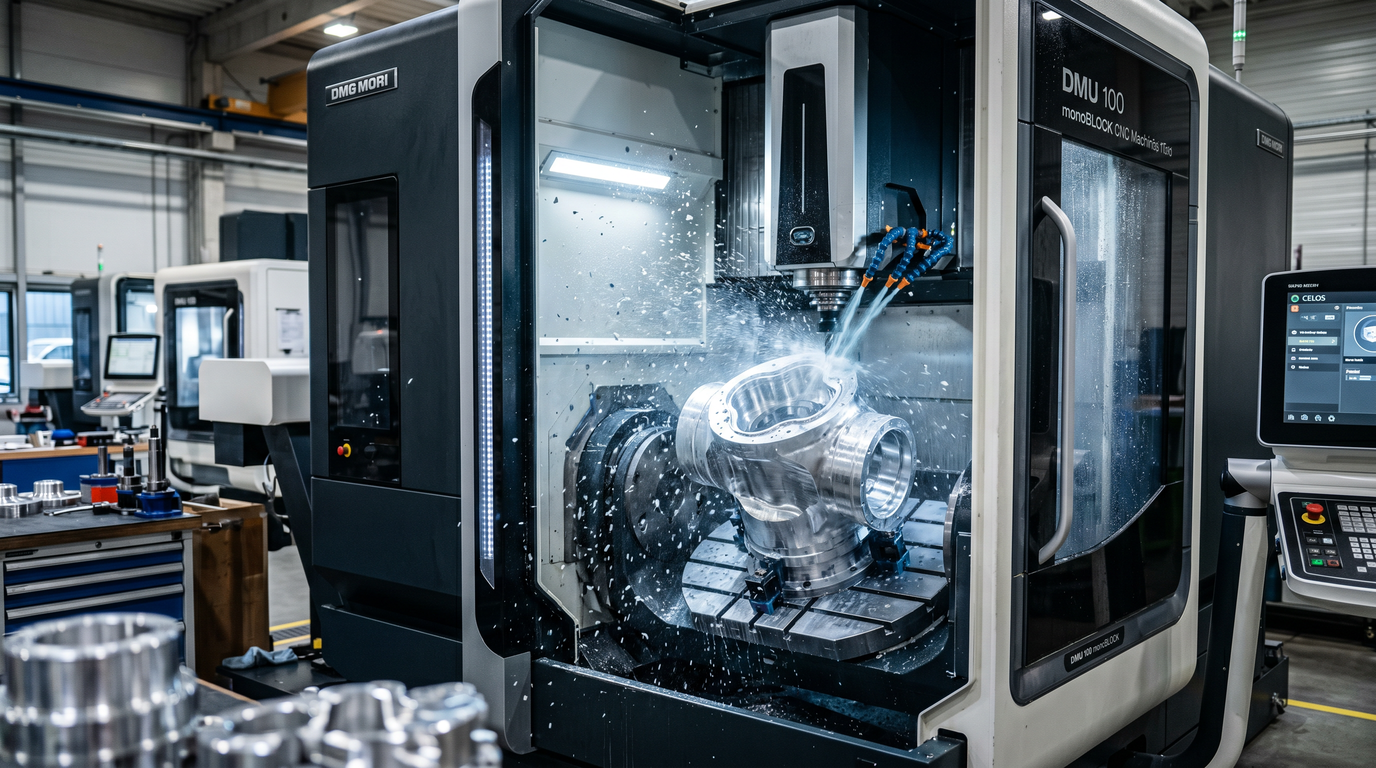

How 5-Axis CNC Machining Benefits Robotic Parts
5-axis CNC machining offers significant advantages when manufacturing robotic components.
Benefits include:
Fewer setups
Improved positional accuracy
Reduced cumulative error
Better surface finish
Shorter lead times
Increased geometric flexibility
Complex robotic components that previously required multiple operations can often be completed in a single setup using 5-axis machining.
Quality Requirements for Automation and Robotics Parts
Reliable automation systems require robust quality control.
Dimensional Inspection
Critical dimensions must be verified throughout production.
Typical inspection methods include:
Calipers
Micrometers
Height gauges
Bore gauges
CMM Inspection
Coordinate Measuring Machines (CMMs) provide highly accurate dimensional verification for:
Position tolerances
Flatness
Concentricity
Geometric tolerances
Material Traceability
Many automation customers require complete material traceability.
Documentation may include:
Material certificates
Heat treatment records
Inspection reports
Process Control
Consistent process control ensures repeatable production quality.
At Kachi Precision Manufacturing, our quality system includes:
IQC
IPQC
Final inspection
OQC
supported by ERP-based production management.
How to Choose a CNC Supplier for Robotics Projects
Selecting the right supplier is critical for automation projects.
Consider the following factors.
Evaluate Precision Capability
Verify whether the supplier can consistently achieve required tolerances.
Review Automation Industry Experience
Suppliers with automation industry experience typically understand:
Assembly requirements
Precision standards
Functional expectations
Verify Inspection Equipment
Confirm the availability of:
CMM equipment
Precision measurement tools
Inspection documentation
Assess Production Capacity
Ensure the supplier can support:
Prototype development
Low-volume production
Mass production
Check DFM Support
A capable supplier should provide Design for Manufacturability (DFM) recommendations to improve manufacturability and reduce cost.
Why Global Robotics Companies Source CNC Parts from China
China has become a major manufacturing hub for robotics and automation components.
| China Advantages | Customer Benefits |
|---|---|
| Competitive costs | Lower manufacturing expenses |
| Mature supply chain | Faster sourcing |
| Strong machining capability | Complex part manufacturing |
| Large production capacity | Scalability |
| Engineering support | Improved DFM solutions |
Today, many global robotics companies rely on Chinese CNC suppliers for both prototype and production programs.
How Kachi Supports Robotics and Automation Customers
At Kachi Precision Manufacturing, we support robotics and automation customers with:
Precision 3-axis, 4-axis, and 5-axis CNC machining
Prototype to production manufacturing
No minimum order quantity
Aluminum, stainless steel, titanium, and engineering plastic machining
ERP-managed production systems
Comprehensive quality control processes
Global logistics support
Our engineering team works closely with customers to optimize designs, improve manufacturability, and reduce overall project costs.
Conclusion
As industrial automation continues to expand worldwide, demand for high-precision robotic components will continue to grow.
From joint housings and servo mounts to precision automation fixtures and structural frames, CNC machining for robotic arms and automation systems remains essential for achieving the accuracy, reliability, and repeatability required by modern manufacturing.
Choosing an experienced CNC machining supplier can significantly improve product quality, reduce manufacturing risk, and accelerate time to market.
FAQ
Why are robotic arms made with CNC machining?
CNC machining provides the precision, repeatability, and structural integrity required for robotic components.
What materials are commonly used in robotic arm components?
Common materials include aluminum 6061, aluminum 7075, stainless steel, titanium, POM, and PEEK.
What tolerance is required for robotic CNC parts?
Typical tolerances range from ±0.05 mm to ±0.005 mm depending on component function.
Can CNC machining produce complex robotic components?
Yes. Modern 5-axis CNC machining can manufacture highly complex robotic components with excellent accuracy.
How do I choose a CNC supplier for robotics projects?
Evaluate precision capability, industry experience, inspection equipment, production capacity, and DFM support.
Need Precision CNC Machining for Robotics Projects?
At Kachi Precision Manufacturing, we provide high-precision CNC machining services for robotic arms, industrial automation equipment, and intelligent manufacturing systems.
From prototypes to production, our engineering team supports customers with DFM analysis, precision inspection, and fast global delivery.
Send us your drawings today for a fast quotation and engineering review.
