CNC Machining for Medical Implants: Materials, Tolerances & Manufacturing Guide (2026)

Medical implants are among the most demanding products manufactured today.

Whether it is a hip replacement, dental implant, spinal fixation device, or trauma plate, every component must meet extremely strict requirements for precision, consistency, biocompatibility, and traceability.

Unlike general industrial parts, medical implants directly affect patient safety and long-term clinical outcomes. Even minor dimensional deviations or surface defects can compromise implant performance.

As a result, manufacturers must utilize highly controlled production processes capable of delivering exceptional accuracy and repeatability.

Among all manufacturing technologies, CNC machining remains one of the most widely used processes for producing precision medical implants and medical device components.

Modern CNC machining enables manufacturers to produce complex geometries, maintain tight tolerances, and achieve superior surface finishes while ensuring consistent quality from prototype development to production.

In this guide, we will explore how CNC machining is used for medical implants, including materials, tolerances, quality requirements, manufacturing challenges, and supplier selection considerations.

Why CNC Machining Is Widely Used for Medical Implants

Medical implants demand precision levels that few manufacturing processes can consistently achieve.

CNC machining offers several important advantages that make it ideal for medical applications.

Exceptional Precision

Medical implants frequently require dimensional tolerances as tight as ±0.01 mm or better.

Modern CNC machining centers can achieve this level of precision repeatedly.

Critical implant features include:

• Mating surfaces
• Threaded interfaces
• Bone contact areas
• Alignment features

These features must be manufactured with extreme accuracy to ensure proper fit and functionality.

Excellent Repeatability

Consistency is essential in medical manufacturing.

Whether producing ten implants or ten thousand, every component must conform to the same specifications.

Custom Implant Production

Patient-specific implants are becoming increasingly common.

CNC machining provides the flexibility necessary to manufacture customized implants directly from digital CAD models without requiring expensive tooling.

Complex Geometries

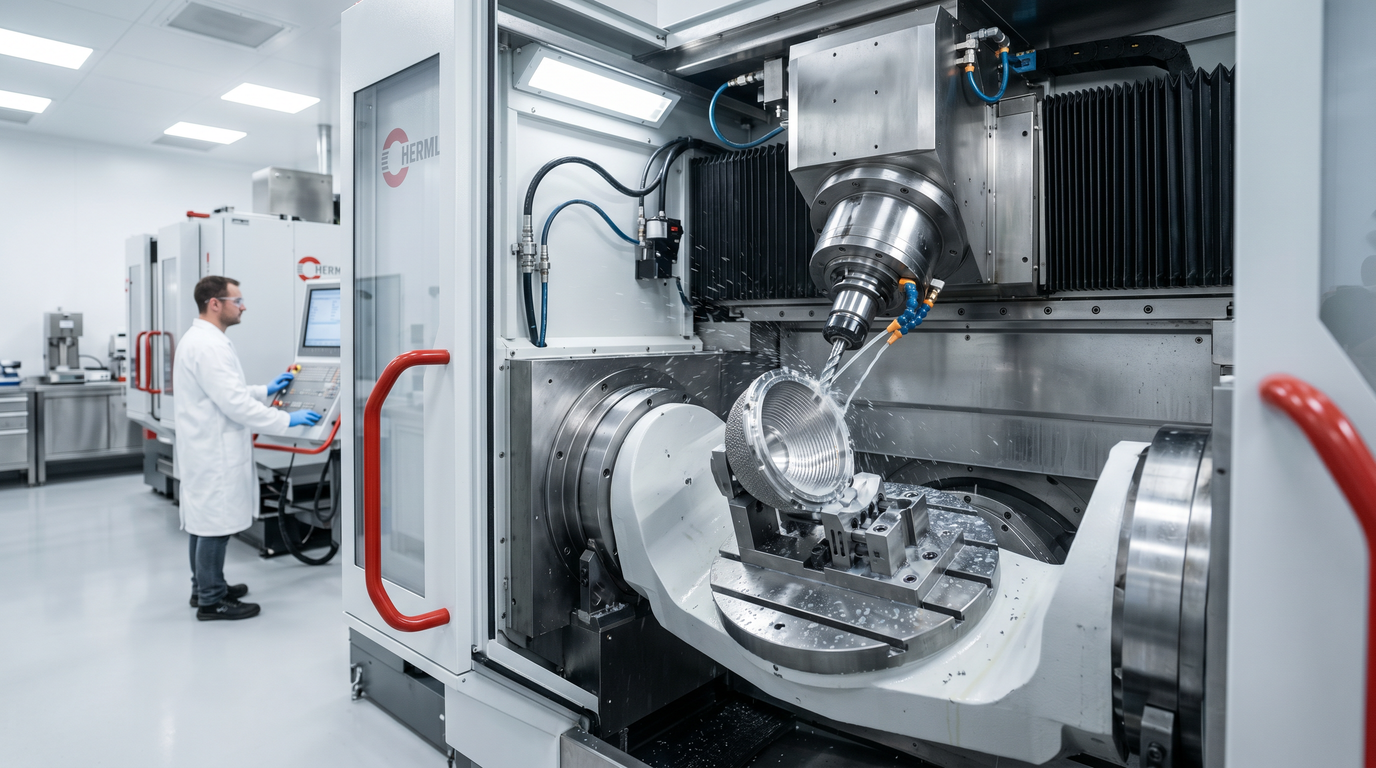

Multi-axis CNC machining allows manufacturers to produce sophisticated implant features accurately and efficiently.

• Bone fixation features
• Anatomical contours
• Threaded interfaces
• Precision slots
• Internal cavities

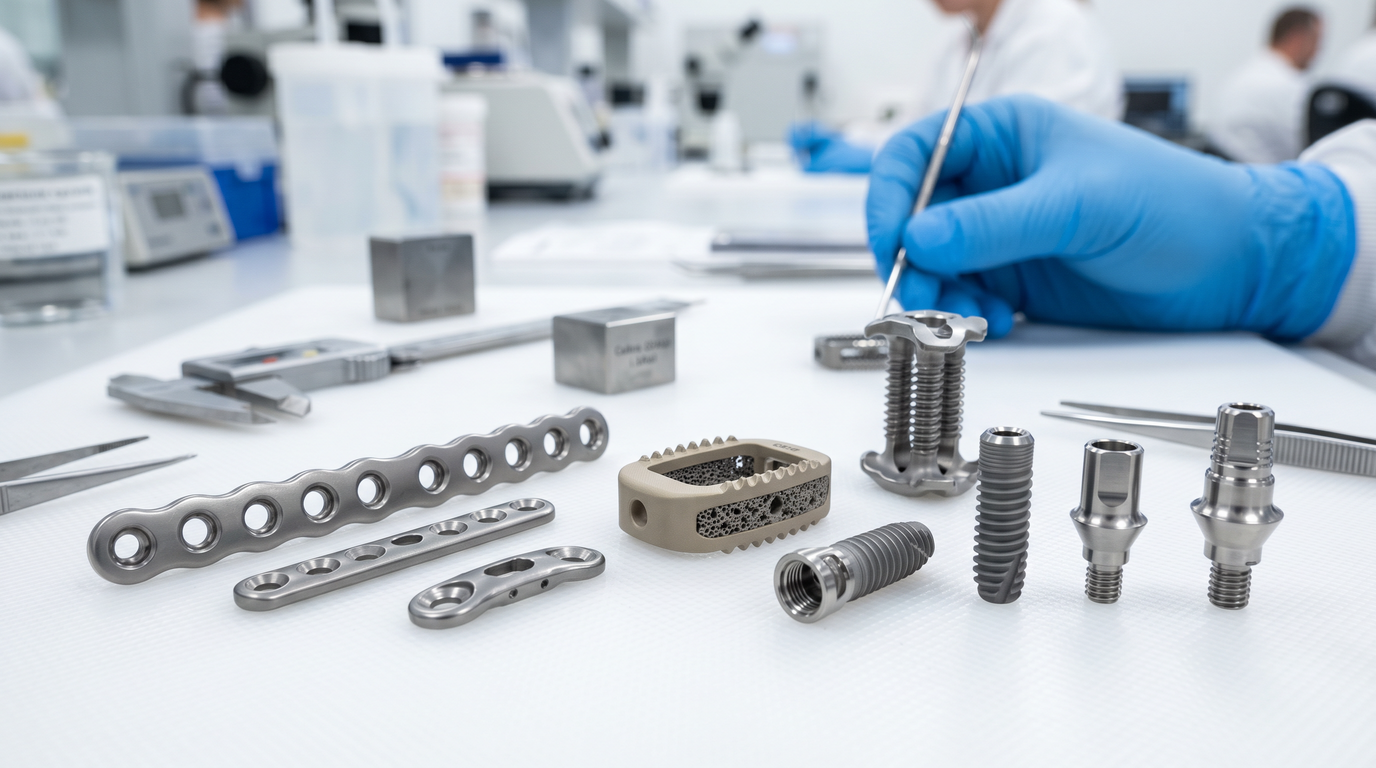

Common Types of Medical Implants Manufactured by CNC Machining

Materials Commonly Used in Medical Implant Machining

Medical implant materials must provide:

• Biocompatibility
• Corrosion resistance
• Mechanical strength
• Long-term durability

Titanium Ti6Al4V

• Excellent biocompatibility
• Outstanding corrosion resistance
• High strength-to-weight ratio
• Excellent fatigue resistance

Typical applications:

• Dental implants
• Hip implants
• Bone screws
• Trauma plates
• Spinal implants

Stainless Steel 316L

• Good corrosion resistance
• Cost-effective
• Excellent machinability

Cobalt Chrome

• Exceptional wear resistance
• High strength
• Excellent fatigue performance

PEEK

• Biocompatibility
• Radiolucency
• Lightweight properties

Why Titanium Is the Preferred Material for Medical Implants

Outstanding Biocompatibility

Titanium integrates exceptionally well with human tissue and is generally well tolerated by the body.

Excellent Corrosion Resistance

Titanium naturally forms a protective oxide layer that resists corrosion in body fluids.

High Strength with Low Weight

Titanium delivers excellent mechanical performance while remaining lightweight.

However, titanium remains one of the most difficult medical materials to machine because of its low thermal conductivity and high strength.

Typical Tolerances for Medical Implant CNC Machining

Many implants also require GD&T controls including:

• Position
• Flatness
• Perpendicularity
• Profile
• Concentricity

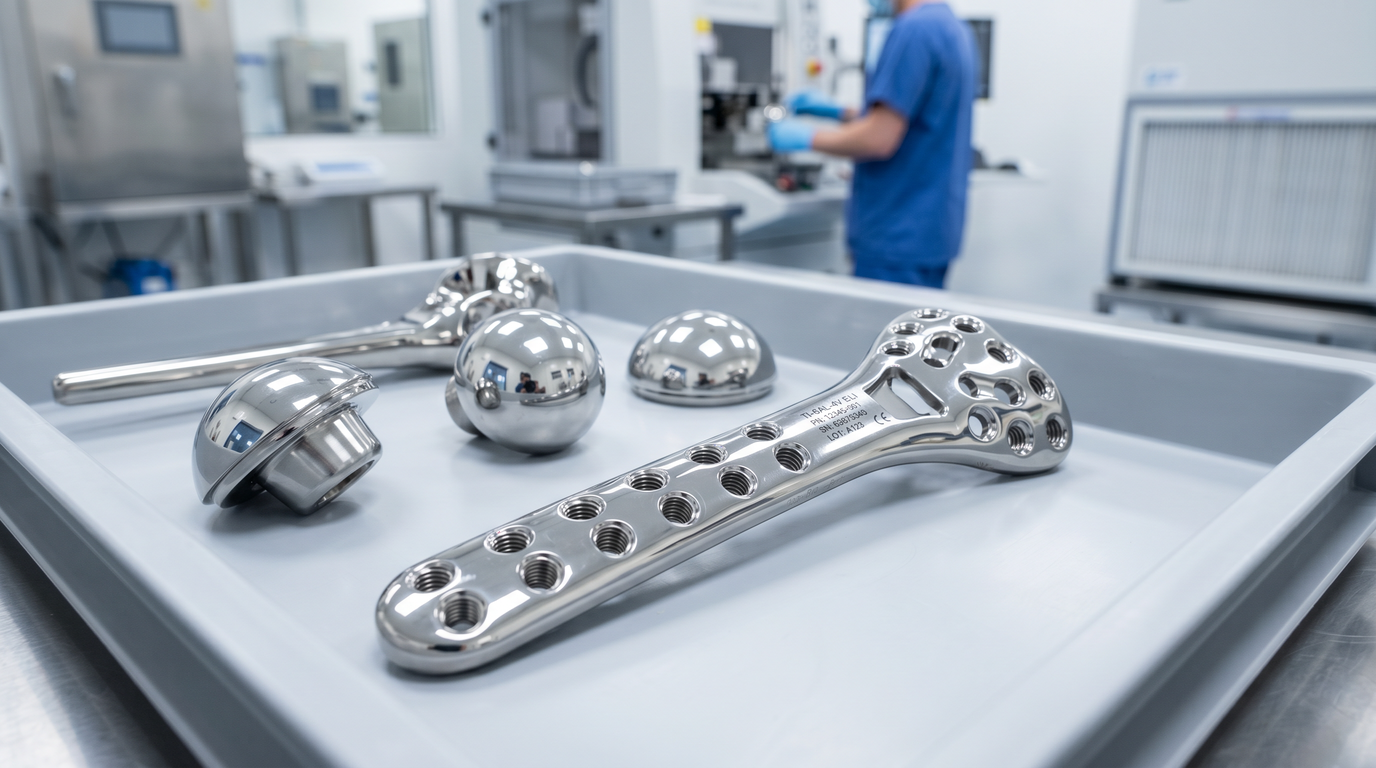

Surface Finish Requirements for Medical Implants

Typical roughness values:

• Ra 0.8 μm
• Ra 0.4 μm
• Ra 0.2 μm

Quality Requirements in Medical Implant Manufacturing

Traceability

• Material heat numbers
• Production records
• Inspection data
• Operator information

Material Certification

• Chemical composition
• Mechanical properties
• Compliance standards

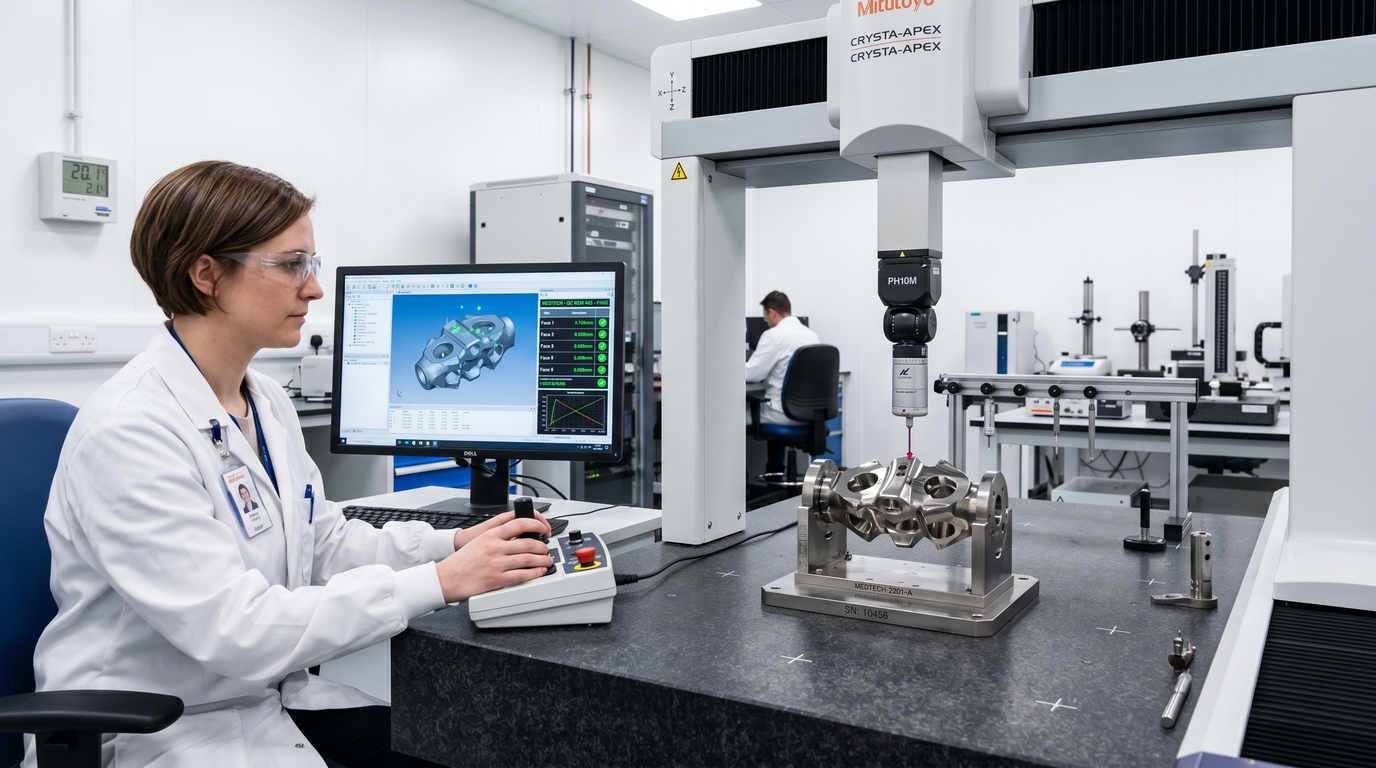

CMM Inspection

• Complex geometries
• Tight tolerances
• GD&T verification

Documentation

• Inspection reports
• Material certificates
• CMM reports
• Surface roughness reports
• Certificate of Conformance

Challenges in CNC Machining Medical Implants

Machining Titanium

• Rapid tool wear
• Heat buildup
• Work hardening

Tight Tolerances

Micron-level tolerances require precision machines, stable fixtures, and advanced inspection systems.

Burr-Free Requirements

Medical components often require completely burr-free edges to ensure safety and functionality.

Surface Integrity

Scratches, contamination, and surface defects must be strictly controlled.

How Medical CNC Suppliers Ensure Compliance

Reliable medical machining suppliers often implement:

• ISO 9001 quality systems
• Customer-specific quality procedures
• Comprehensive inspection programs
• Material traceability
• CMM inspection
• Document control
• Process documentation

How to Choose a CNC Supplier for Medical Implant Projects

Experience in Medical Manufacturing

Suppliers should understand medical industry requirements.

Inspection Capabilities

• CMM equipment
• Surface roughness testers
• Advanced metrology systems

Traceability Systems

Strong traceability systems reduce manufacturing risks.

Quality Documentation

• Material certifications
• Inspection reports
• Full traceability records

Engineering Support

Experienced suppliers can optimize manufacturability and reduce production costs.

How Kachi Supports Medical Device Manufacturing Projects

At Kachi Precision Manufacturing, we support customers developing precision medical device components and high-precision medical parts.

• Precision CNC milling and turning
• Tight-tolerance machining
• Multi-axis machining
• CMM inspection
• Material certification support
• Full dimensional inspection
• Prototype to production manufacturing

Our engineering team works closely with customers to optimize manufacturability, improve quality consistency, and support demanding medical manufacturing projects.

Conclusion

Medical implants represent some of the most challenging components in modern manufacturing.

Exceptional precision, biocompatible materials, strict quality controls, and complete traceability are essential throughout the manufacturing process.

CNC machining continues to play a critical role in producing high-performance medical implants because it offers the precision, flexibility, and repeatability required by the medical industry.

Frequently Asked Questions

Why is CNC machining used for medical implants?

CNC machining provides the precision, repeatability, and flexibility required for manufacturing complex medical implants.

What materials are commonly used for medical implants?

Common materials include Titanium Ti6Al4V, Stainless Steel 316L, Cobalt Chrome, PEEK, and UHMWPE.

What tolerances are required for medical implants?

Critical implant features often require tolerances as tight as ±0.01 mm or better.

Is titanium difficult to machine?

Yes. Titanium has low thermal conductivity and high strength, making it more difficult to machine than conventional metals.

What quality certifications are important for medical machining?

ISO 9001 certification, material traceability systems, inspection procedures, and customer-specific quality controls are all important.
