2D Drawing vs 3D Model: What CNC Suppliers Really Prefer (2026 Guide)
If you’ve ever sent an RFQ to multiple CNC suppliers, you’ve probably seen this:
One supplier asks for 2D drawings.
Another says 3D files are enough.
A third asks for both — and delays the quote until they get them.
So which one is actually required?
The short answer:
Serious CNC suppliers don’t choose between 2D and 3D — they rely on both.
But the reason why matters.
Because misunderstanding this is one of the most common causes of:
- Quote inconsistencies
- Cost changes during production
- Dimensional disputes
- Delays in delivery
This guide breaks down what 2D drawings and 3D models actually do, where each one fails, and how experienced engineers structure RFQs to avoid problems before machining even begins.

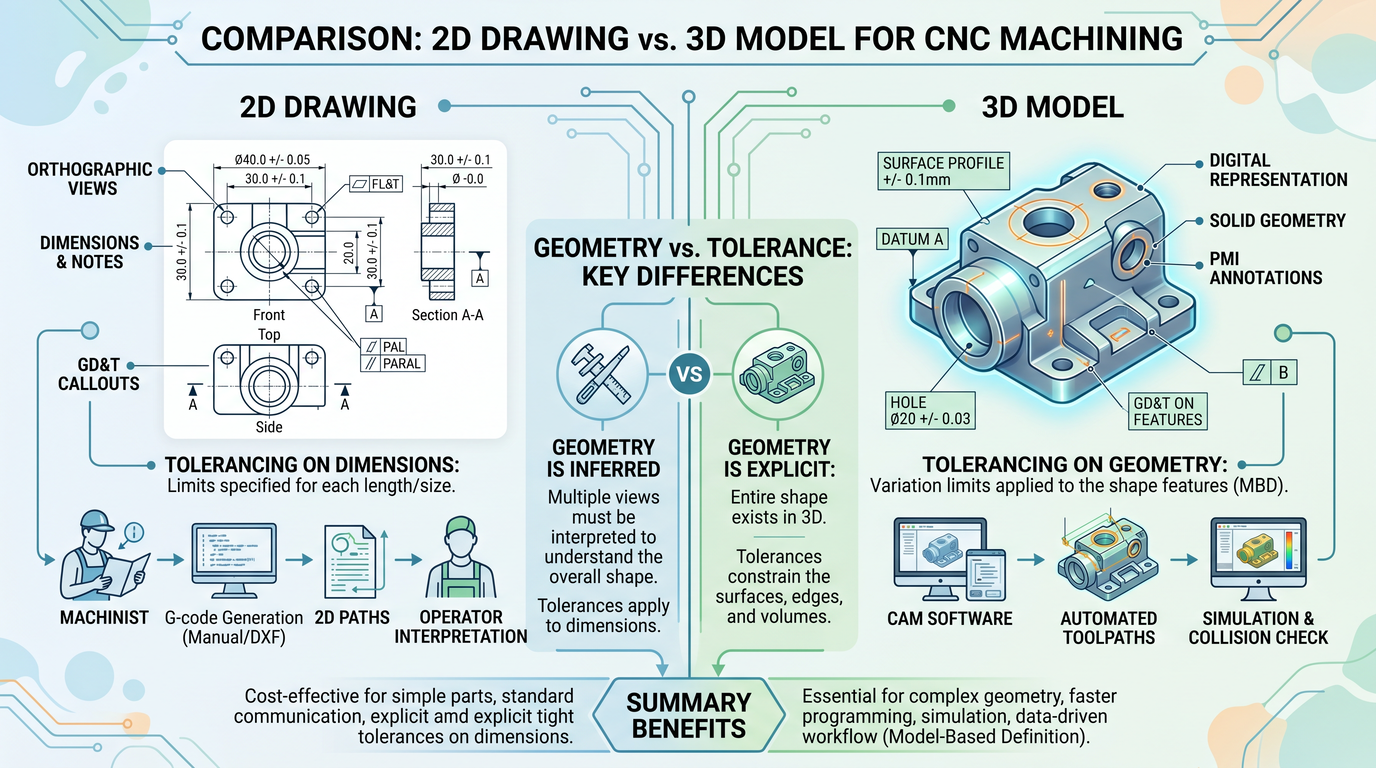

The Core Difference — Geometry vs Requirements
At a glance, 2D drawings and 3D models look like two ways of describing the same part.
They are not.
What 3D Models Actually Provide
A 3D CAD model defines:
- Geometry and shape
- Feature relationships
- Complex surfaces
- Assembly fit (in many cases)
For CNC suppliers, the 3D model is primarily used for:
- CAM programming
- Toolpath generation
- Machining feasibility
Without a 3D model, suppliers are essentially working blind.
What 2D Drawings Actually Define
A 2D drawing defines something more critical:
What is acceptable — and what is not
It includes:
- Critical dimensions
- Tolerances
- GD&T requirements
- Surface finishes
- Notes and inspection standards
This is not about shape — it’s about quality expectations.
Why 3D Models Alone Are Not Enough
From a buyer’s perspective, sending only a 3D file feels efficient.
From a supplier’s perspective, it creates risk.

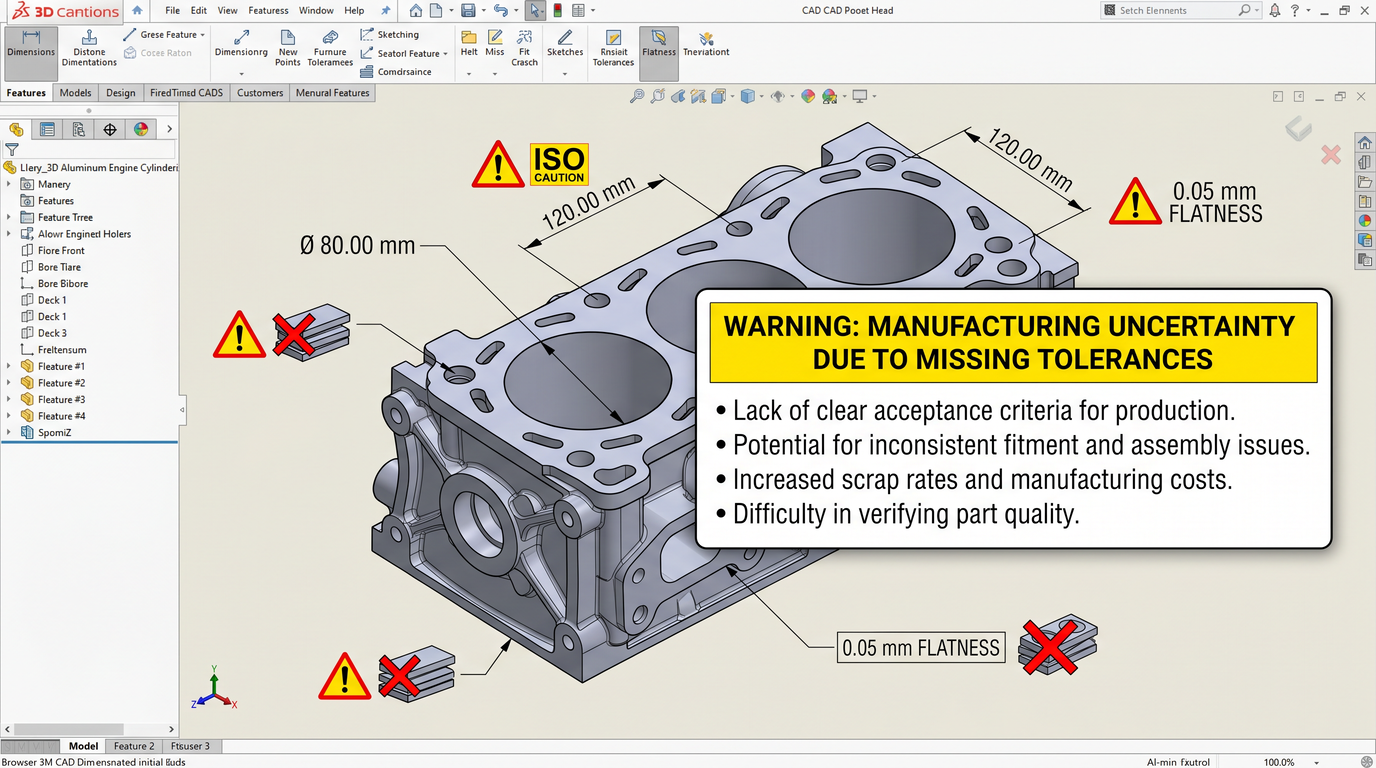

Because a 3D model does NOT clearly define:
- Which dimensions are critical
- What tolerance applies where
- Inspection requirements
- Functional priorities
That forces suppliers to make assumptions.
And assumptions lead to:
- Different quotes from different suppliers
- Changes after production starts
- Disputes over “out-of-tolerance” parts
Why 2D Drawings Alone Are Not Enough
On the other hand, relying only on 2D drawings creates a different problem.
2D drawings struggle with:
- Complex geometries
- Freeform surfaces
- Multi-axis features
Without a 3D model:
- CAM programming becomes inefficient
- Risk of interpretation error increases
- Lead time extends
Modern CNC machining is built around 3D data.
Ignoring that slows everything down.
What CNC Suppliers Actually Prefer (Real Answer)
3D model = how to make the part
2D drawing = how to verify the part
They are not alternatives.
They are complementary systems.
Suppliers use:
- 3D for machining
- 2D for inspection and quality control
When both are provided and aligned, quoting becomes:
- Faster
- More accurate
- More consistent across suppliers

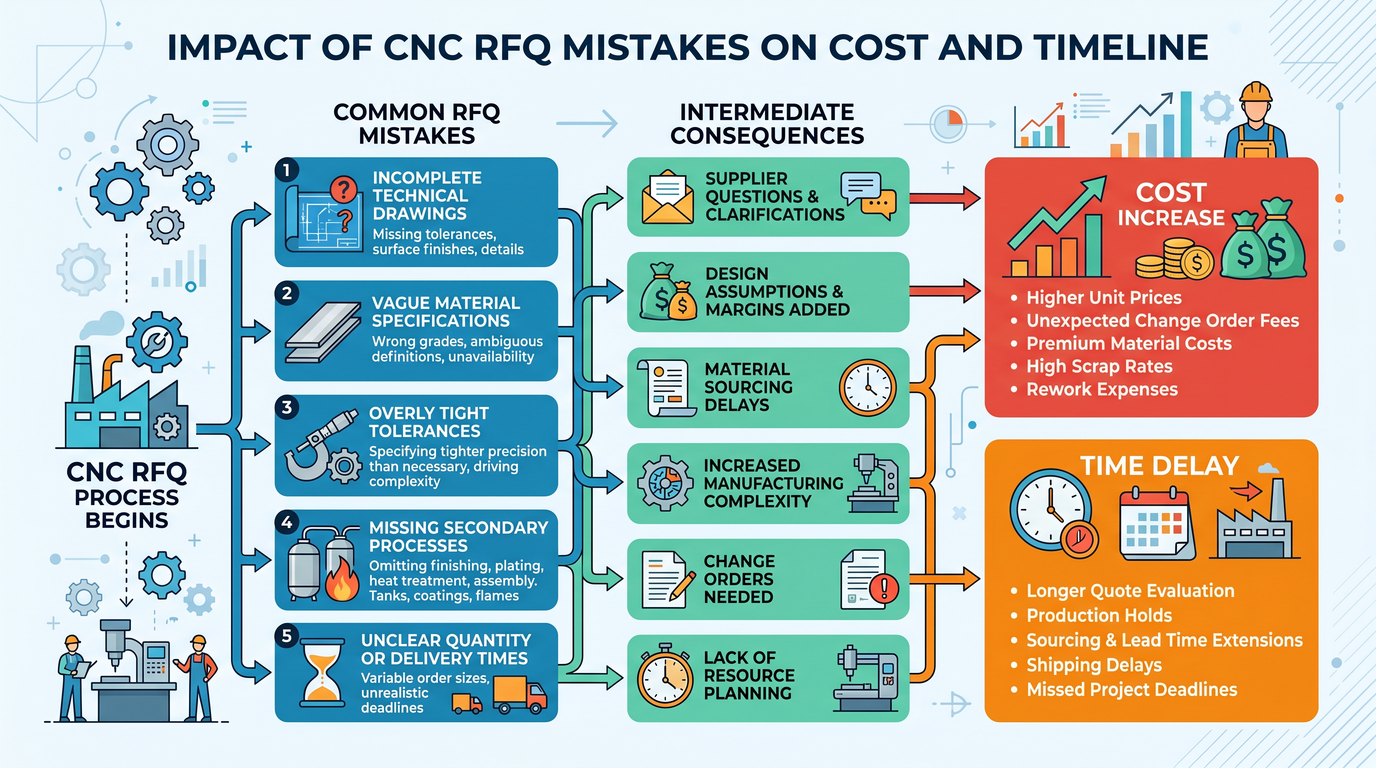

Where Most RFQs Go Wrong
Sending Only 3D Files
Common issue:
“Quote as per model.”
Result:
- Suppliers guess tolerances
- Quotes vary widely
- Costs change later
Overloaded or Conflicting 2D Drawings
- Over-specified tolerances
- Missing reference datums
- Conflicts between 2D and 3D
This creates confusion and delays.
Misalignment Between 2D and 3D
If the drawing and model don’t match:
The supplier must choose which one to follow
That’s a risk — and often leads to disputes.
How Experienced Engineers Structure RFQs
Professionals don’t rely on one format.
They use both — strategically.
Best Practice Setup
- 3D model as the master geometry reference
- 2D drawing for critical dimensions only
- Clear tolerance zones
- Defined surface finish and notes
Cost Impact: Why This Matters More Than You Think
Without Clear 2D Data
- Suppliers add safety margins
- Quotes become higher
With Over-Toleranced 2D Drawings
- Machining time increases
- Inspection cost increases
- Scrap rate increases
With Proper Balance
- Cost is optimized
- Lead time is predictable
- Quality is stable
How Kachi Precision Handles 2D and 3D Data
At Kachi Precision Manufacturing, we treat drawings as risk indicators.
- Cross-check 2D and 3D alignment
- Identify missing data
- Flag unnecessary tolerances
- Highlight cost drivers
Issues are solved before quoting — not after production starts.
Quick Checklist Before Sending Your RFQ
- 3D model included (STEP preferred)
- 2D drawing defines critical dimensions
- Tolerances are realistic
- No conflicts between files
- Surface finishes defined
Conclusion
The question is not “2D or 3D?”
The real question is:
Are your requirements clear enough for manufacturing without guessing?
In CNC machining:
- 3D defines shape
- 2D defines acceptance
When both are used correctly, you get:
- Accurate quotes
- Stable production
- Fewer surprises
