Why is stainless steel more expensive to machine? What factors influence pricing? How much does it typically cost to manufacture stainless steel CNC parts?
In this guide, we’ll explain the key factors that affect stainless steel CNC machining cost, compare common stainless steel grades, and share practical tips to help buyers reduce manufacturing expenses.
Why Is Stainless Steel CNC Machining More Expensive?
Compared with aluminum and engineering plastics, stainless steel is generally more challenging to machine. This directly impacts machining time, tooling consumption, and overall production cost.
Higher Material Cost
The first reason is simple: stainless steel raw materials are more expensive.
The material price of stainless steel is usually higher than standard carbon steel and significantly higher than aluminum 6061.
Certain grades such as 316 stainless steel and 17-4PH stainless steel can cost substantially more due to alloying elements including nickel, molybdenum, and chromium.
Since material cost often represents a large portion of total manufacturing cost, selecting the appropriate stainless steel grade is critical.
Poorer Machinability
Stainless steel is more difficult to machine than aluminum.
Many stainless steel grades exhibit:
- High toughness
- Work hardening tendencies
- Low thermal conductivity
- High cutting resistance
During machining, stainless steel tends to harden as it is cut. This phenomenon, known as work hardening, increases cutting forces and makes subsequent machining operations more difficult.
As a result, CNC machining stainless steel generally requires slower cutting parameters and more robust tooling.
Longer Machining Time
Because stainless steel cannot usually be machined as aggressively as aluminum, cycle times are often longer.
Longer machining time means:
- Increased machine occupancy
- Higher labor costs
- Reduced production efficiency
For complex parts, machining time may account for the largest percentage of total cost.
Increased Tool Wear
Stainless steel causes significantly greater cutting tool wear.
Manufacturers often need:
- Premium carbide tools
- More frequent tool replacement
- Additional tool offsets
- Specialized cutting strategies
Tooling expenses can substantially increase the final part price, especially for prototypes and low-volume production.

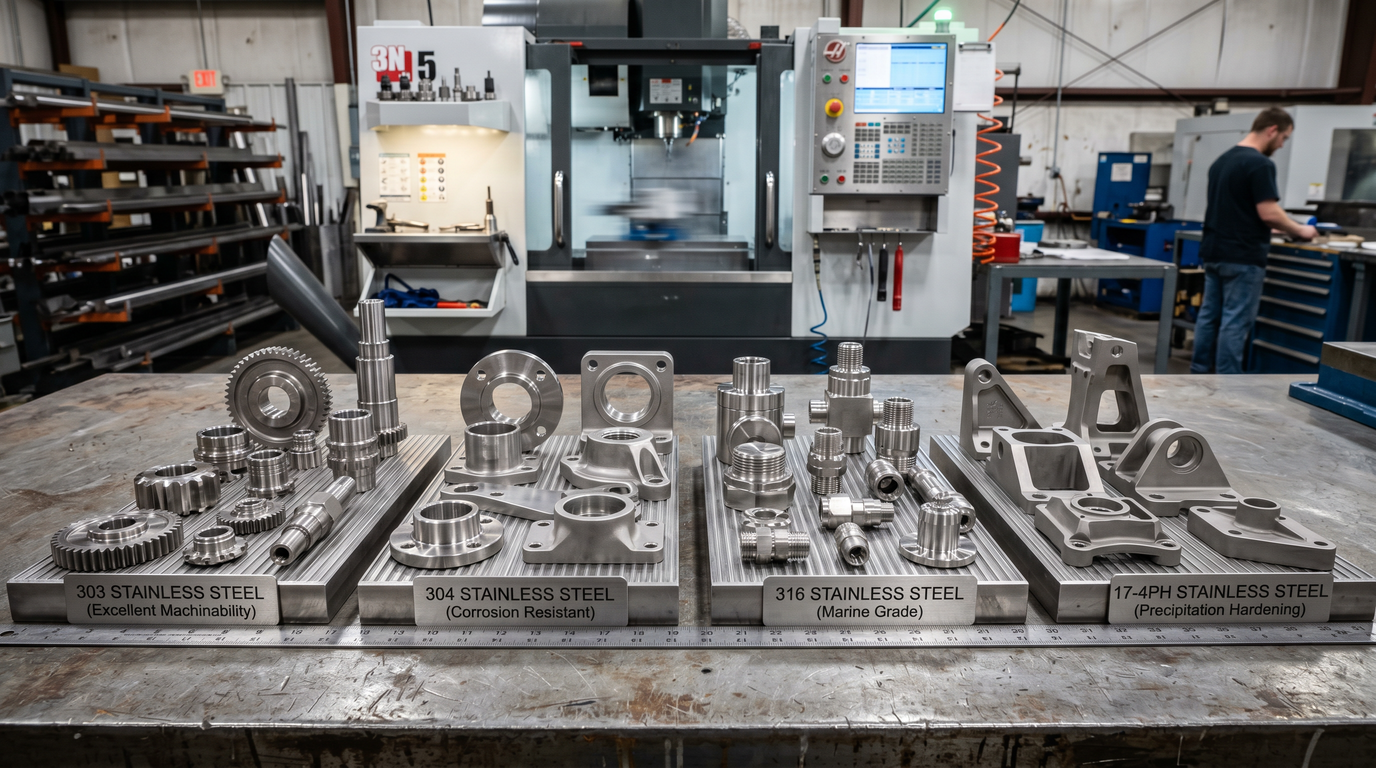

Typical Stainless Steel Grades Used in CNC Machining
Different stainless steel grades vary considerably in machinability, corrosion resistance, and cost.
| Grade | Corrosion Resistance | Machinability | Relative Cost | Typical Applications |
|---|---|---|---|---|
| 303 | Good | Excellent | Medium | General industrial parts |
| 304 | Excellent | Good | Medium | Food equipment, medical devices |
| 316 | Superior | Fair | High | Marine, medical, chemical equipment |
| 17-4PH | Good | Fair | High | Aerospace, high-strength components |
| 420 | Moderate | Good | Medium | Cutting tools, wear components |
303 Stainless Steel
303 is considered one of the easiest stainless steels to machine.
Sulfur is added to improve machinability, allowing faster cutting speeds and reduced tooling wear.
Typical applications include:
- Shafts
- Bushings
- Fasteners
- Precision turned components
When corrosion resistance requirements are moderate, 303 can provide significant cost savings.
304 Stainless Steel
304 stainless steel is the most commonly used grade in CNC machining.
It offers:
- Excellent corrosion resistance
- Good mechanical properties
- Wide availability
Applications include:
- Food processing equipment
- Medical components
- Industrial machinery
- Consumer products
Because of its versatility, 304 is often the default material choice.
316 Stainless Steel
316 stainless steel provides enhanced corrosion resistance due to the addition of molybdenum.
It performs exceptionally well in:
- Marine environments
- Chemical processing
- Pharmaceutical applications
- Medical equipment
However, 316 is generally more expensive to machine than 304.
17-4PH Stainless Steel
17-4PH is a precipitation-hardening stainless steel offering:
- High strength
- Excellent fatigue resistance
- Good corrosion resistance
It is widely used in:
- Aerospace
- Semiconductor equipment
- Industrial automation
- Defense applications
Heat treatment requirements often increase overall machining cost.
420 Stainless Steel
420 stainless steel can be heat treated to achieve high hardness.
Typical applications include:
- Surgical instruments
- Wear-resistant components
- Cutting tools
Additional grinding and finishing operations may be necessary after heat treatment.
Factors That Affect Stainless Steel CNC Machining Cost
Many factors influence stainless steel CNC machining pricing.
Material Grade
The selected material grade significantly affects cost.
For example:
- 303 is generally less expensive to machine.
- 316 requires more machining time and costs more.
- 17-4PH often requires heat treatment and additional inspection.
Choosing an unnecessarily expensive grade can substantially increase project cost.
Part Geometry Complexity
Complex geometries require:
- Multi-axis machining
- Additional setups
- Longer programming time
- Specialized tooling
Features that increase cost include:
- Deep pockets
- Thin walls
- Complex contours
- Small internal radii
Simplifying part geometry often reduces machining cost.
Tolerance Requirements
Tighter tolerances require greater machining precision.
| Tolerance | Relative Cost |
|---|---|
| ±0.10 mm | Low |
| ±0.05 mm | Standard |
| ±0.02 mm | High |
| ±0.01 mm | Very High |
Applying unnecessarily tight tolerances to non-critical features can significantly increase cost.
Surface Finish Requirements
Additional finishing processes increase manufacturing cost.
Common secondary operations include:
- Polishing
- Bead blasting
- Passivation
- Electropolishing
Precision surface finishes often require extra machining and inspection time.
Order Quantity
Quantity directly affects unit price.
Prototype production usually carries higher per-part costs because setup and programming costs are distributed across fewer components.
Higher production volumes generally reduce unit cost.
Secondary Operations
Additional processes frequently include:
- Heat treatment
- Welding
- Passivation
- Laser marking
- Assembly
Each secondary operation contributes to total manufacturing cost.
Estimated Stainless Steel CNC Machining Costs
| Part Type | Material | Quantity | Estimated Cost Range |
|---|---|---|---|
| Simple Prototype | 304 | 1–10 pcs | $30–$120 per part |
| Medium Complexity | 304 | 10–100 pcs | $15–$60 per part |
| Complex Precision Part | 316 | 1–10 pcs | $80–$300 per part |
| High-Precision Component | 17-4PH | 1–10 pcs | $100–$500 per part |
| Production Parts | Various | 100+ pcs | Custom quotation |
304 vs 316 vs 17-4PH: Cost Comparison
| Material | Relative Material Cost | Machining Difficulty | Overall Cost |
|---|---|---|---|
| 304 | Medium | Medium | Medium |
| 316 | High | Medium-High | High |
| 17-4PH | High | High | Very High |
How to Reduce Stainless Steel CNC Machining Costs
Choose the Appropriate Grade
Select materials based on actual performance requirements rather than over-specifying.
Relax Non-Critical Tolerances
Not every dimension requires aerospace-level tolerances.
Simplify Geometry
Reducing unnecessary complexity decreases machining time.
Avoid Deep Pockets
Deep cavities require long cutting tools and increase cost.
Increase Production Quantities
Larger production volumes distribute setup costs across more parts.
Request DFM Review
A professional DFM review can identify opportunities to reduce machining cost before production begins.
Prototype vs Production Stainless Steel Machining Cost
| Factor | Prototype | Production |
|---|---|---|
| Setup Cost | High | Distributed |
| Unit Cost | High | Lower |
| Lead Time | Fast | Optimized |
| Tooling Investment | Minimal | Optimized |
| Process Optimization | Limited | Extensive |
How Suppliers Quote Stainless Steel CNC Parts
Professional suppliers evaluate multiple factors when preparing quotations.
- Material cost
- Machining time
- Tool wear
- Programming complexity
- Machine setup
- Tolerance requirements
- Surface finish
- Inspection complexity
- Secondary operations
Providing complete RFQ information significantly improves quotation accuracy.
How Kachi Helps Customers Optimize Stainless Steel Machining Cost
At Kachi Precision Manufacturing, we help customers optimize stainless steel machining costs through engineering support and DFM analysis.
- Precision CNC milling and turning
- Stainless steel prototype machining
- Low-volume and production manufacturing
- Material selection recommendations
- Tolerance optimization
- DFM analysis
- No MOQ support
Conclusion
Stainless steel CNC machining cost depends on far more than raw material price.
Factors such as material grade, machining time, tolerance requirements, surface finish, geometry complexity, and production quantity all influence final cost.
By selecting appropriate materials, simplifying designs, and engaging suppliers early in the development process, buyers can significantly reduce manufacturing expenses while maintaining quality and performance.
FAQ
Why is stainless steel CNC machining expensive?
Stainless steel is more difficult to machine than aluminum because of its toughness, work hardening characteristics, longer machining times, and increased tool wear.
Which stainless steel is easiest to machine?
303 stainless steel generally offers the best machinability among commonly used stainless steel grades.
Is 316 stainless steel more expensive than 304?
Yes. 316 stainless steel typically costs more because of its enhanced corrosion resistance and higher alloy content.
How can I reduce stainless steel machining costs?
You can reduce costs by selecting appropriate materials, simplifying geometry, relaxing non-critical tolerances, increasing order quantities, and requesting DFM review.
What information is needed for an accurate CNC quote?
An accurate quotation typically requires a STEP file, PDF drawing, material specification, quantity, tolerance requirements, and surface finish specifications.
