How Tolerance Affects CNC Machining Cost (2026 Guide)

Many buyers are surprised when they receive a CNC machining quotation.

The material seems inexpensive. The part geometry looks relatively simple. Yet the quoted price is significantly higher than expected.

In many cases, the reason is not the material.

It is not even the machining time.

The real cost driver is often tolerance.

Tolerances directly influence machining strategy, machine selection, inspection requirements, production efficiency, and scrap risk. Even a small change in tolerance requirements can dramatically increase manufacturing costs.

Understanding how tolerance affects CNC machining cost allows engineers and procurement teams to optimize designs, reduce unnecessary expenses, and improve manufacturability.

In this guide, we’ll explain why tolerances matter, when tight tolerances are necessary, and how proper tolerance optimization can reduce CNC machining costs.

What Is Tolerance in CNC Machining?

Tolerance refers to the allowable variation from a specified dimension.

No manufacturing process can produce parts with absolutely perfect dimensions. Every machined component contains some variation.

For example:

50.00 mm ±0.05 mm

means the actual dimension can vary between:

• 49.95 mm
• 50.05 mm

Any dimension within this range is considered acceptable.

Tolerance defines how much variation is permitted while still allowing the part to function correctly.

The tighter the tolerance, the more precise the manufacturing process must be.

Why Every CNC Part Has Tolerance

Even the most advanced CNC machine cannot produce identical parts indefinitely.

Several factors naturally introduce variation during machining.

These include:

• Machine accuracy limitations
• Tool wear
• Thermal expansion
• Material variation
• Machine vibration
• Fixture movement

Because variation always exists, engineering drawings must specify acceptable dimensional limits.

Without tolerances, manufacturers cannot determine whether a part meets design requirements.

Tolerance is therefore one of the most fundamental concepts in CNC machining.

How Tolerance Directly Affects CNC Machining Cost

Tolerance influences nearly every stage of the manufacturing process.

The table below illustrates how tighter tolerances affect production.

As tolerances become tighter, manufacturing becomes slower, more difficult, and more expensive.

Why Tight Tolerances Increase CNC Machining Cost

Additional Machine Setup

Achieving tight tolerances often requires additional machine setup procedures.

Operators may need to:

• Re-align fixtures
• Perform multiple setup verifications
• Conduct trial cuts
• Make fine machine adjustments

Each setup consumes labor time and increases overall production cost.

For high-precision parts, setup time can exceed actual cutting time.

Slower Machining Speeds

Higher precision usually requires slower cutting conditions.

Machinists may reduce:

• Feed rates
• Spindle speeds
• Depth of cut

Slower machining improves dimensional stability but increases cycle time.

A part that normally requires 20 minutes to machine may require 35 minutes or more when extremely tight tolerances are specified.

Longer cycle times directly increase manufacturing cost.

More Frequent Measurements

Standard production may involve periodic inspections.

Precision machining often requires measurement after every operation.

Additional inspection activities may include:

• In-process inspection
• First article inspection

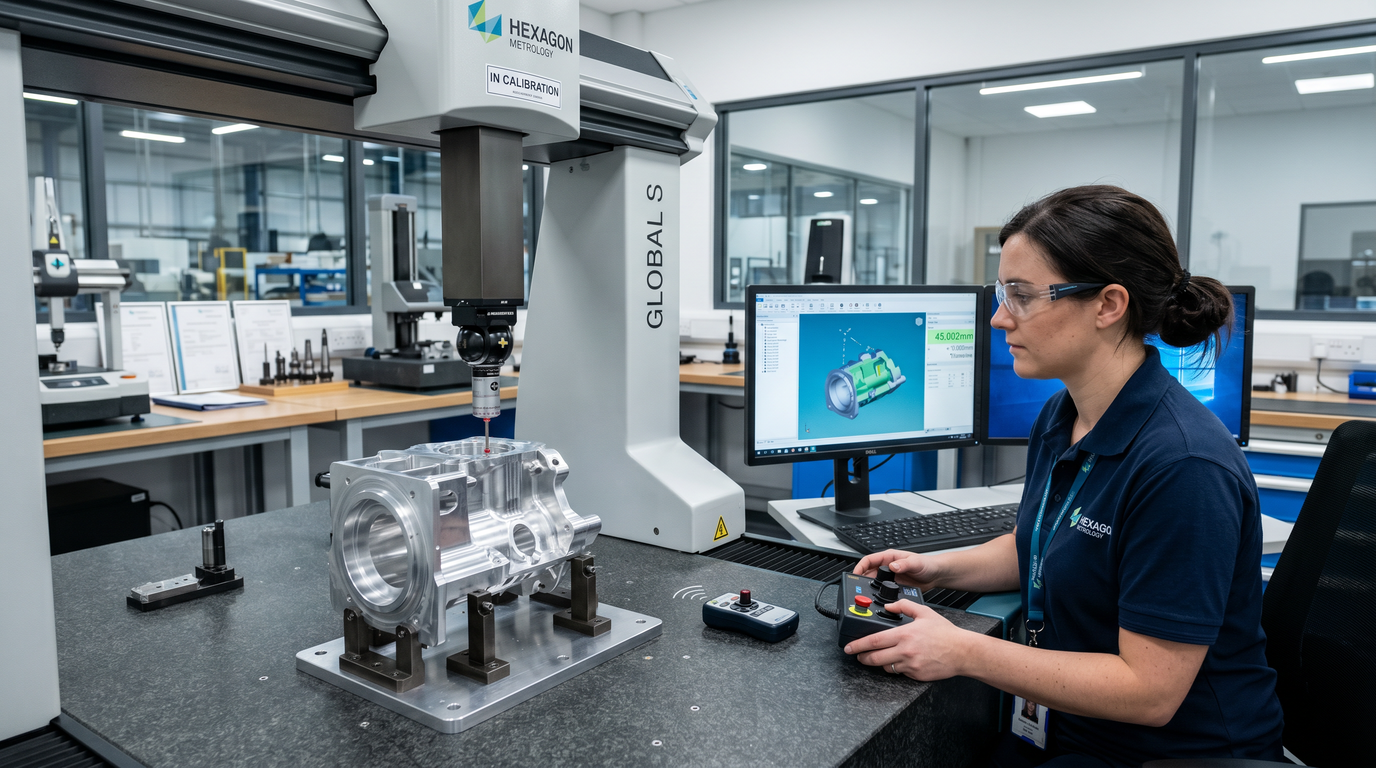

• CMM measurement
• Statistical verification

Inspection labor can become a significant portion of total manufacturing cost.

Higher Scrap Rates

The tighter the tolerance, the smaller the acceptable manufacturing window.

As tolerances become extremely narrow, the risk of producing out-of-specification parts increases.

Higher scrap rates result in:

• Material loss
• Additional labor
• Increased rework
• Delivery delays

Suppliers typically include this risk in their quotations.

Specialized Equipment Requirements

Very tight tolerances may require:

• High-end CNC machines
• Temperature-controlled workshops
• Precision grinding equipment
• Coordinate Measuring Machines (CMM)
• Specialized tooling

These investments increase manufacturing overhead.

Consequently, high-precision components generally cost more.

Typical CNC Tolerance Cost Comparison

The relationship between tolerance and cost is not linear.

Cost increases rapidly as tolerances become tighter.

For many industrial applications, a tolerance of ±0.05 mm provides an excellent balance between performance and cost.

Reducing a tolerance from ±0.05 mm to ±0.01 mm may increase machining cost by 20% to 50%, depending on geometry and material.

When Tight Tolerances Are Necessary

Bearing Fits

Bearing seats require precise dimensions to ensure proper fit and performance.

Incorrect tolerances may result in:

• Excessive clearance
• Premature wear
• Assembly failure

Sealing Surfaces

Components containing O-rings, gaskets, or vacuum seals often require tight dimensional control.

Examples include:

• Hydraulic components
• Semiconductor vacuum chambers
• Medical equipment

Precision Assemblies

Complex assemblies frequently require high positional accuracy.

Examples include:

• Robotics systems
• Optical equipment
• Aerospace assemblies

Aerospace Components

Aerospace applications often specify tight tolerances to ensure reliability and safety.

Medical Devices

Medical components may require exceptional precision for functional and regulatory reasons.

When Standard Tolerances Are Sufficient

Not every dimension requires extreme precision.

Many non-critical features can use standard tolerances.

Examples include:

• Covers
• Mounting brackets
• Electronic housings
• Cosmetic panels
• Protective enclosures

For these components, general tolerances such as ISO 2768 are often sufficient.

Applying unnecessarily tight tolerances to non-functional features only increases cost.

A common engineering principle is:

Apply precision only where precision is needed.

Tolerance Stack-Up and Manufacturing Cost

Tolerance stack-up occurs when multiple dimensions combine to create accumulated variation.

Consider an assembly consisting of several individual components.

Even if each dimension falls within specification, accumulated variation may affect final assembly performance.

This is why engineers frequently use:

• GD&T
• Datum structures
• Functional dimensioning

Proper tolerance analysis helps avoid excessive precision requirements while ensuring assembly functionality.

Well-designed tolerances reduce manufacturing cost without compromising performance.

How Engineers Can Reduce CNC Machining Cost Through Tolerance Optimization

Apply Tight Tolerances Only to Critical Features

Critical features should receive tight tolerances.

Non-critical dimensions should use general tolerances.

This approach significantly reduces manufacturing complexity.

Use General Tolerances for Non-Critical Dimensions

Many drawings unnecessarily specify individual tolerances for every dimension.

Using standards such as ISO 2768 simplifies manufacturing and inspection.

Use GD&T Properly

GD&T communicates functional requirements more effectively than traditional dimensions alone.

Proper GD&T usage can reduce ambiguity and eliminate unnecessary tolerance restrictions.

Discuss Tolerance Requirements with Suppliers

Experienced suppliers often identify opportunities for cost reduction.

Early engineering discussions frequently reveal dimensions that can be relaxed without affecting functionality.

Request DFM Review

Design for Manufacturability (DFM) review remains one of the most effective methods for optimizing tolerances.

DFM analysis can identify:

• Excessive tolerances
• Difficult-to-machine features
• Cost-saving opportunities

How Suppliers Review Tolerance Requirements During Quotation

Professional CNC suppliers evaluate several factors before providing quotations.

Typical considerations include:

• Required machine capability
• Process feasibility
• Inspection complexity
• Tooling requirements
• Scrap risk
• Production volume

Tight tolerance requirements often trigger additional engineering review.

In many cases, suppliers recommend alternative tolerance strategies to reduce cost.

Real Example: How Tolerance Optimization Reduced Cost

A customer once submitted an RFQ for an aluminum electronics housing.

Every dimension on the drawing specified:

±0.01 mm

After engineering review, it became clear that only four features directly affected assembly.

The remaining dimensions had no functional impact.

The customer agreed to:

• Maintain ±0.01 mm on critical features
• Change non-critical dimensions to ±0.05 mm

As a result:

• Machining time decreased
• Inspection requirements were reduced
• Scrap risk declined

The final unit cost decreased by approximately 25%.

The part function remained unchanged.

Standard CNC Machining Tolerances Reference Table

The following table provides general reference values commonly used in CNC machining.

Actual achievable tolerances depend on geometry, material, and manufacturing process.

Always consult your supplier when defining critical tolerances.

How Kachi Helps Customers Optimize Tolerances

At Kachi Precision Manufacturing, every RFQ undergoes an engineering review before quotation.

Our team evaluates:

• Manufacturability
• Tolerance feasibility
• Inspection requirements
• Cost optimization opportunities

We regularly provide DFM recommendations that help customers:

• Reduce machining cost
• Improve manufacturability
• Shorten lead time
• Minimize production risk

Our experience across prototype and production projects enables us to recommend practical tolerance solutions for a wide range of industries.

Conclusion

Tolerance is one of the most important factors affecting CNC machining cost.

Tighter tolerances increase machining time, inspection requirements, setup complexity, and manufacturing risk.

However, tight tolerances are not always necessary.

By applying precision only where it is functionally required, engineers can significantly reduce manufacturing cost while maintaining product performance.

Successful CNC projects balance precision, functionality, and manufacturability.

Understanding this balance is essential for achieving both technical and commercial success.

FAQ

Why do tight tolerances increase CNC machining cost?

Tight tolerances require additional setup, slower machining speeds, more inspections, specialized equipment, and increase scrap risk.

What is the standard CNC machining tolerance?

Standard CNC machining tolerance is typically around ±0.05 mm, although this may vary depending on material and geometry.

When should I use ±0.01 mm tolerance?

Use ±0.01 mm tolerance only for critical functional features such as bearing fits, sealing surfaces, and precision assemblies.

How can I reduce CNC machining cost through tolerance optimization?

Apply tight tolerances only where necessary, use general tolerances for non-critical features, and request DFM review from your supplier.

Does every dimension require tight tolerance?

No. Most dimensions do not require extremely tight tolerances. Over-tolerancing significantly increases manufacturing cost without improving functionality.
