One of the most common questions we hear from customers is:
“Should this part be CNC milled or CNC turned?”
At first glance, the answer may seem obvious. However, many parts can be manufactured using different machining methods, and choosing the wrong process can increase machining costs, extend lead times, and create unnecessary manufacturing challenges.
For engineers, buyers, and sourcing managers, understanding the difference between CNC milling vs CNC turning is essential when requesting quotations, reviewing designs, and selecting the right CNC machining supplier.
At Kachi Precision Manufacturing, our engineering team reviews hundreds of RFQs every month. In many cases, we help customers optimize designs by recommending the most efficient machining process before production begins.
In this guide, we’ll explain the key differences between CNC milling and CNC turning, compare their capabilities, costs, tolerances, and applications, and help you determine which process is best for your project.

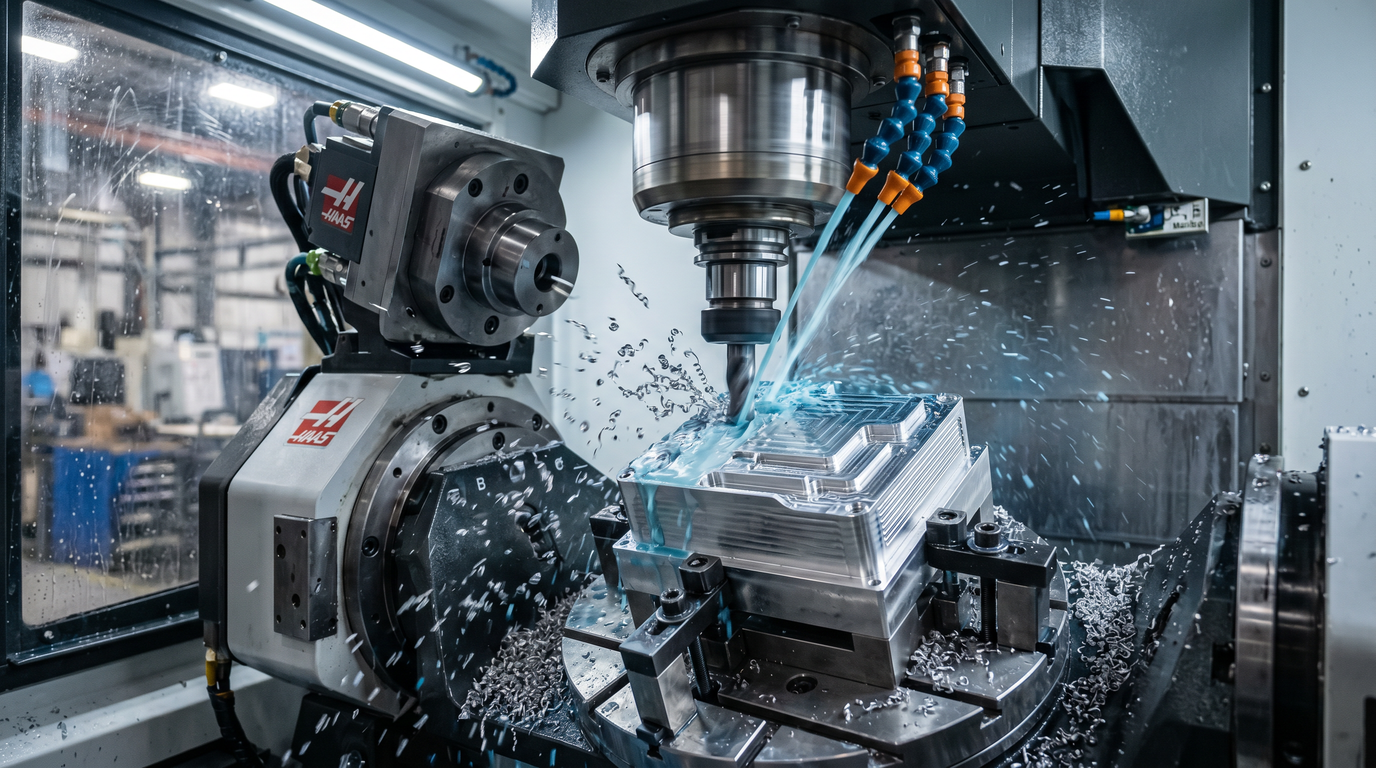

What Is CNC Milling?
CNC milling is a machining process where a rotating cutting tool removes material from a stationary workpiece.
The cutting tool moves along multiple axes to create complex shapes, pockets, slots, holes, contours, and precision features.
Because of its flexibility, CNC milling is one of the most widely used manufacturing processes in modern machining.
How CNC Milling Works
During CNC milling:
- The workpiece is fixed in place.
- The cutting tool rotates at high speed.
- The machine moves the tool along programmed paths.
- Material is gradually removed until the final geometry is achieved.
Modern CNC milling machines can perform highly complex operations with excellent precision and repeatability.
Common Types of CNC Milling Machines
3-Axis CNC Milling
The most common machining configuration.
Suitable for:
- Brackets
- Mounting plates
- Housings
- Fixtures
4-Axis CNC Milling
Adds a rotational axis for machining multiple sides of a part.
Suitable for:
- Complex mechanical components
- Rotary features
5-Axis CNC Milling
Allows simultaneous movement across five axes.
Widely used in:
- Aerospace components
- Medical devices
- Semiconductor equipment
- Precision molds
Typical CNC Milled Parts
Common CNC milled components include:
- Aluminum housings
- Heat sinks
- Mounting brackets
- Electronic enclosures
- Robotics components
- Aerospace structural parts
If a part contains multiple flat surfaces, pockets, cavities, or irregular geometries, CNC milling is often the preferred process.

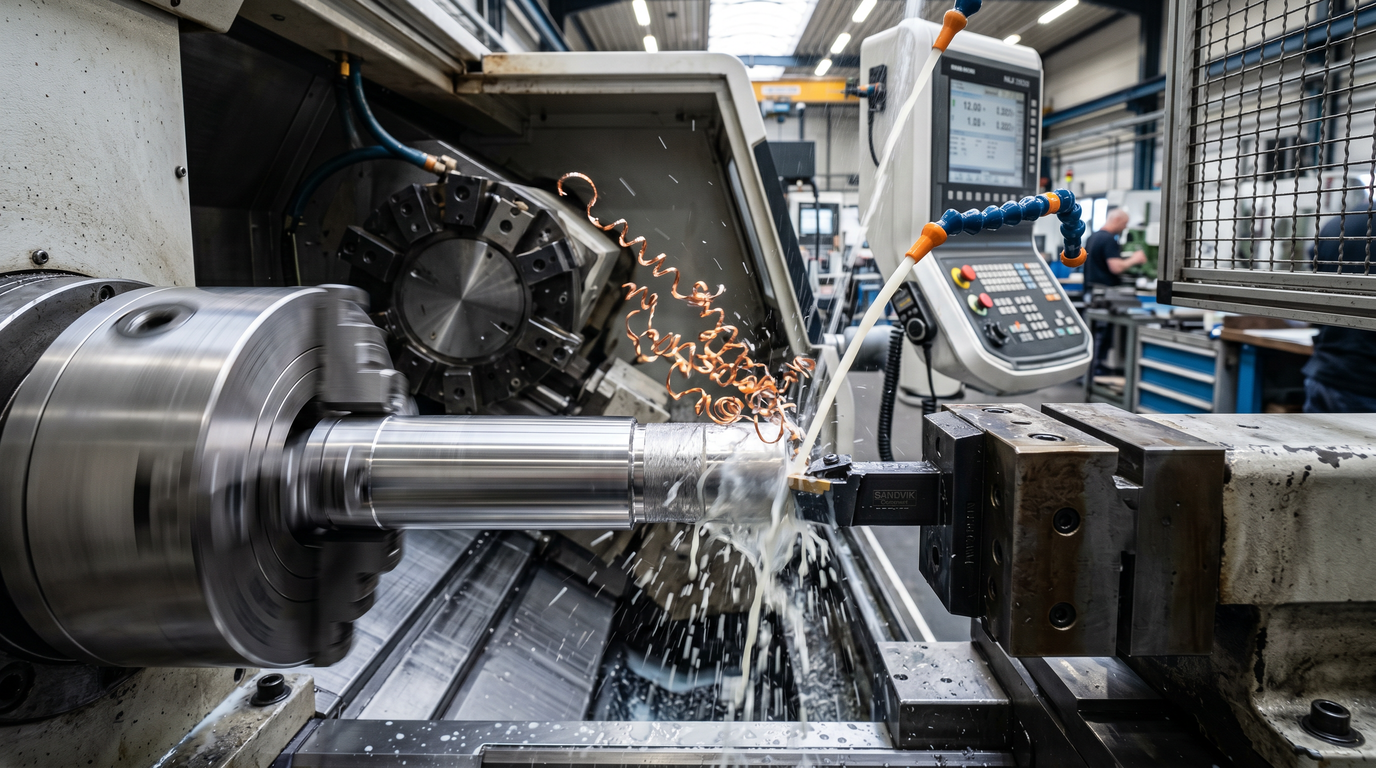

What Is CNC Turning?
CNC turning is a machining process where the workpiece rotates while a cutting tool removes material.
Unlike CNC milling, where the cutting tool rotates, CNC turning relies on rotating the material itself.
This process is ideal for manufacturing cylindrical and rotationally symmetric parts.
How CNC Turning Works
During CNC turning:
- The raw material is clamped in a chuck.
- The workpiece rotates at high speed.
- The cutting tool remains relatively stationary.
- Material is removed to create the desired profile.
Because of its efficiency, CNC turning is often the most cost-effective solution for round components.
Common CNC Turning Equipment
CNC Lathes
Standard CNC lathes are widely used for:
- Shafts
- Bushings
- Sleeves
- Pins
Live Tool Turning Centers
Advanced turning centers can combine:
- Turning
- Milling
- Drilling
- Tapping
into a single setup.
This reduces cycle time and improves accuracy.
Typical CNC Turned Parts
Examples include:
- Motor shafts
- Hydraulic fittings
- Bushings
- Spacers
- Connectors
- Valve components
If the part is primarily round or rotationally symmetrical, CNC turning is usually the best manufacturing choice.

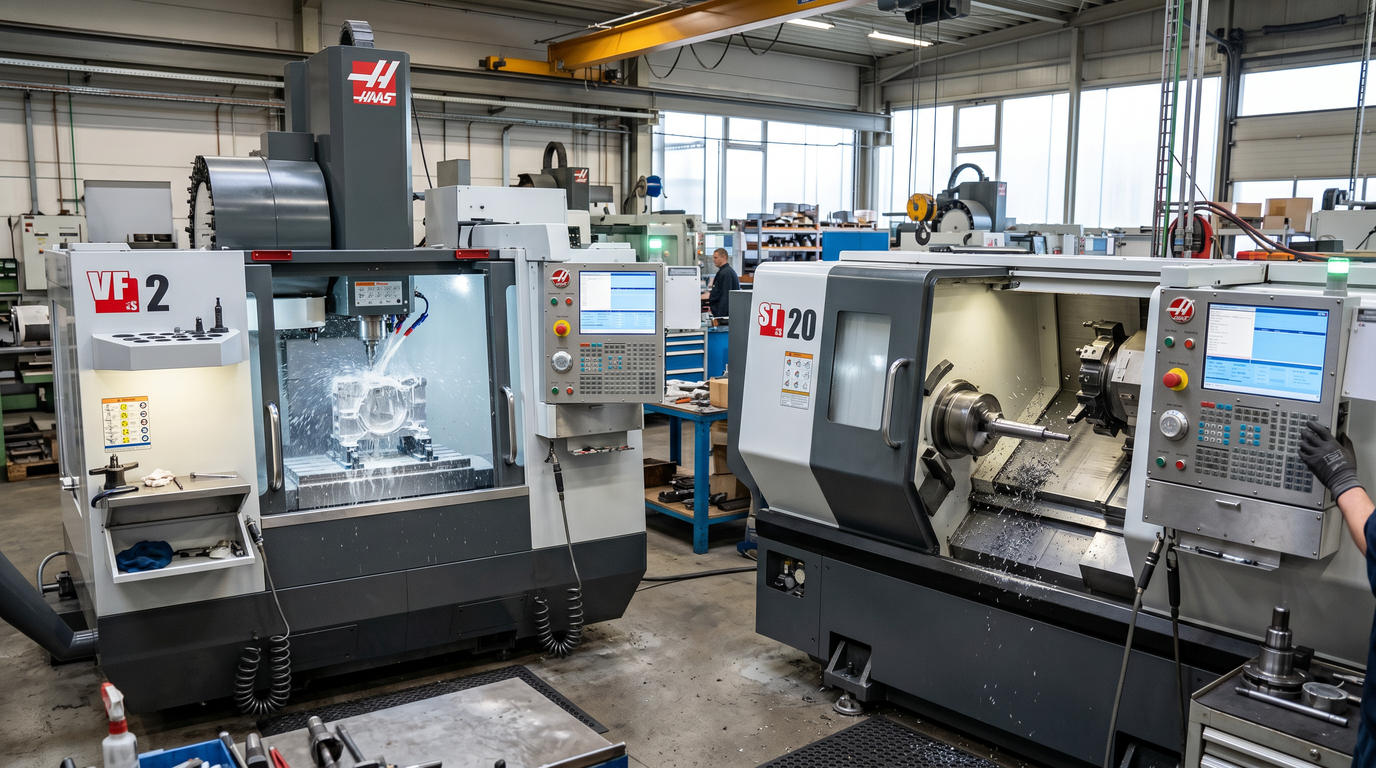

CNC Milling vs CNC Turning: Key Differences
The biggest difference between CNC milling and CNC turning is which component rotates during machining.
CNC Milling vs CNC Turning Comparison
| Feature | CNC Milling | CNC Turning |
|---|---|---|
| Primary Motion | Cutting tool rotates | Workpiece rotates |
| Part Shape | Complex geometry | Cylindrical geometry |
| Typical Components | Housings, brackets, fixtures | Shafts, bushings, pins |
| Setup Complexity | Higher | Lower |
| Production Speed | Moderate | Fast |
| Material Removal | Multiple directions | Rotational cutting |
| Cost Efficiency | Best for complex parts | Best for round parts |
| Machine Type | Milling machine | Lathe |
Understanding these differences helps engineers select the most efficient manufacturing process.

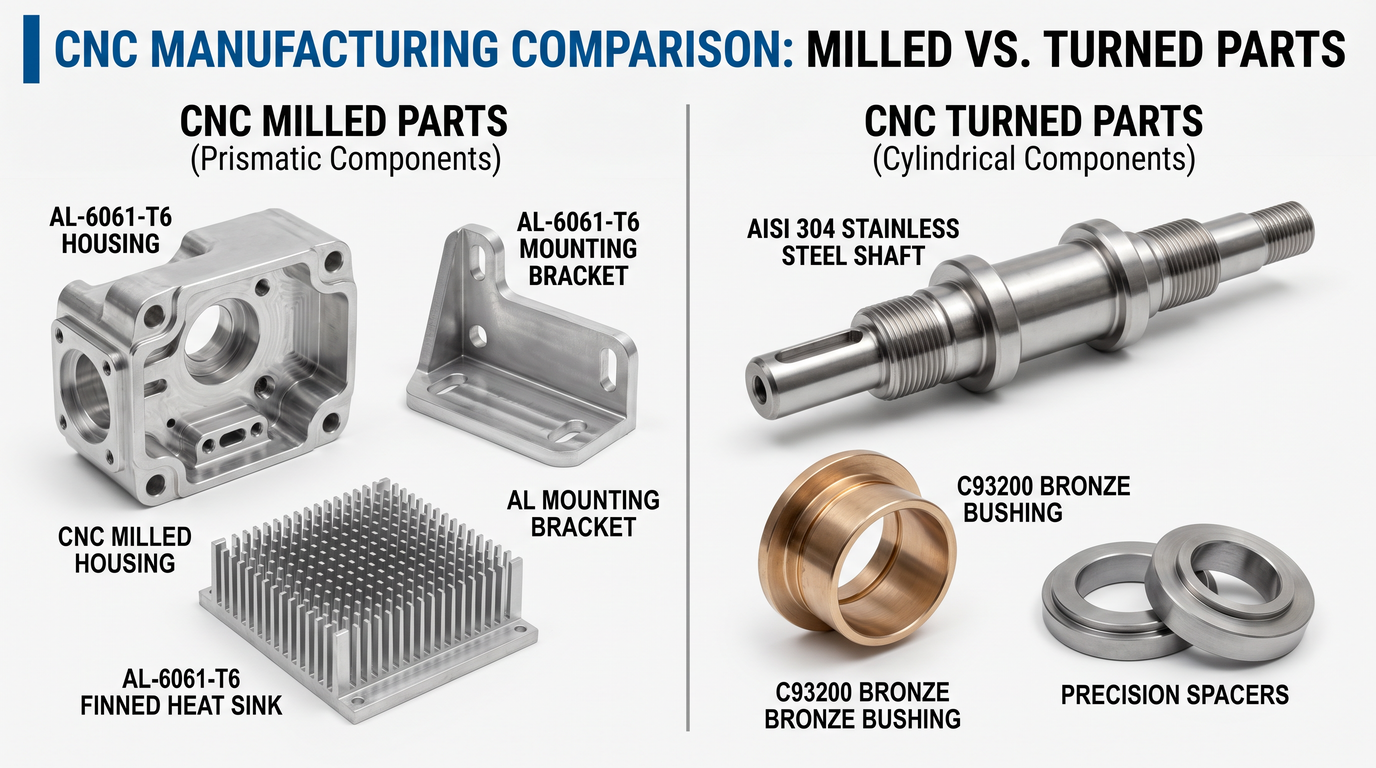

Part Geometry Comparison
When deciding between CNC milling and CNC turning, geometry is usually the most important factor.
Parts Better Suited for CNC Milling
- Electronic housings
- Mounting brackets
- Heat sinks
- Medical device components
- Aerospace structures
- Custom fixtures
These parts often require:
- Flat surfaces
- Internal pockets
- Complex contours
- Multiple machining angles
Parts Better Suited for CNC Turning
- Shafts
- Bushings
- Sleeves
- Spacers
- Rollers
- Hydraulic fittings
These parts share one characteristic:
They are rotationally symmetric around a central axis.
As a result, turning can produce them faster and more economically than milling.
Which Process Is More Accurate?
Many buyers assume one process is automatically more accurate than the other.
In reality, both CNC milling and CNC turning can achieve excellent precision when properly applied.
Typical CNC Milling Tolerances
- ±0.05 mm standard tolerance
- ±0.02 mm precision machining
- ±0.01 mm for critical features
Typical CNC Turning Tolerances
- ±0.05 mm standard tolerance
- ±0.01 mm precision tolerance
- ±0.005 mm for high-precision applications
Tolerance Comparison
| Process | Typical Tolerance |
|---|---|
| CNC Milling | ±0.05 mm to ±0.01 mm |
| CNC Turning | ±0.05 mm to ±0.005 mm |
Which Process Is More Cost-Effective?
Why CNC Turning Is Often Cheaper
- Faster cycle times
- Simpler setups
- Lower tooling costs
- Higher production efficiency
Why CNC Milling May Cost More
- Multiple setups
- Longer machining times
- More sophisticated tooling
- Additional programming
Cost Comparison by Application
| Part Type | Recommended Process |
|---|---|
| Shaft | CNC Turning |
| Bushing | CNC Turning |
| Spacer | CNC Turning |
| Housing | CNC Milling |
| Heat Sink | CNC Milling |
| Bracket | CNC Milling |
Materials Used in CNC Milling and CNC Turning
Aluminum
Common grades include:
- Aluminum 6061
- Aluminum 7075
- Aluminum 5052
Stainless Steel
- SUS304
- SUS316
- 17-4PH
Titanium
Titanium offers exceptional strength-to-weight performance and is commonly used in aerospace and medical industries.
Engineering Plastics
- POM
- PEEK
- Nylon
- PTFE
Can a Part Require Both Milling and Turning?
Absolutely.
Many precision components require both machining processes.
This is particularly common in aerospace components, medical devices, semiconductor equipment, and hydraulic systems.
For example, a part may first be CNC turned to create a cylindrical profile and then CNC milled to add flats, keyways, mounting holes, and complex features.
How Engineers Choose the Right Process
Evaluate Part Geometry
Round parts typically favor turning. Complex shapes typically favor milling.
Consider Production Quantity
High-volume production may justify specialized setups and automation.
Review Tolerance Requirements
Critical tolerances may influence process selection and machine choice.
Perform DFM Review
Design for Manufacturability (DFM) analysis helps identify opportunities to reduce cost and improve production efficiency.
How Kachi Supports Milling and Turning Projects
At Kachi Precision Manufacturing, we provide both CNC milling and CNC turning services for customers worldwide.
- 3-axis CNC milling
- 4-axis CNC milling
- 5-axis CNC milling
- Precision CNC turning
- Prototype machining
- Low-volume production
- Production manufacturing
Before quotation, our engineering team reviews every project for manufacturability, cost optimization, and process selection.
Conclusion
Understanding the difference between CNC milling vs CNC turning is essential for making informed manufacturing decisions.
CNC milling is best suited for complex geometries, pockets, contours, and multi-surface features.
CNC turning is ideal for cylindrical parts such as shafts, bushings, sleeves, and fittings.
Choosing the right machining process can improve quality, reduce machining costs, shorten lead times, and simplify production.
FAQ
Is CNC milling more expensive than CNC turning?
For most round components, CNC turning is typically more cost-effective.
What parts are best suited for CNC turning?
Shafts, bushings, spacers, sleeves, rollers, and fittings are commonly manufactured using CNC turning.
Can one part require both milling and turning?
Yes. Many precision components require turning for cylindrical features and milling for holes, flats, slots, or complex geometries.
Which process is faster?
For rotationally symmetric parts, CNC turning is usually faster.
Which process provides better accuracy?
Both CNC milling and CNC turning can achieve excellent precision.
Need Help Choosing Between CNC Milling and CNC Turning?
At Kachi Precision Manufacturing, our engineers review every design and recommend the most efficient machining process to improve manufacturability, reduce costs, and shorten lead times.
Whether you need prototype machining or production manufacturing, we provide precision CNC milling and CNC turning services for aluminum, stainless steel, titanium, and engineering plastics.
Send us your drawings today for a fast quotation and free engineering review.
