CNC Machining vs Injection Molding: When to Choose Each (2026 Guide)
If you’re developing a new product, sooner or later you’ll face this decision:
Should we CNC machine this part — or invest in injection molding?
Both processes are widely used.
Both can produce high-quality parts.
But they are designed for completely different stages of a product lifecycle.
Choosing the wrong process doesn’t just affect cost.
It can lead to:
- Delayed product launches
- Unnecessary tooling investment
- Design rework
- Supply chain instability
This guide breaks down CNC machining vs injection molding from a real engineering and sourcing perspective — so you can choose the right process at the right time.
What CNC Machining and Injection Molding Are Designed For
CNC Machining (Flexible, Low-Volume Manufacturing)
CNC machining removes material from solid blocks to create parts.
It is best suited for:
- Prototyping
- Low-volume production
- High-precision components
- Rapid design iteration
CNC is about flexibility and precision
Injection Molding (High-Volume Production)
Injection molding forms parts by injecting molten material into a mold.
It is best suited for:
- Mass production
- Plastic components
- Consistent, repeatable parts
- High-volume manufacturing
Injection molding is about scale and efficiency
Cost Comparison — The Break-Even Reality
Cost is where most decisions are made — and often misunderstood.
CNC Machining Cost Structure
- No tooling required
- Higher cost per part
- Cost increases linearly with quantity
CNC is cost-effective when:
- Quantities are low
- Designs are still changing
- Tooling investment is not justified
Injection Molding Cost Structure
- High upfront tooling cost
- Very low cost per part
- Cost drops significantly at scale
Typical mold cost:
- $3,000 – $50,000+ depending on complexity

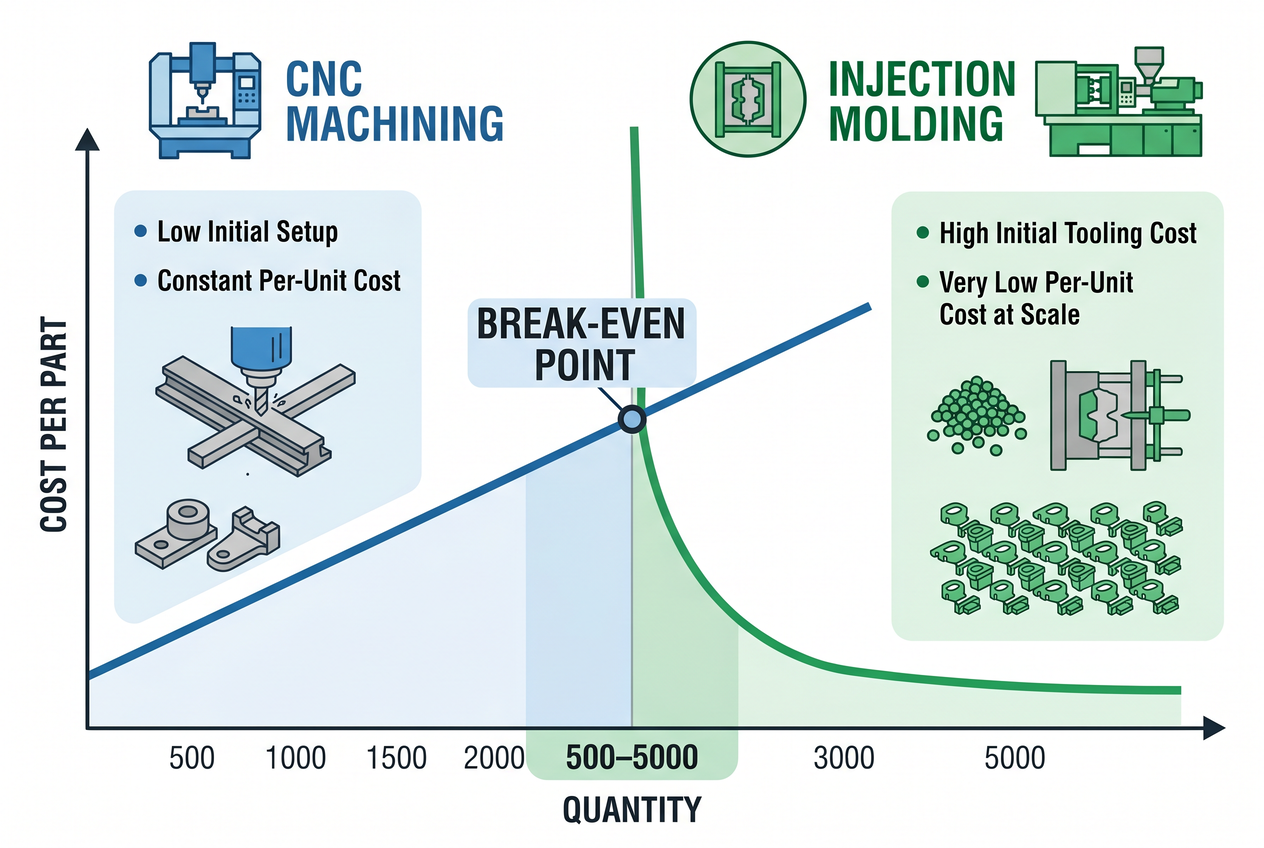

Where the Break-Even Happens
For many projects:
- 1–100 pcs → CNC machining is cheaper
- 1,000+ pcs → Injection molding becomes more economical
The mistake most companies make is switching to molding too early — before the design is stable.

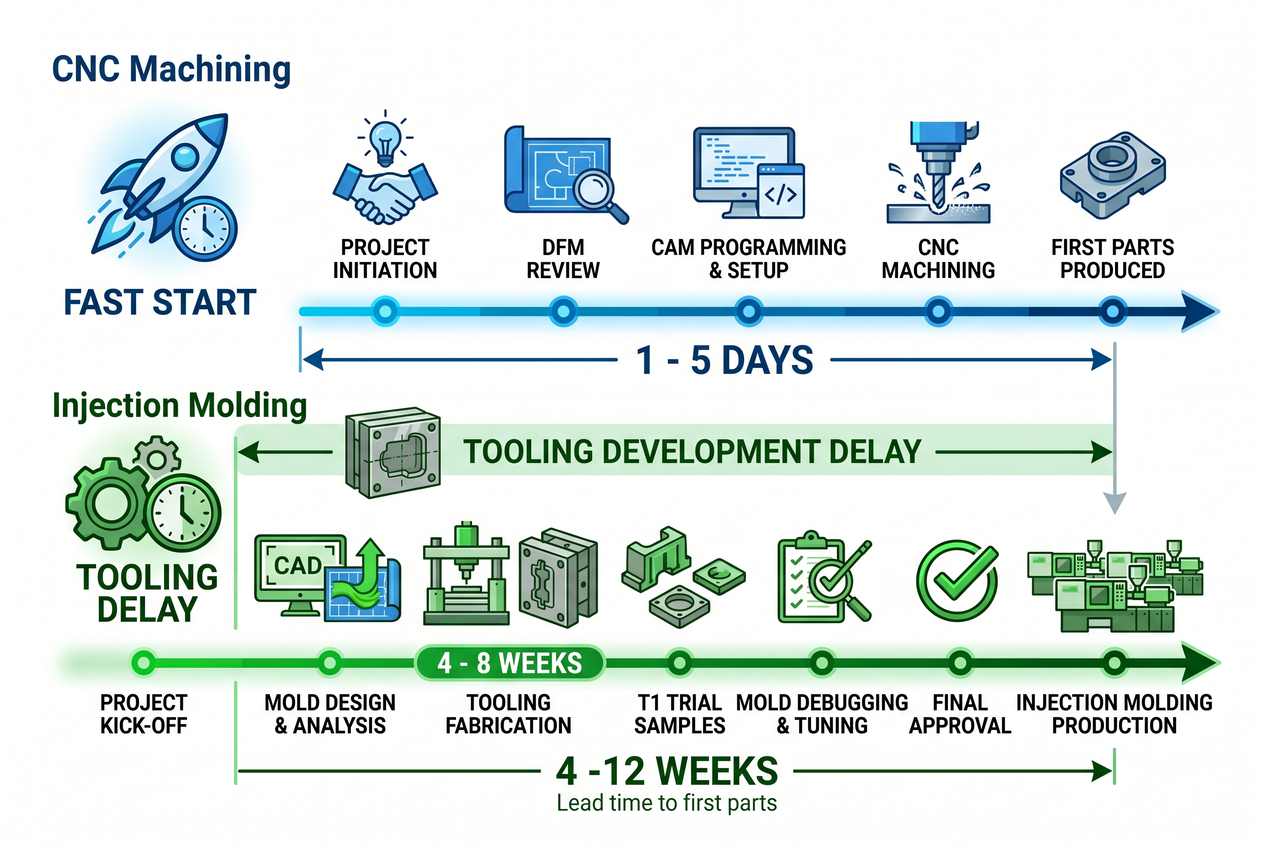

Lead Time — Speed vs Commitment
CNC Machining Lead Time
- No tooling required
- Setup is fast
- Parts can be delivered in days
Ideal for:
- Fast iteration
- Urgent projects
Injection Molding Lead Time
- Mold design required
- Tooling production takes weeks
- Debugging and sampling required
Typical timeline:
- 2–6 weeks before first parts
Engineering Insight
CNC is faster to start
Injection molding is faster to scale
Lead time is not just about the first part — it’s about total production timeline.

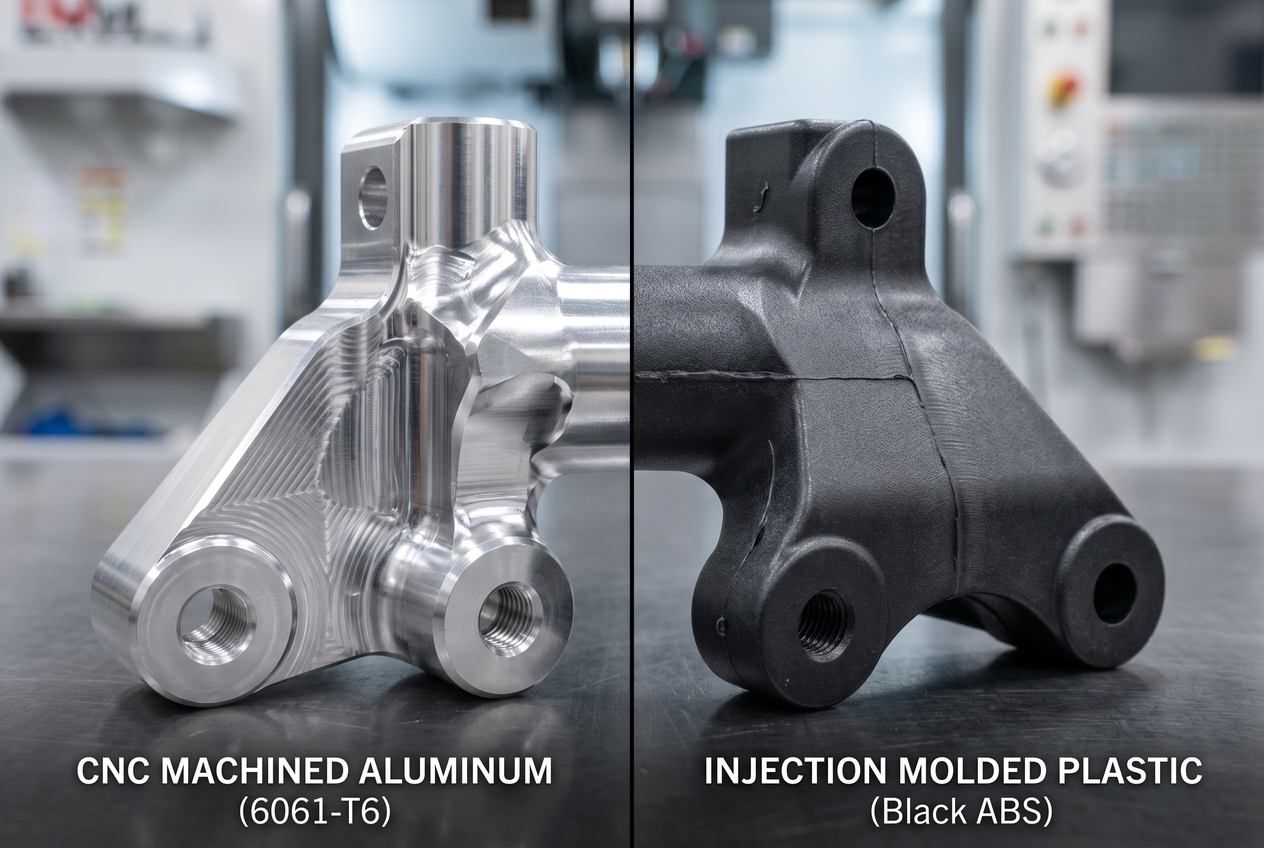

Accuracy and Surface Finish
CNC Machining
- Tight tolerances (±0.01 mm achievable)
- Excellent surface finish
- Ideal for precision components
Injection Molding
- Good dimensional consistency
- Surface finish depends on mold quality
- Limited by material shrinkage
Practical Difference
CNC is better for:
- Precision interfaces
- Mechanical assemblies
Injection molding is better for:
- Cosmetic plastic parts
- Consumer products

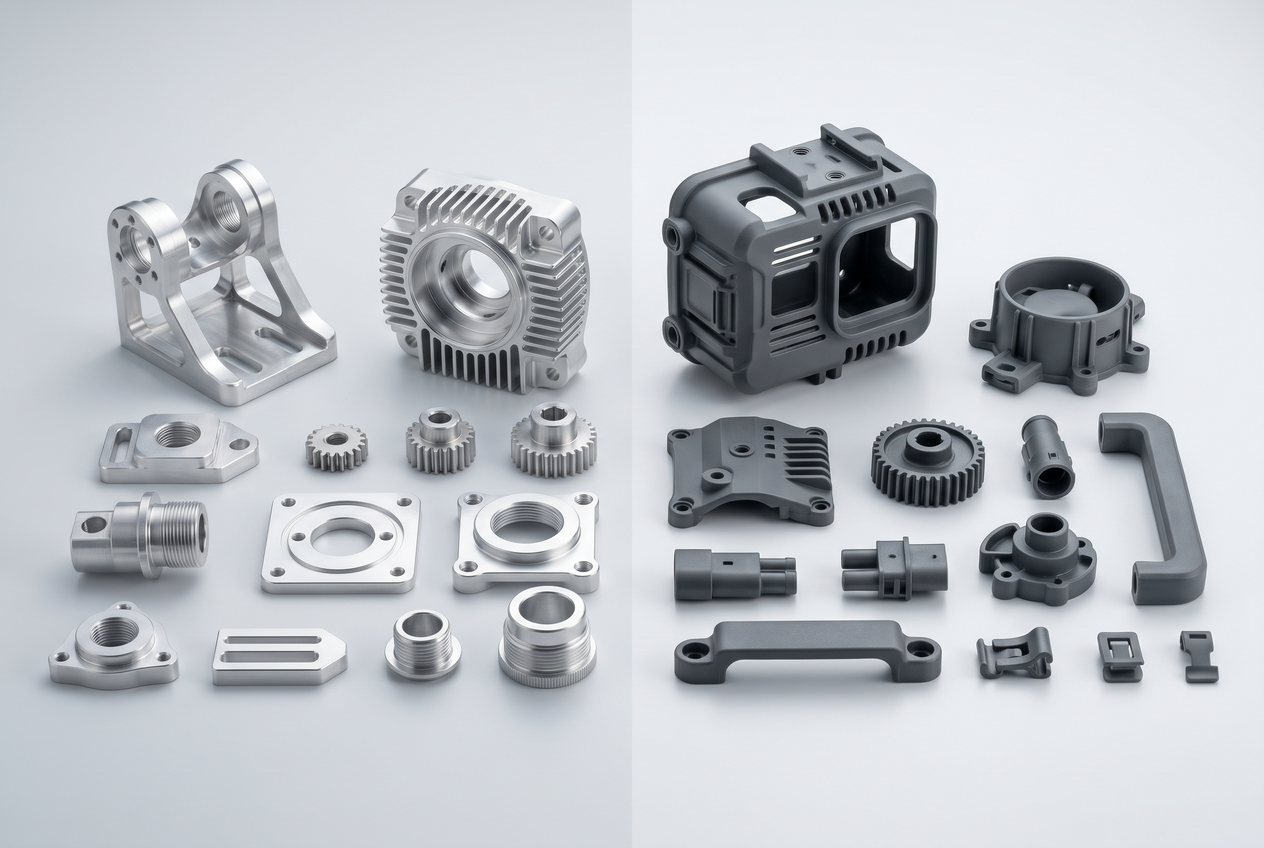

Material Differences
CNC Machining Materials
- Aluminum
- Stainless steel
- Titanium
- Engineering plastics
Injection Molding Materials
- ABS
- PP
- PC
- Nylon
- Other thermoplastics
Key Consideration
If your part requires:
- Metal
- Structural strength
- Heat resistance
Injection molding is not an option
Design Flexibility vs Design Lock-In
CNC Machining Advantage
- Easy to modify design
- No tooling constraints
- Supports rapid iteration
Injection Molding Limitation
- Design must be finalized
- Changes require mold modification
- High cost for redesign
Once you commit to a mold, design flexibility drops significantly.
Scalability — Where Injection Molding Wins
CNC Machining
- Flexible
- Not ideal for very high volume
- Cost increases with quantity
Injection Molding
- Extremely scalable
- Consistent quality
- Very low unit cost at volume
If your product is going to mass production, injection molding is usually the final step.
CNC vs Injection Molding — Quick Comparison
| Factor | CNC Machining | Injection Molding |
|---|---|---|
| Setup cost | Low | High |
| Unit cost | High | Very low |
| Lead time | Fast | Slow start |
| Accuracy | High | Moderate |
| Materials | Metal + Plastic | Plastic only |
| Design flexibility | High | Low |
| Scalability | Medium | High |
How to Choose the Right Process
Choose CNC Machining when:
- You are in prototyping stage
- Design is still evolving
- You need high precision
- Quantity is low to medium
- You want to avoid tooling risk
Choose Injection Molding when:
- Design is finalized
- Volume is high
- Unit cost matters
- Product is plastic-based
- Long-term production is confirmed
The Smart Strategy Most Teams Use
Experienced companies don’t choose one process.
They combine both.
Typical workflow:
- CNC machining → prototype and validation
- Design optimization → DFM adjustments
- Injection molding → mass production
This reduces risk while optimizing cost.
Where Kachi Precision Fits
At Kachi Precision, we support customers before they commit to expensive tooling.
We help with:
- CNC prototyping
- Low-volume production
- Design validation
- Transition planning to mass production
Our engineers identify:
- When CNC is still the better option
- When it’s time to move to molding
- How to avoid costly redesigns
Final Thoughts
CNC machining and injection molding are not competitors.
They are stages.
- CNC helps you move fast and reduce risk
- Injection molding helps you scale and reduce cost
The real mistake is not choosing the wrong one —
it’s choosing the right one at the wrong time.
If you’re deciding between CNC machining and injection molding, send your drawings to Kachi Precision.
We’ll help you choose the right process based on your design, volume, and production goals — not assumptions.
Post time: Apr-27-2026
