CNC Machining vs 3D Printing: Cost, Accuracy & Lead Time (2026 Guide)

If you’re developing a new product in 2026, one question comes up early:

Should this part be CNC machined — or 3D printed?

On paper, both processes can produce complex parts.

In practice, they solve very different problems.

Choosing the wrong one doesn’t just affect cost.

It impacts:

• Functional performance
• Development speed
• Scalability
• Long-term manufacturability

This guide breaks down CNC machining vs 3D printing from a real engineering and sourcing perspective — not theory, but what actually matters in production.

What CNC Machining and 3D Printing Are Really Good At

CNC Machining (Subtractive Manufacturing)

CNC machining removes material from a solid block to create parts.

It’s best known for:

• High precision
• Strong, production-grade materials
• Tight tolerances
• Excellent surface finish

CNC is built for accuracy and reliability

3D Printing (Additive Manufacturing)

3D printing builds parts layer by layer.

It’s ideal for:

• Complex geometries
• Rapid prototyping
• Low-cost early testing
• Internal structures impossible to machine

3D printing is built for speed and design freedom

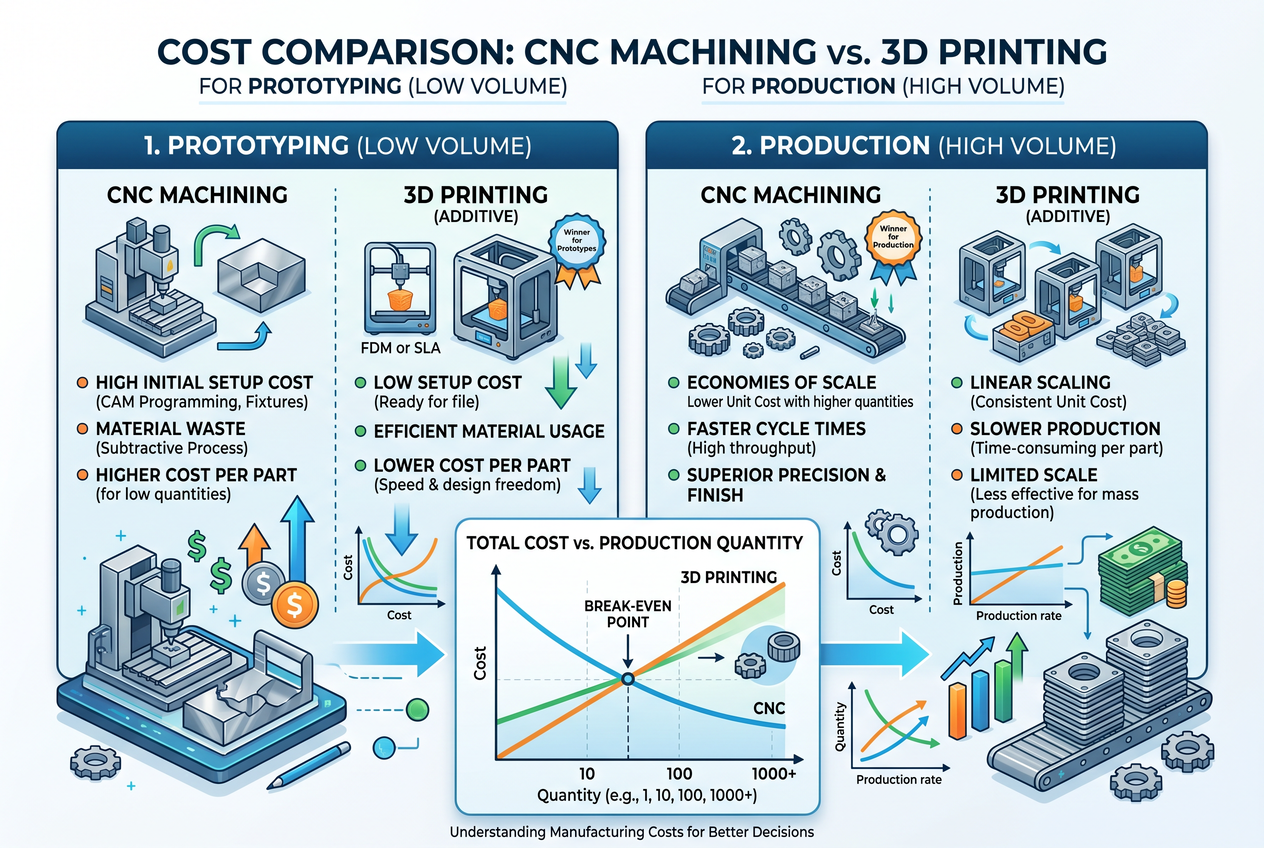

Cost Comparison — Where Each Process Wins

Cost is often the first filter, but it’s also where most decisions go wrong.

CNC Machining Cost Structure

• Higher setup cost
• Programming required
• Material waste
• Lower cost per unit at scale

CNC becomes cost-efficient when:

• Quantities increase
• Parts require tight tolerances
• Materials are standard metals

3D Printing Cost Structure

• No tooling required
• Minimal setup
• Cost per part stays relatively flat
• Expensive materials (especially industrial-grade)

3D printing is cost-effective when:

• Quantity is low (1–10 pcs)
• Design is still evolving
• Geometry is complex

Practical Cost Insight

For most projects:

• Prototype stage → 3D printing is cheaper
• Production stage → CNC machining becomes more economical

Many teams underestimate how quickly 3D printing becomes expensive as volume increases.

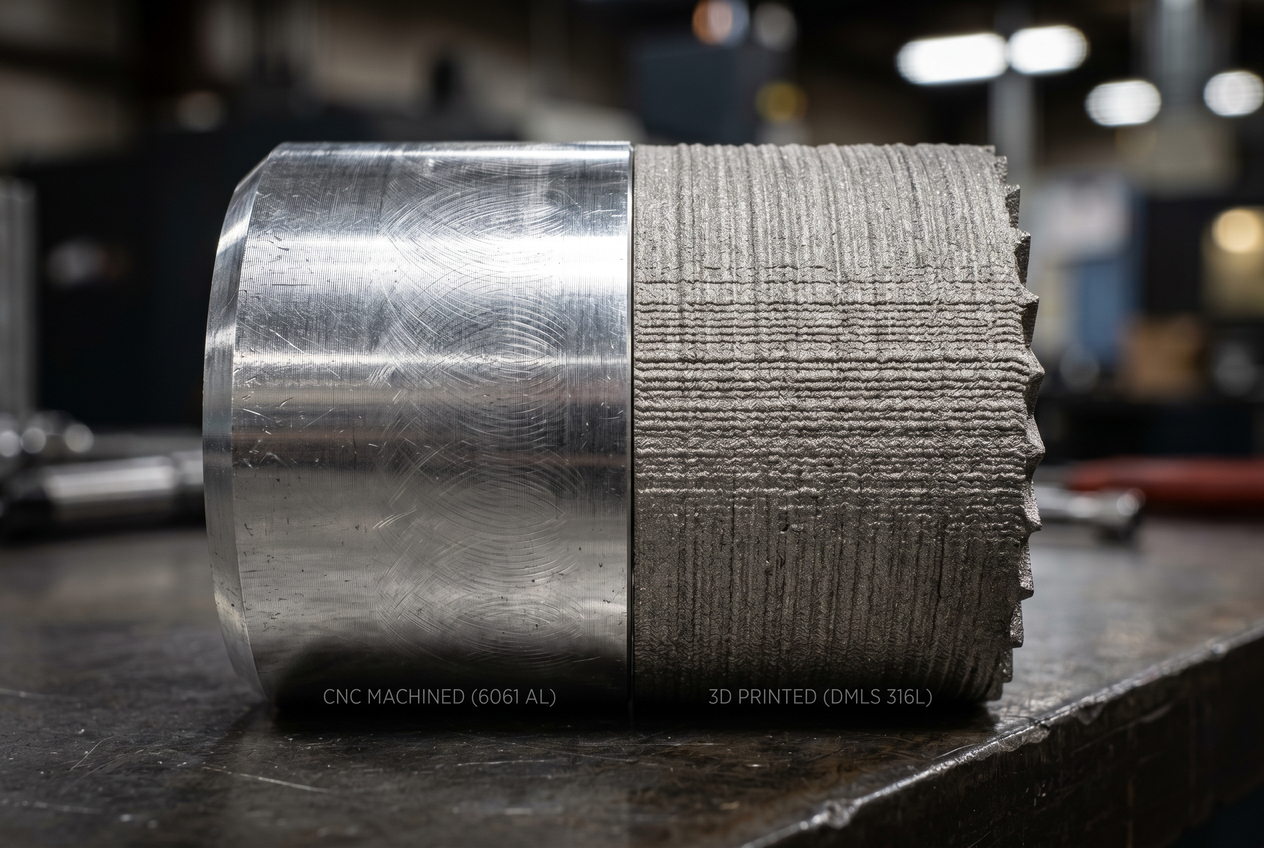

Accuracy and Tolerances — The Real Difference

This is where CNC machining clearly leads.

CNC Machining Accuracy

Typical tolerances:

• ±0.01 mm (standard)
• ±0.005 mm (precision applications)

Surface finish:

• Smooth
• Consistent
• Ready for assembly

3D Printing Accuracy

Typical tolerances:

• ±0.1 mm to ±0.3 mm (process dependent)

Limitations:

• Layer lines
• Warping
• Shrinkage variation

Engineering Reality

If your part requires:

• Tight fit
• Mechanical strength
• Assembly compatibility

CNC machining is not optional — it’s required.

Lead Time — Speed vs Stability

3D Printing Lead Time

• Extremely fast setup
• No tooling
• Parts can be produced within hours to days

Best for:

• Rapid iteration
• Concept validation

CNC Machining Lead Time

• Programming required
• Setup time needed
• Typically 3–10 days

But:

• More predictable for production
• More stable across batches

What Most Teams Miss

3D printing is faster for first parts

CNC is faster for repeat production

Speed is not just about the first unit — it’s about the full project timeline.

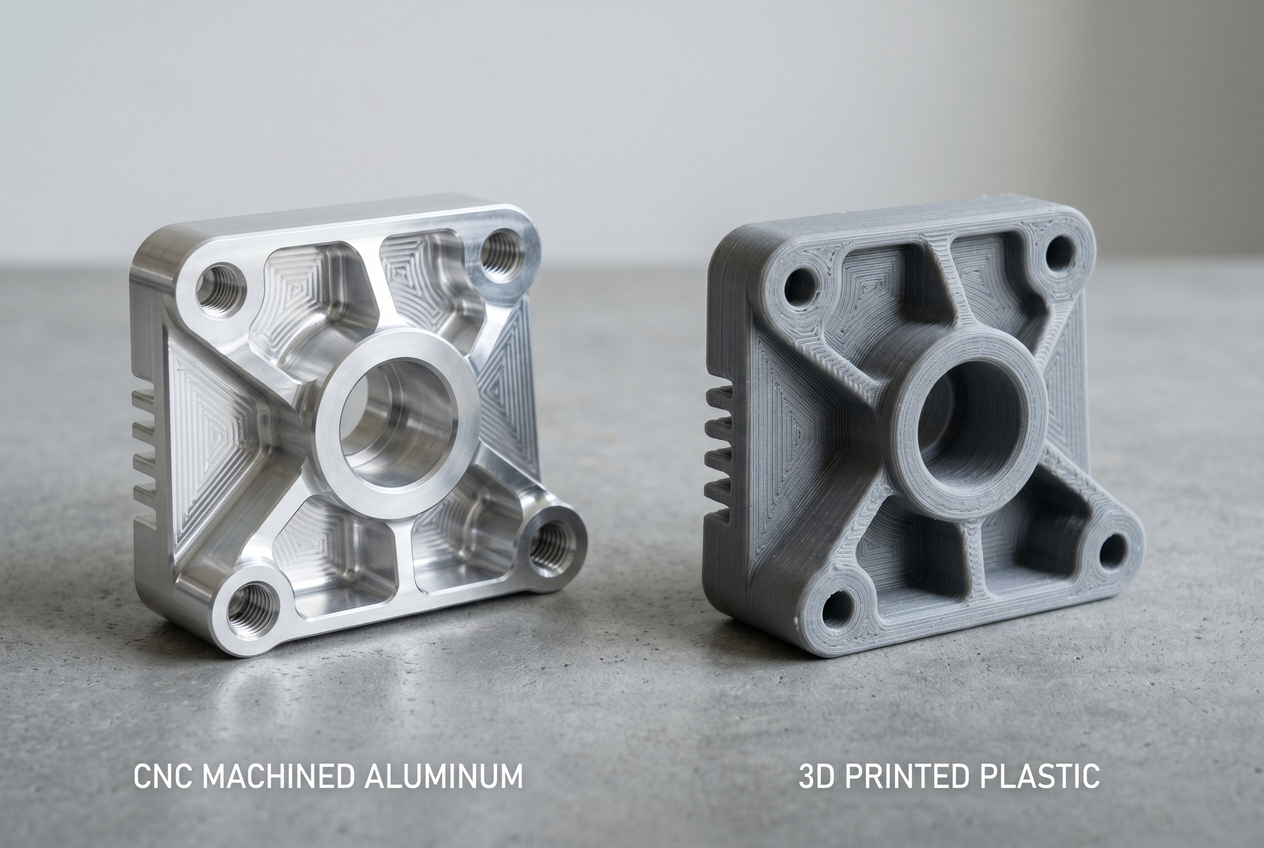

Material Performance and Strength

CNC Machining Materials

• Aluminum (6061, 7075)
• Stainless steel
• Titanium
• Engineering plastics

These materials offer:

• High strength
• Heat resistance
• Long-term durability

3D Printing Materials

• PLA / ABS (basic)
• Nylon
• Resin
• Metal (limited and expensive)

Limitations:

• Anisotropic strength (weaker between layers)
• Less predictable performance

Bottom Line

If the part is structural or load-bearing:

CNC machining is significantly more reliable

Design Freedom vs Manufacturing Reality

Where 3D Printing Wins

• Complex internal channels
• Organic shapes
• Lightweight lattice structures

Where CNC Wins

• Functional surfaces
• Precision mating features
• Tight tolerances
• Production repeatability

Smart Engineering Strategy

Use 3D printing to:

• Explore designs
• Validate concepts

Use CNC machining to:

• Finalize parts
• Prepare for production

Scalability — The Most Overlooked Factor

Most decisions focus on the first batch.

Experienced teams think about what happens next.

3D Printing Limitations

• Slow for large volumes
• Inconsistent across batches
• Difficult to scale cost-effectively

CNC Machining Advantage

• Designed for repeat production
• Better cost control at scale
• Stable quality

If your product will go to market, CNC machining is almost always part of the final solution.

CNC vs 3D Printing — Quick Comparison

How to Choose the Right Process

Choose 3D Printing if:

• You are prototyping
• Design is still changing
• Geometry is complex
• Speed matters more than precision

Choose CNC Machining if:

• You need tight tolerances
• Parts must be functional
• Materials matter
• You are moving to production

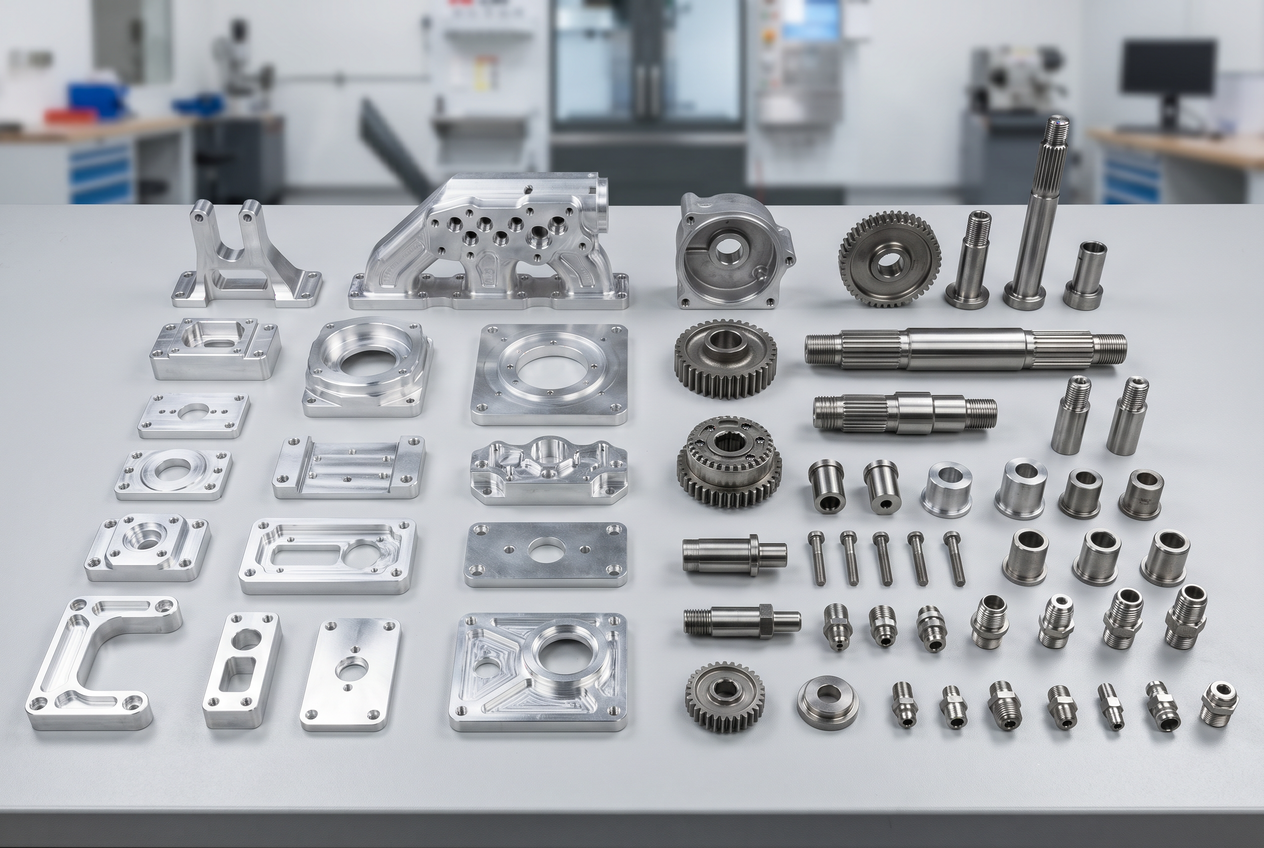

Where Kachi Precision Fits

Most customers don’t choose one process forever.

They transition.

At Kachi Precision, we support:

• CNC prototyping
• Low-volume production
• Full-scale manufacturing

We help customers move from:

concept → functional prototype → production-ready parts

Without redesign surprises.

Final Thoughts

CNC machining and 3D printing are not competitors.

They are tools for different stages.

The real mistake is using one where the other is needed.

• 3D printing helps you move fast
• CNC machining helps you scale reliably

The best results come from using both — at the right time.

Send your drawings to Kachi Precision for a machining recommendation based on your design, quantity, and production goals.

Get a quote that reflects real manufacturing — not assumptions.
