CNC Machining for Medical Devices: Tolerances, Materials & Compliance (2026 Guide)

Medical device manufacturing operates under a very different set of expectations compared to general industrial machining. Parts are not only required to meet dimensional specifications, but also to perform reliably in environments where failure is not an option.

In this context, CNC machining is not simply a fabrication method. It becomes part of a controlled system that supports product safety, regulatory compliance, and long-term consistency.

For engineers and procurement teams, the challenge is not just finding a supplier that can machine a part once. It is identifying a partner that can maintain precision, traceability, and documentation across repeated production cycles.

This guide explains how CNC machining is applied in the medical device sector, with a focus on tolerance control, material selection, and compliance requirements. It is written to help you make sourcing decisions that hold up under audit, not just under initial inspection.

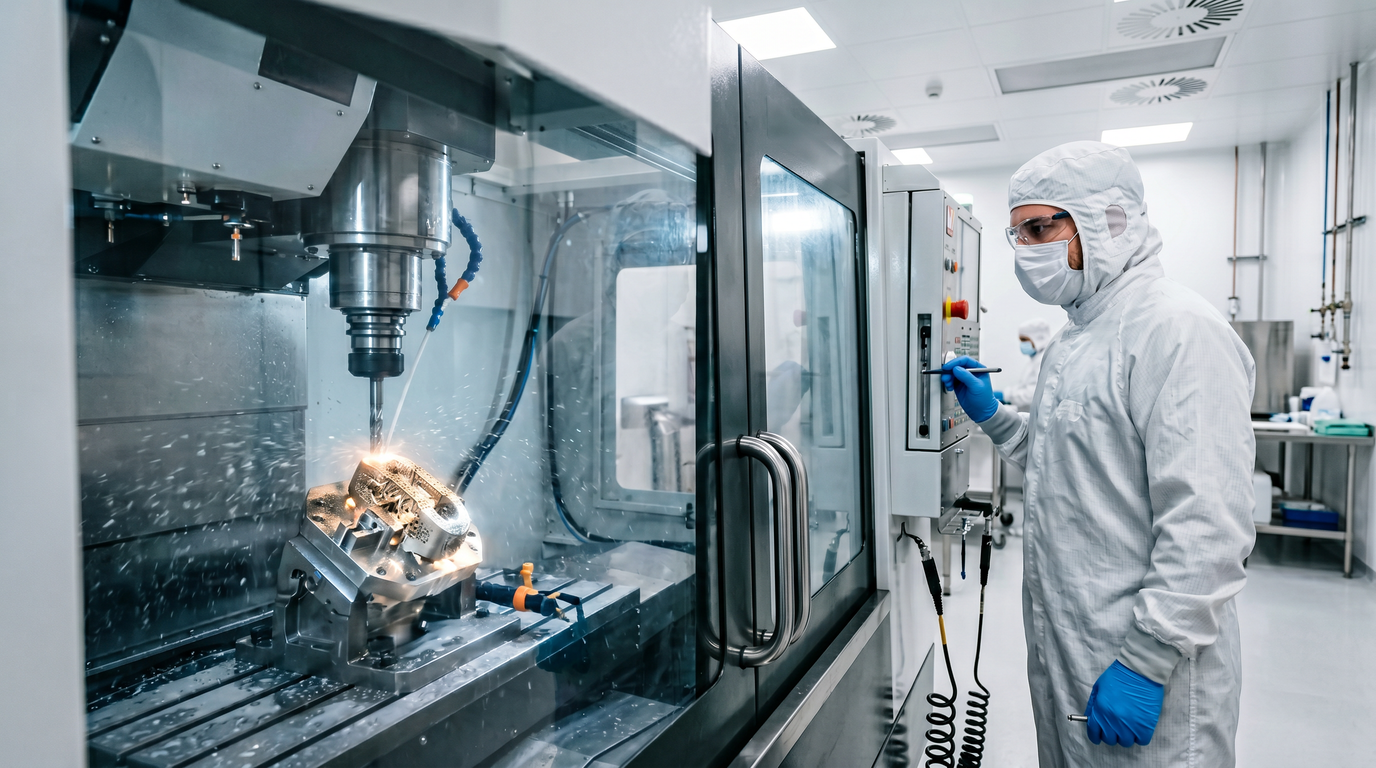

Why CNC Machining Is Widely Used in Medical Devices

Despite the availability of molding and additive manufacturing, CNC machining remains a core process in medical device production.

The reason is straightforward. CNC machining provides a level of precision and repeatability that is difficult to achieve with other methods, especially for low-to-medium volume components or parts that require tight tolerances.

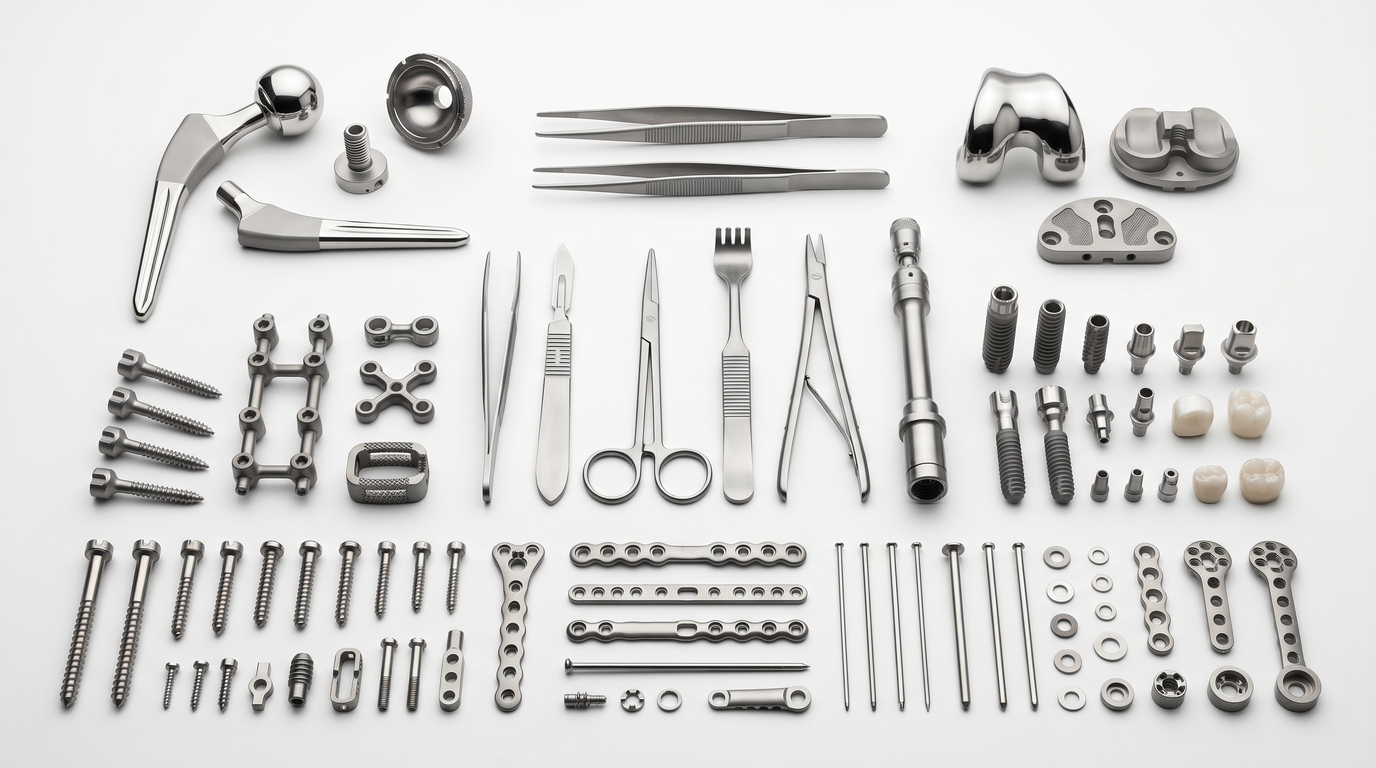

In practice, CNC machining is commonly used for:

• Surgical instruments
• Implantable components
• Orthopedic parts
• Diagnostic equipment housings
• Custom fixtures and tooling

These applications often require not only dimensional accuracy, but also consistent surface finish and material integrity.

In early-stage development, CNC machining allows rapid iteration without the need for expensive tooling. In regulated production, it provides a stable and controllable process when properly managed.

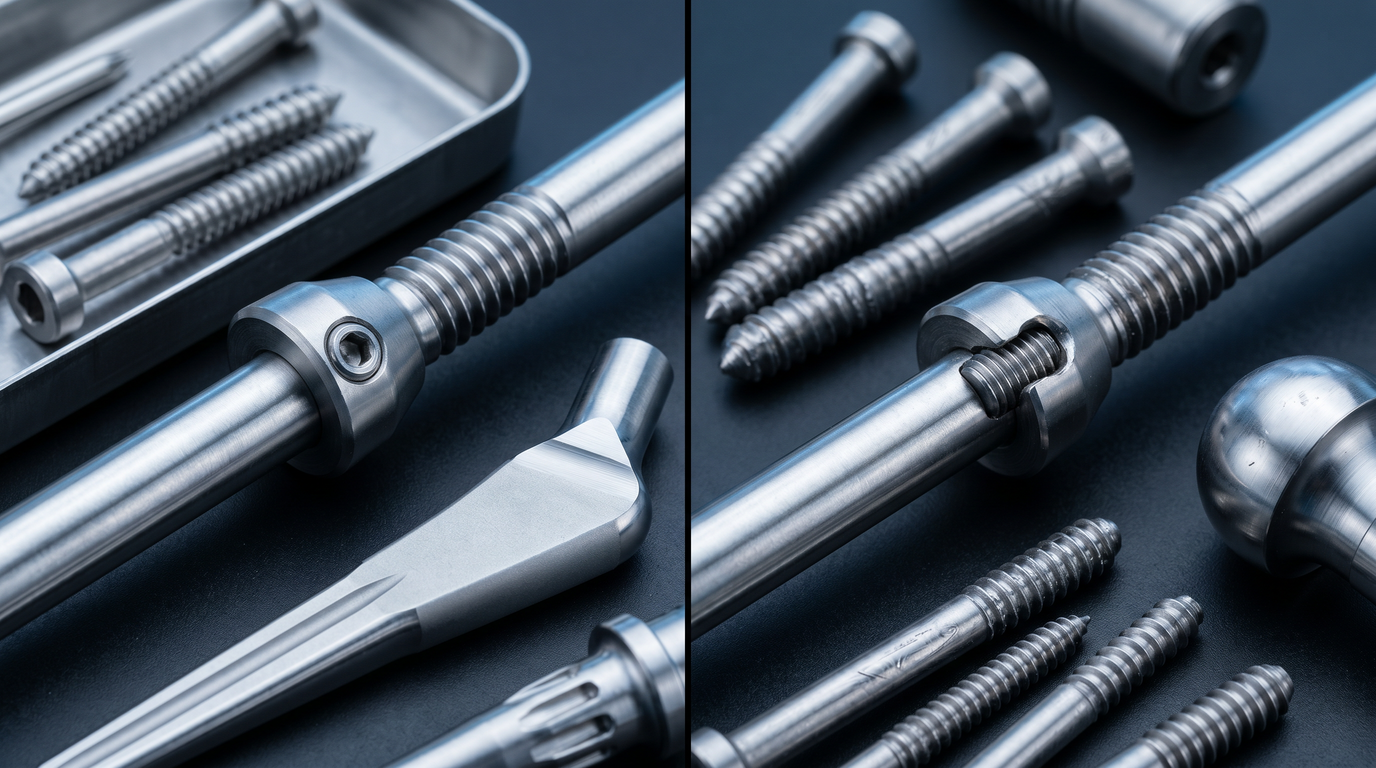

Tolerance Requirements in Medical CNC Machining

Tolerance is one of the defining factors in medical device manufacturing.

Unlike general industrial parts, medical components often require tight and consistent tolerances because they interact directly with the human body or with precision equipment.

• Standard components: ±0.05 mm
• Precision components: ±0.01 mm
• Critical features: ±0.002–0.005 mm

However, tolerance should not be applied uniformly across the entire part.

In well-engineered designs, tight tolerances are applied only to critical features, while non-critical areas are relaxed. This approach reduces machining time, simplifies inspection, and lowers cost without compromising performance.

From a manufacturing perspective, tighter tolerances introduce additional requirements:

• More stable machining conditions
• Higher precision tooling
• Increased inspection frequency
• Greater reliance on process control

This is why tolerance decisions should be made carefully. Over-specification does not improve quality; it often introduces unnecessary cost and complexity.

Material Selection for Medical CNC Machining

Material choice in medical devices is not driven by machinability alone. It is primarily determined by biocompatibility, corrosion resistance, and regulatory acceptance.

Commonly Used Materials

Stainless Steel (e.g., 316L)

Widely used for surgical instruments and implant components due to its corrosion resistance and mechanical strength.

Titanium (e.g., Ti-6Al-4V)

Preferred for implants because of its excellent biocompatibility and strength-to-weight ratio.

Aluminum Alloys

Used mainly for non-implant components such as housings and equipment parts where weight and cost are considerations.

Medical-Grade Plastics (PEEK, PTFE, UHMW-PE)

Used in applications requiring chemical resistance, low friction, or radiolucency.

What Buyers Often Overlook

Material selection affects more than performance. It also influences:

• Machining difficulty
• Tool wear
• Surface finish
• Lead time

For example, titanium offers excellent performance but is significantly more difficult to machine, which increases cost and production time.

Surface Finish and Its Functional Role

In medical devices, surface finish is not purely cosmetic. It directly impacts performance and safety.

• Smooth surfaces to reduce bacterial adhesion
• Controlled roughness for implant integration
• Polished finishes for ease of cleaning and sterilization

Surface finish is typically specified using Ra values and may involve secondary processes such as polishing, passivation, or anodizing.

From a manufacturing perspective, achieving consistent surface finish requires careful control of machining parameters and post-processing steps.

Compliance and Regulatory Requirements

Compliance is one of the most critical aspects of medical CNC machining.

Producing a dimensionally correct part is not sufficient. The entire manufacturing process must be documented, controlled, and traceable.

Key Standards

ISO 13485

Defines quality management systems specific to medical devices, including documentation, traceability, and risk management.

ISO 9001

Provides a general framework for quality management, often used as a baseline.

FDA (for U.S. market)

Requires process validation, documentation, and adherence to quality system regulations.

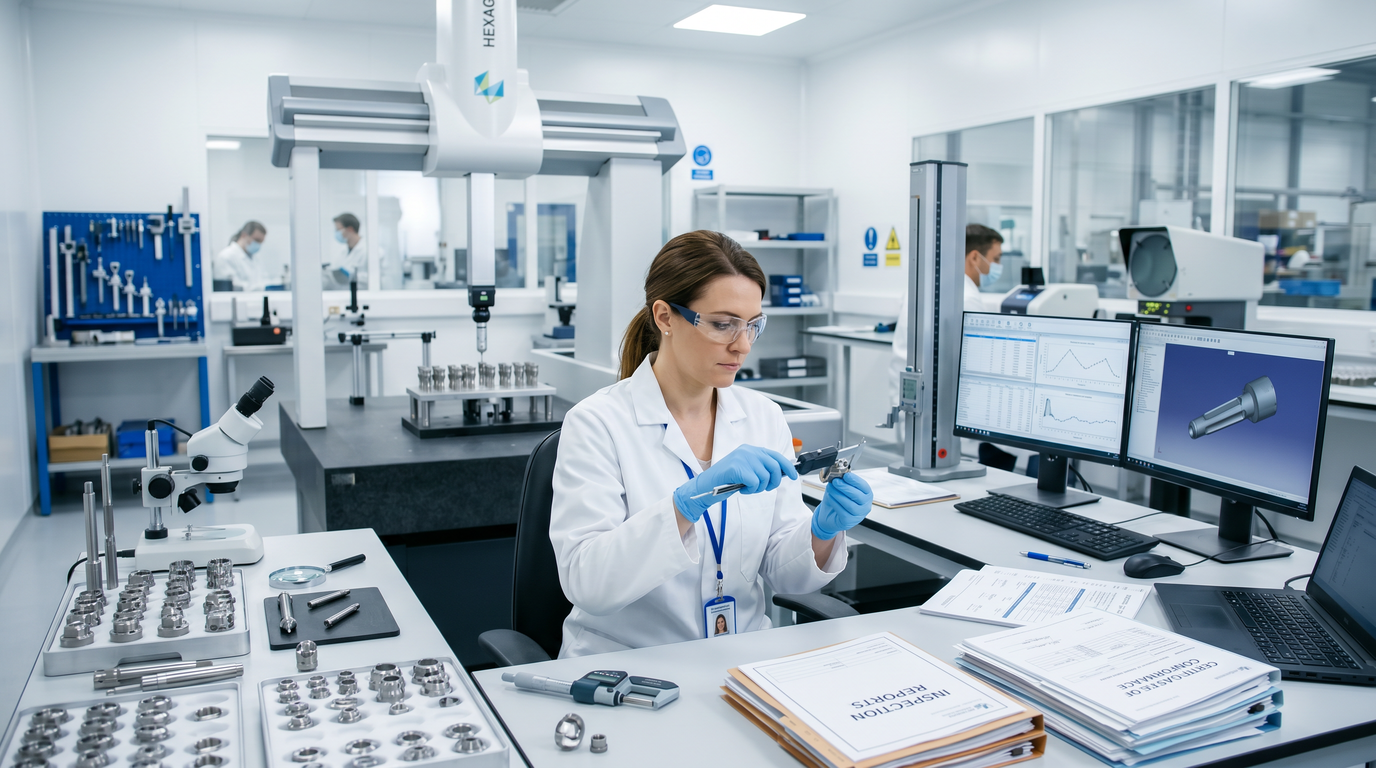

What Compliance Means in Practice

For CNC machining suppliers, compliance involves:

• Material traceability
• Controlled documentation and revision management
• Inspection records and reports
• Process consistency across batches

A supplier without structured systems may still produce acceptable parts, but those parts may not pass regulatory or audit requirements.

Risk Factors in Medical CNC Sourcing

Many sourcing failures in medical projects are not caused by machining capability, but by gaps in process control.

• Inconsistent batch quality
• Lack of traceability
• Poor documentation
• Uncontrolled subcontracting
• Limited understanding of regulatory requirements

What Engineers and Buyers Should Evaluate

Selecting a CNC supplier for medical devices requires a broader evaluation than typical industrial sourcing.

• Ability to maintain tight tolerances consistently
• Experience with medical-grade materials
• Understanding of compliance requirements
• Quality system maturity
• Communication between engineering teams

Why Buyers Choose Kachi Precision

For medical projects, consistency and traceability are as important as machining capability.

At Kachi Precision Manufacturing, the focus is on controlled processes rather than isolated results.

• Engineering-led RFQ evaluation
• Early identification of manufacturability risks
• Stable machining processes for tight tolerances
• Structured quality systems aligned with ISO standards
• Full traceability of materials and production

Conclusion

CNC machining for medical devices is not defined solely by precision. It is defined by the combination of tolerance control, material selection, and regulatory compliance.

Understanding how these factors interact allows engineers and procurement teams to make better decisions, reduce risk, and ensure long-term reliability.

The most successful projects are those where design, manufacturing, and compliance are aligned from the beginning.
