CNC Machining Drawing Requirements: What Suppliers Really Need

Accurate and complete engineering drawings are the foundation of successful CNC machining. Whether you’re sourcing prototypes or full-scale production parts, the clarity of your drawings directly affects:

• Quoting accuracy
• Manufacturing lead times
• Part quality and consistency
• Supplier responsiveness

At Kachi CNC Machining, we’ve reviewed thousands of drawings for global OEM clients. In many cases, delays or revised quotations are not caused by machining complexity — but by missing or unclear drawing information.

This article explains the real CNC machining drawing requirements suppliers expect, helping engineers and procurement teams reduce risk and accelerate sourcing.

Why CNC Drawings Still Matter in a CAD-Driven World

Although 3D CAD models are essential for modern product development, 2D drawings remain the authoritative manufacturing reference in precision CNC machining.

Drawings:

• Define functional tolerances
• Specify critical dimensions
• Indicate surface finish requirements
• Clarify stack-up conditions
• Provide fabrication notes

A 3D model shows geometry.
A drawing communicates manufacturing intent.

Professional CNC machining suppliers rely on detailed drawings to prepare accurate quotes and production plans. Missing or ambiguous data often leads to increased costs, extended lead times, and unnecessary manufacturing risks.

Essential Drawing Elements CNC Suppliers Need

Below are the most critical drawing elements that directly impact accurate quoting and smooth production.

1. Clear Part Geometry and Views

Your drawing should include:

• Multiple orthographic views
• Cross-sections for hidden features
• Detailed views for complex areas

Without these views, machinists cannot properly evaluate tool accessibility, fixturing requirements, or machining strategies.

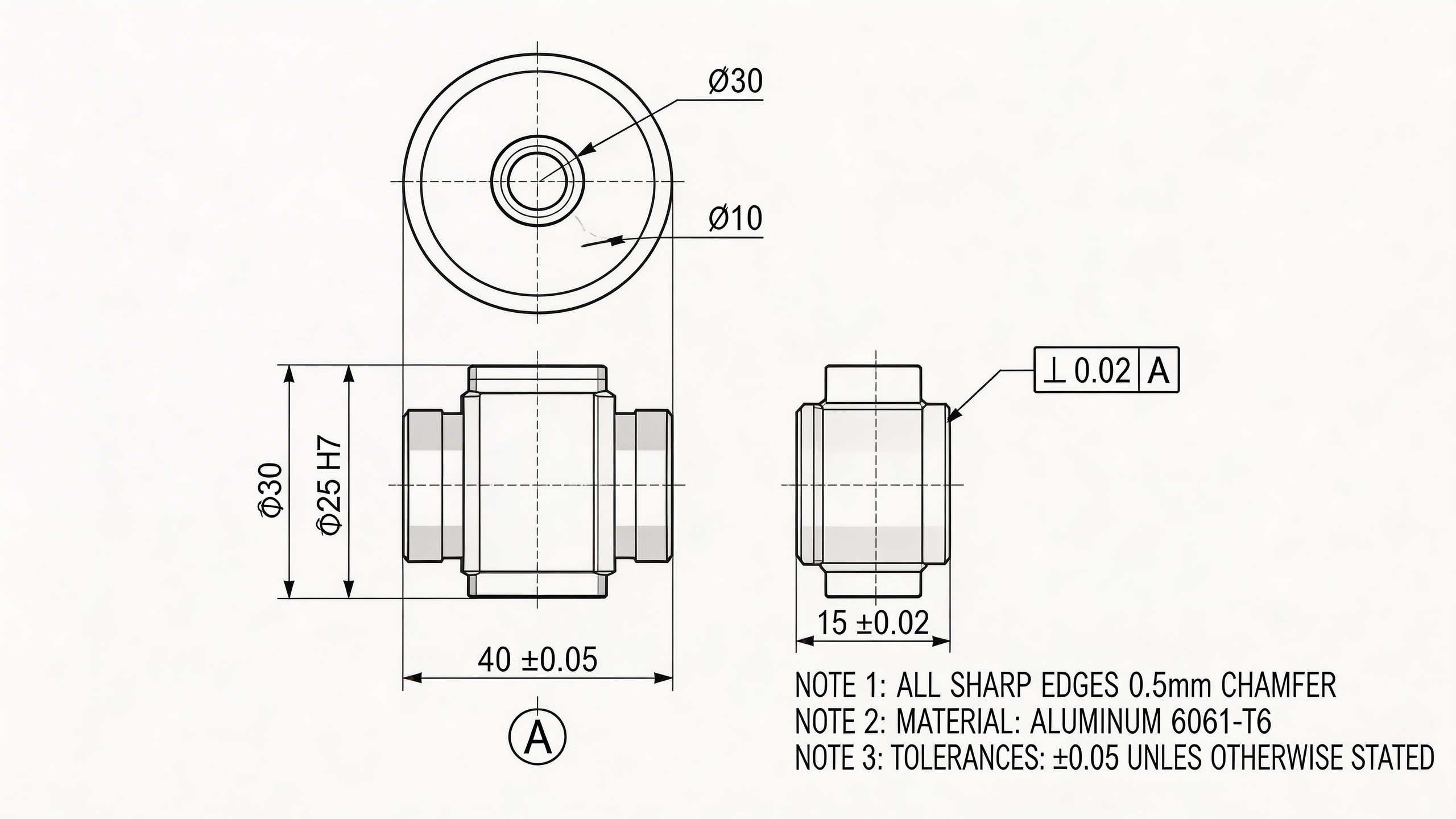

2. Complete Dimensioning and Tolerancing

Dimensions must be:

• Clear and unambiguous
• Functionally relevant
• Fully defined

Suppliers expect:

• Critical dimensions with tolerances
• Accurate hole callouts
• GD&T where necessary

At Kachi CNC Machining, unclear tolerances are one of the most common causes of RFQ communication delays. Proper GD&T usage significantly reduces interpretation risk.

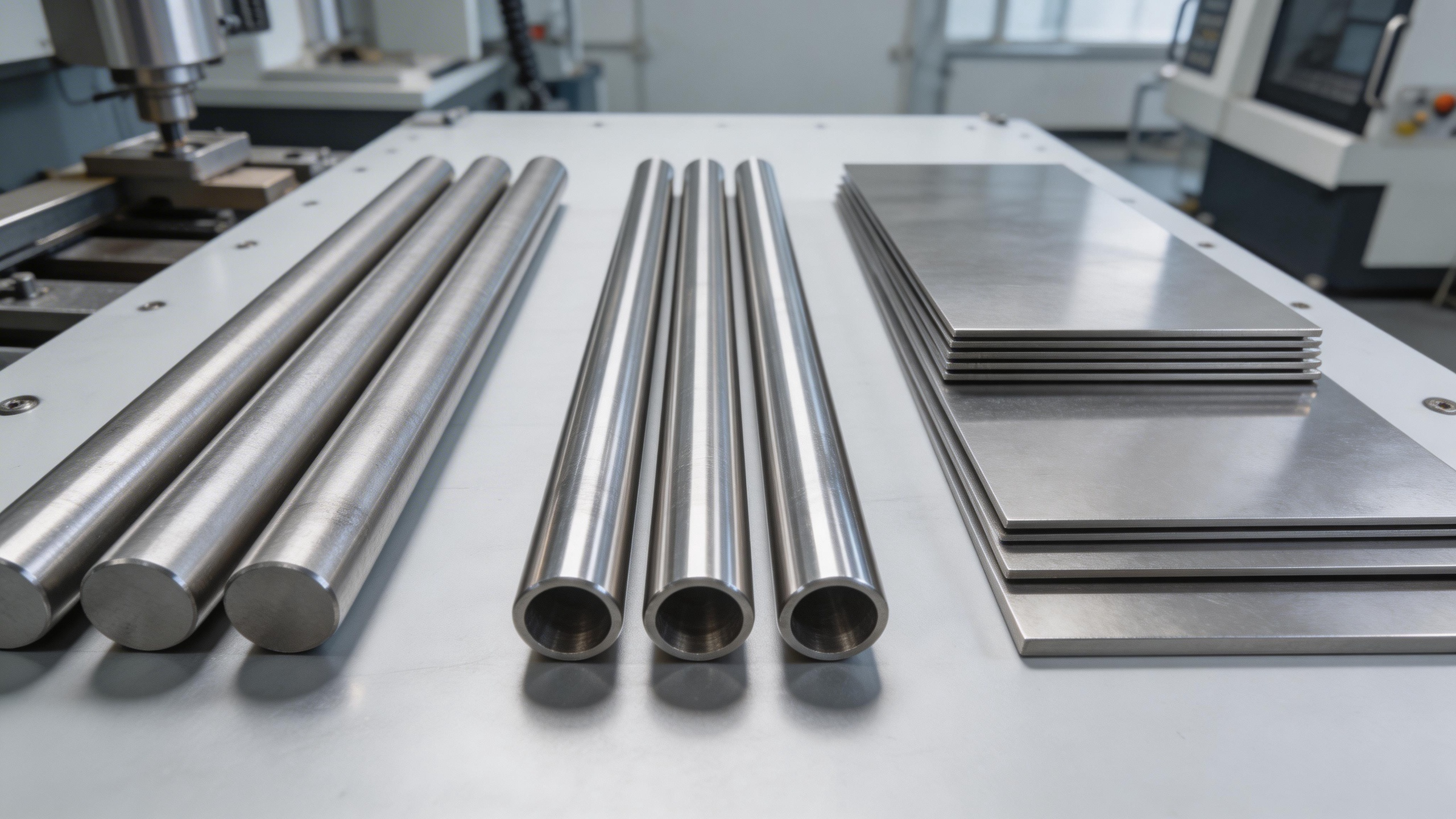

3. Precise Material Specifications

Simply writing “steel” or “aluminum” is insufficient for accurate CNC machining quoting.

Your drawing should specify:

• Exact alloy or grade (e.g., 6061-T6, AISI 304, 4140)
• Heat treatment requirements
• Hardness range
• Plating or coating specifications

Material selection directly influences tool wear, machining speed, cycle time, and inspection strategy.

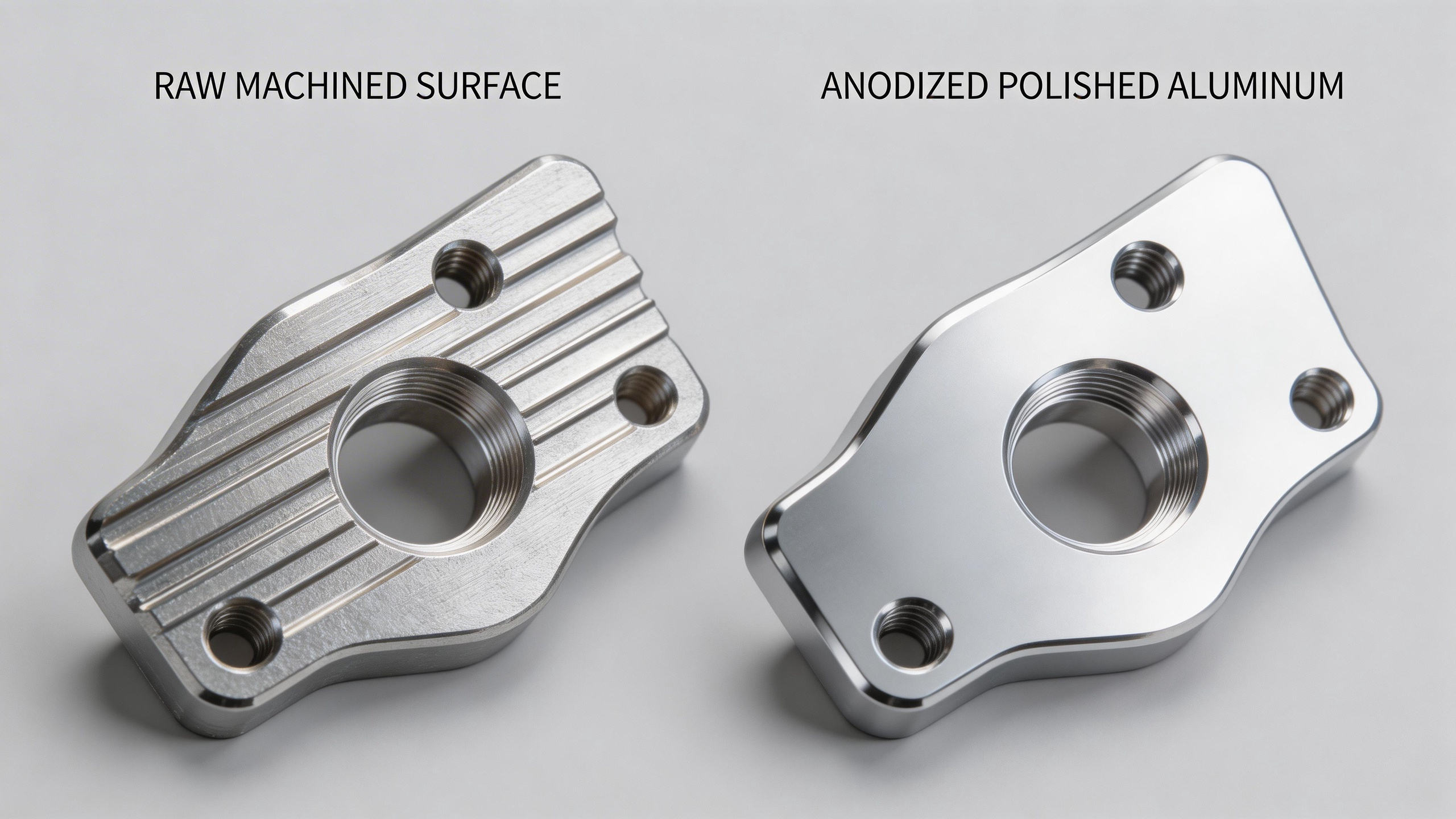

4. Surface Finish Requirements

Surface finish symbols should be included wherever functional or aesthetic requirements demand them.

• Ra values for functional surfaces
• Machining marks vs secondary finishing
• Anodizing, plating, passivation, or polishing notes

Surface finish directly affects machining strategy and cost. Missing finish requirements often cause quote revisions.

5. Thread and Fastener Details

Threads must include:

• Thread type (Metric, UNF, UNC)
• Thread class
• Thread depth
• Fit class
• Helix direction when necessary

Incomplete thread specifications are a frequent issue discovered during CNC drawing reviews.

6. Datum References and GD&T

When parts require precise positioning, GD&T should define:

• Primary, secondary, and tertiary datums
• Position tolerance zones
• Flatness, parallelism, and perpendicularity

Without datums, machining teams may need to make assumptions that increase both cost and manufacturing risk.

7. Secondary Operations

Clearly specify additional processes:

• Deburring
• Heat treatment
• Anodizing or plating
• Welding or brazing
• Laser marking

Secondary operations significantly influence production cost and scheduling.

8. Bill of Materials (BOM) and Assembly Notes

For assemblies, include:

• Complete BOM
• Subcomponent references
• Revision history
• Assembly instructions

This prevents incorrect assumptions during CNC machining quotation.

How Missing Drawing Data Increases Cost and Lead Time

When drawings lack critical information, CNC machining suppliers must:

• Request clarification
• Assume conservative tolerances
• Estimate missing processes
• Plan worst-case machining scenarios

This often results in longer RFQ cycles, higher protective pricing, and production uncertainty.

Best Practices to Improve Your CNC Drawings

Provide Both 2D and 3D Files

• Fully annotated 2D drawings
• STEP / IGES / native CAD models

This eliminates interpretation gaps and speeds up quoting.

Use Standard Drawing Templates

• Title block
• Revision history
• Material callouts
• Scale and units

Standardization reduces missing data and improves supplier efficiency.

Collaborate Early with Your CNC Supplier

At Kachi CNC Machining, our engineering team provides early-stage DFM (Design for Manufacturability) feedback to help customers:

• Optimize tolerances
• Reduce machining complexity
• Improve cost efficiency
• Minimize production risk

Early collaboration prevents costly redesign later.

Real-World CNC Drawing Checklist

• ✔ Multiple orthographic and section views
• ✔ Complete dimensions with GD&T
• ✔ Material grade and heat treatment
• ✔ Surface finish callouts
• ✔ Thread specifications
• ✔ Secondary operations
• ✔ BOM and assembly notes
• ✔ Revision history

Final Thoughts

CNC machining drawings are more than technical documents — they are the communication bridge between engineering design and manufacturing execution.

Well-prepared drawings lead to faster quotes, reduced production risk, higher first-pass yield, and more predictable lead times.
